Kona Ouroboros CR/DL (36e) Gravel Bicycle

Home / Kona Ouroboros CR/DL (36e) Gravel Bicycle

Availability:

In stock (1)

Ouroboros

An Ye Harm None, Do What Ye Will

The Ouroboros is an all-new platform from the unbound minds at Kona. We bring you three builds– each meant for its own incredibly rowdy ride to the ends of the earth and back. Pack it expertly for the long haul, nimbly explore the edges of singletrack, or complete multiple days of the most wonderfully weird and delightfully chaotic of events. While other gravel bikes may technically tolerate mountain bike components, the Ouroboros is intentionally designed around the rowdy stuff – like 180mm rotors, 2.1 tire clearance, and front suspension, giving you a ride feel that is otherworldly and almost mistakable for a modern trail bike.

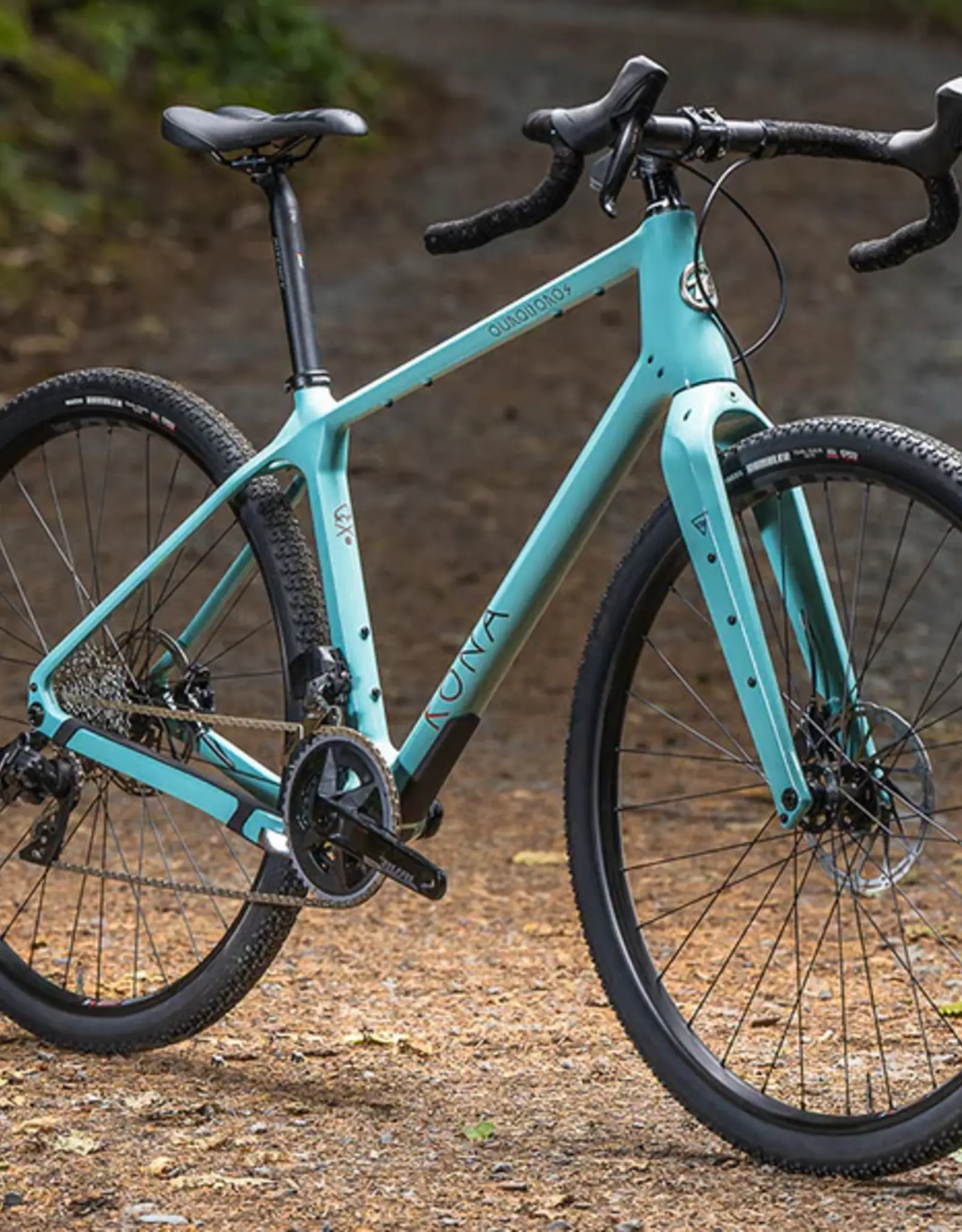

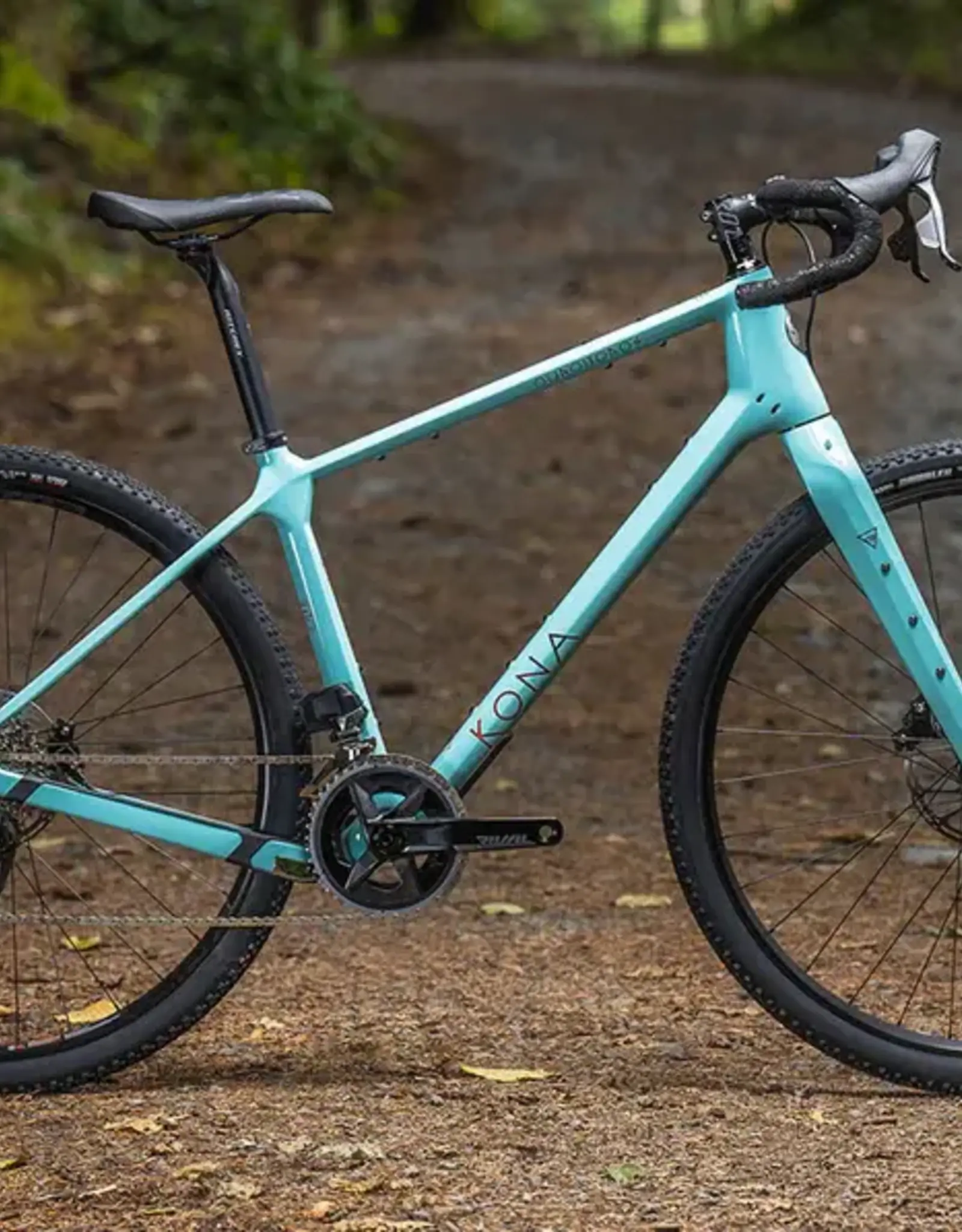

The Ouroboros Carbon Deluxe

An absolutely stunning gravel bike for those who seek a more traditional look and feel. This creation prioritizes lightweight features and adheres to the sacred and long-established characteristics of a drop bar bike. We’ve thoughtfully spec’d gear steps that are closer together to help you maintain your ideal cadence. With that sweet spot so easy to find, you won’t lose your rhythm – no matter your load or speed.

Specifications

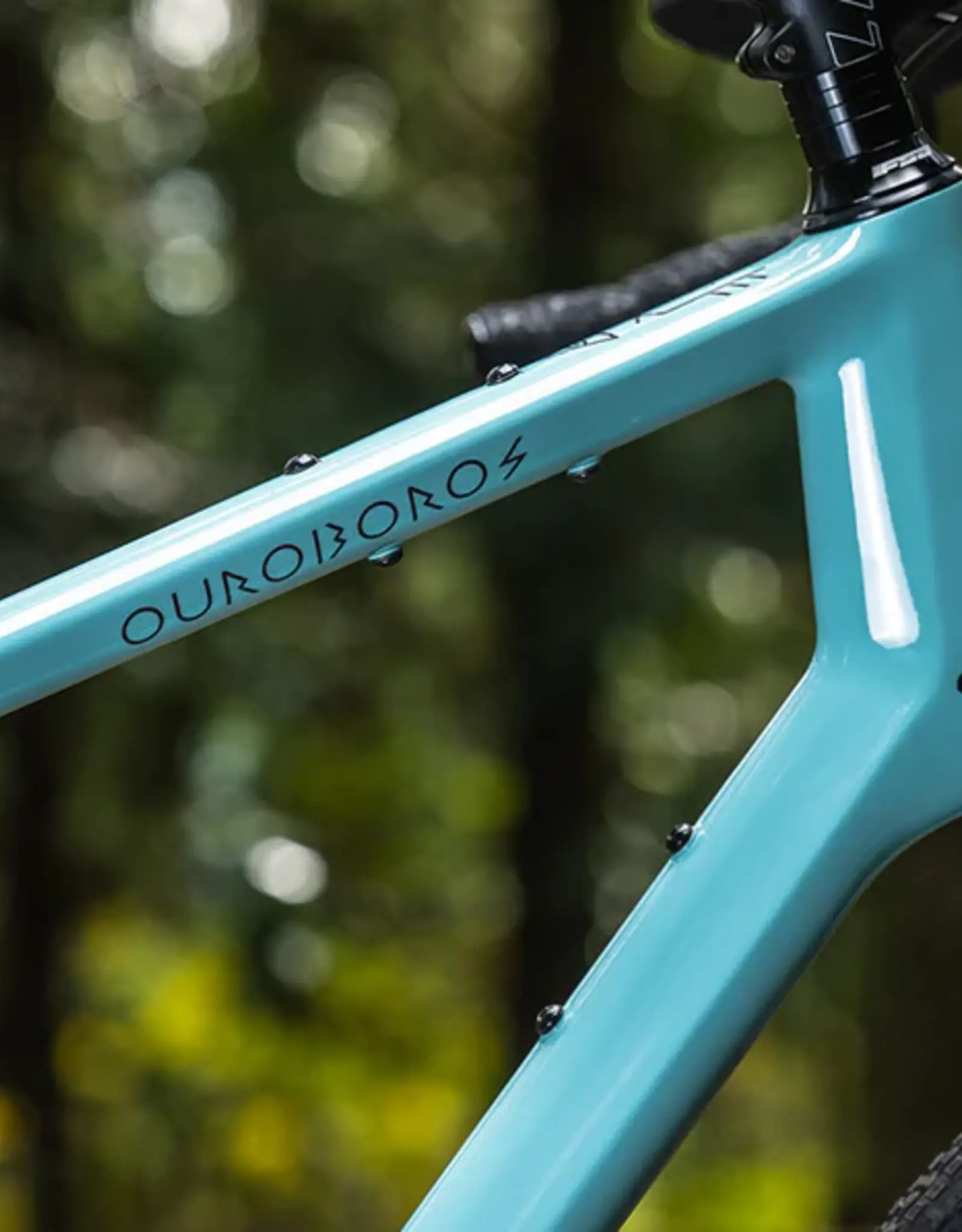

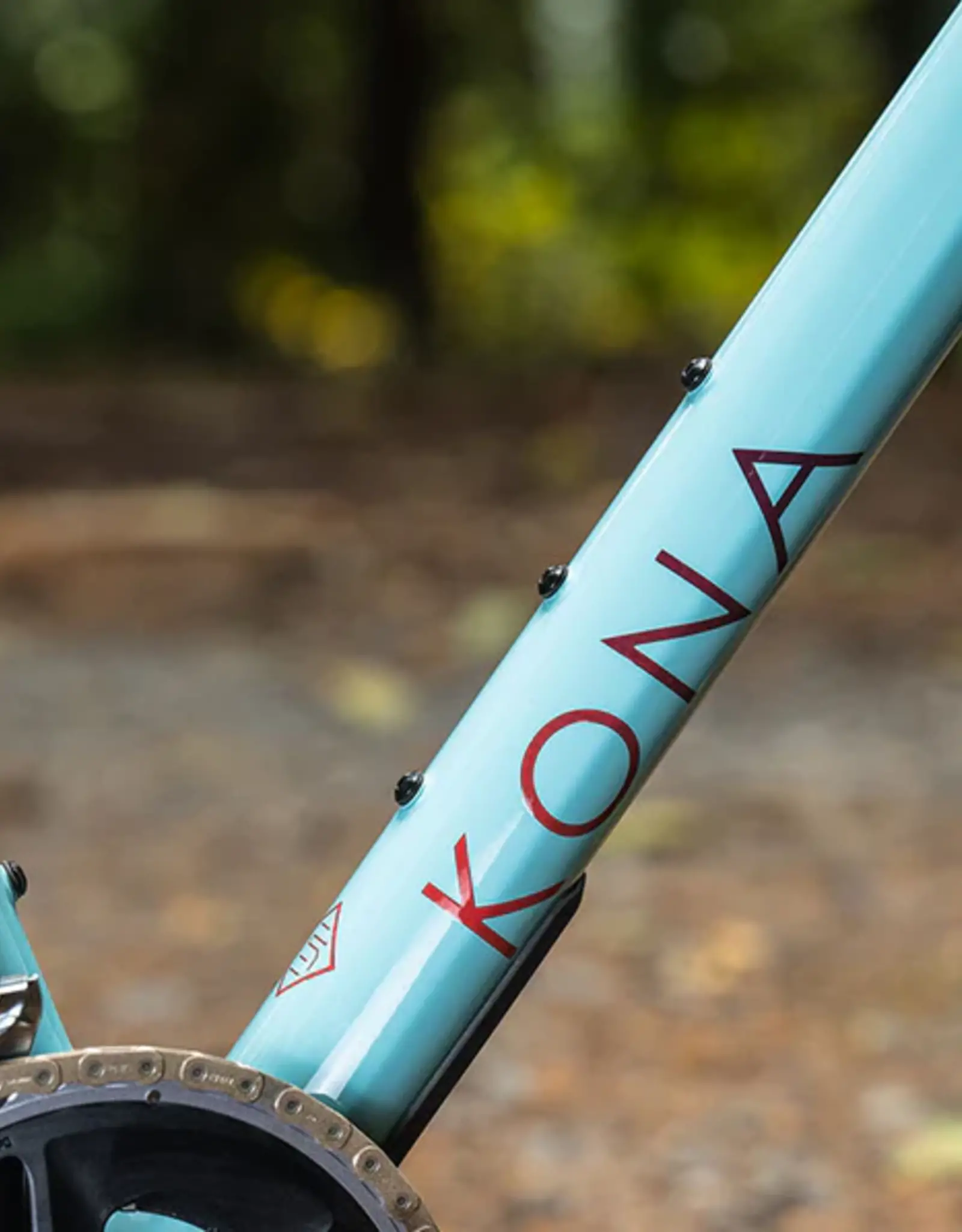

Frame Material	Kona Carbon
Sizes	48, 50, 52, 54, 56, 58
Rear Shock	n/a
Fork	Kona Libre Carbon Flat Mount Disc
Crankarms	SRAM Apex 1 DUB Wide
Chainrings	42t X-Sync
B/B	SRAM PF86.5 DUB Road Wide
Pedals	n/a
Chain	SRAM Apex Flattop Chain 12spd
Cassette	SRAM XPLR PG1231 11-44t 12spd
Chainguide	n/a
F/D	n/a
R/D	SRAM Apex XPLR AXS 12spd
Shifters	SRAM Apex AXS

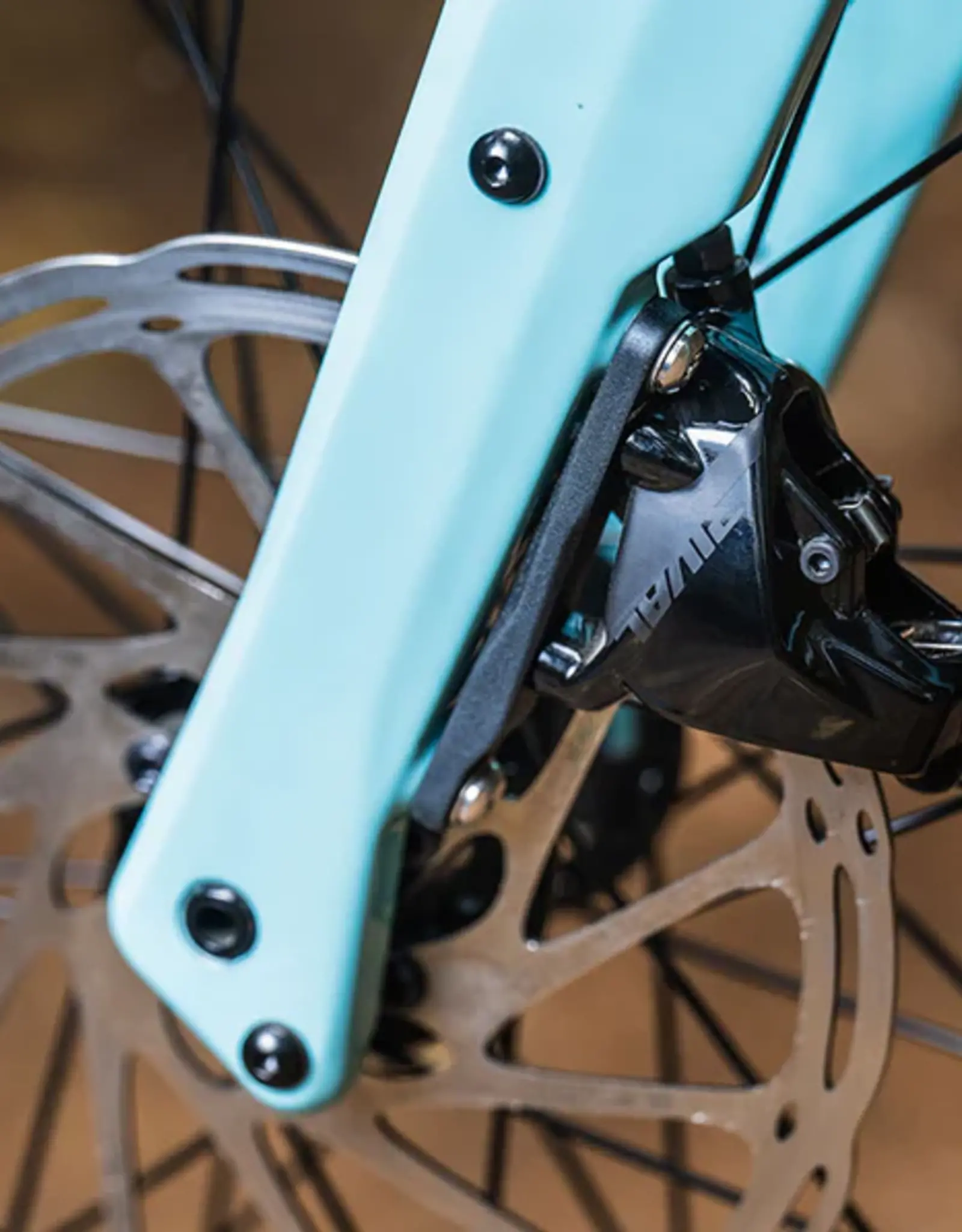

Brake Calipers	SRAM Apex
Front Brake Rotor	SRAM Centerline 160mm
Rear Brake Rotor	SRAM Centerline 160mm
Brake Levers	SRAM Apex
Headset	FSA No.57E
Handlebar	Ritchey Butano Comp Internal
Stem	Ritchey 4-Axis 44 Comp
Seatpost	Ritchey Link 20 WCS
Seat Clamp	Kona Clamp
Grips	Kona Cork Tape
Saddle	WTB SL8
Front Hub	Formula 100x12mm
Rear Hub	Formula 142x12mm
Spokes	Stainless Black 14g
Rims	Easton ARC Offset 25
Front Tire	WTB Vulpine TCS Light DNA 700x45c
Rear Tire	WTB Vulpine TCS Light DNA 700x45c
Paint Color	Gloss Mauve w/ Dark Crimson Decals

* All specifications are subject to change without notice.

Bike Geometry


Metric - millimeters
SIZE	48	50	52	54	56	58
REACH	380	385	390	395	400	405
STACK	560	575	590	610	630	660
HTA	69.5
HTL	115	131	147	172	193	225
STA	75°	74.5°	74°	73.5°	73°	72.5°
STL	410	410	455	455	500	535
CSL	445
BBD	75	75	75	72	72	72
WHEELBASE	1059	1069	1080	1094	1106	1123
FRONT CENTER	625	635	646	659	671	687
FORK C-A	420
FORK OFFSET	55
TTL	530	544	559	576	593	613
MAX TIRE WIDTH	53-622 / 739 OD

GEOMETRY

	Size	48	50	52	54	56	58
1	ST Length	440	460	480	510	540	570
2	TT Length	527	542	556	573	590	610
3	Reach	380	385	390	395	400	405
4	Stack	550	565	580	600	620	650
5	Standover	733	752	770	799	825	855
6	HT Angle	70.5	70.5	70.5	70.5	70.5	70.5
7	HT Length	109	125	140	165	186	218
8	ST Angle	75	74.5	74	73.5	73	72.5
9	CS Length	435	435	435	435	435	435
10	BB Drop	75	75	75	72	72	72
11	BB Height	285	285	285	288	288	288
12	Wheelbase	1030	1040	1050	1064	1076	1092
13	Front Center	606	616	626	639	651	667
14	Fork Length	410	410	410	410	410	410
15	Fork Offset	50	50	50	50	50	50

Frame:	Kona Carbon

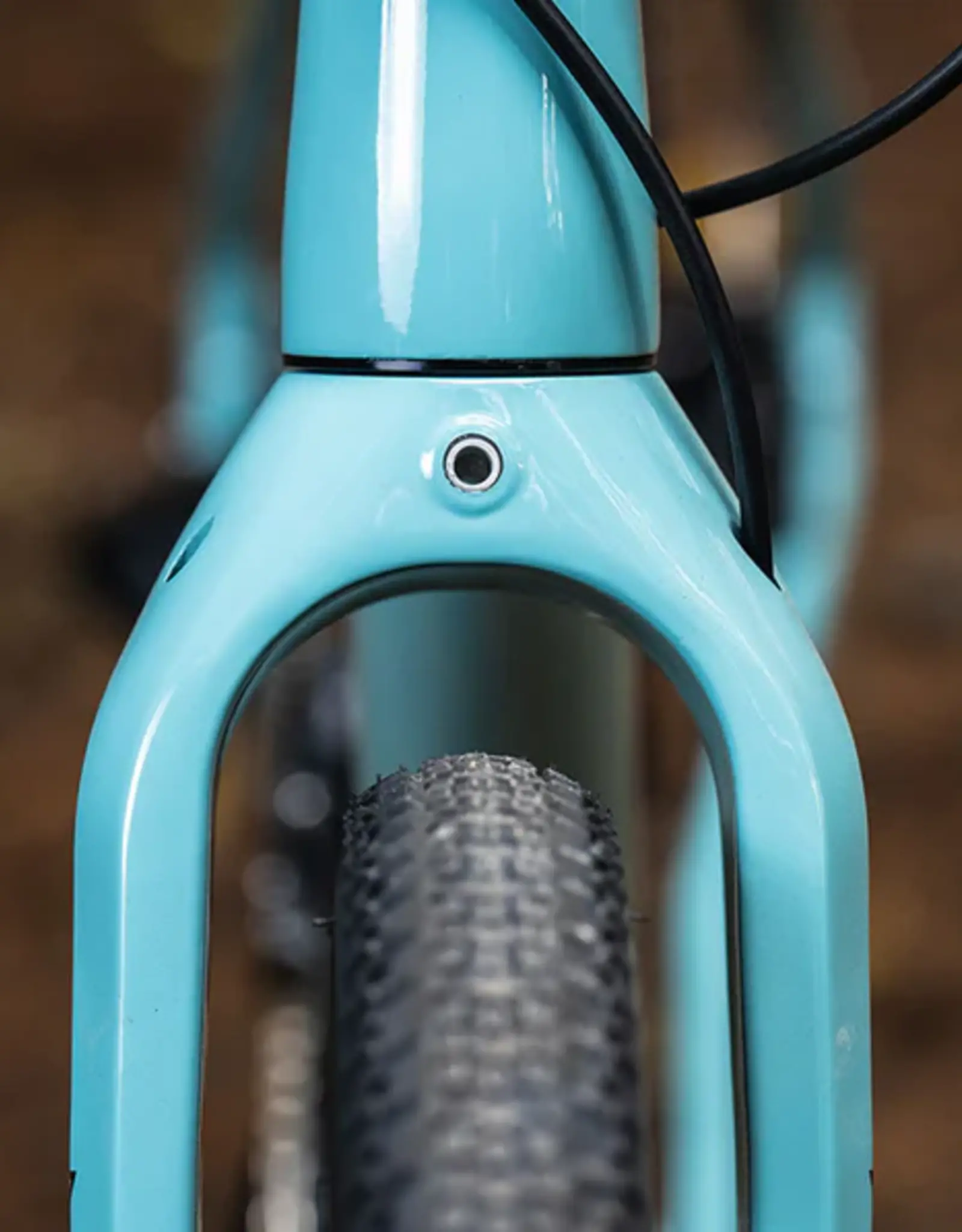

Fork:	Kona Ouroboros Carbon, 420 axle to crown, tapered 1.5 (28.6 - 38.1), 100 x 12mm, internal brake and dynamo routing, native 160 flat mount front, 3-pack bosses + fender mounts
Crankset:	SRAM Rival 43/30 Wide w/ SRAM Rival DUB Wide Crankarms

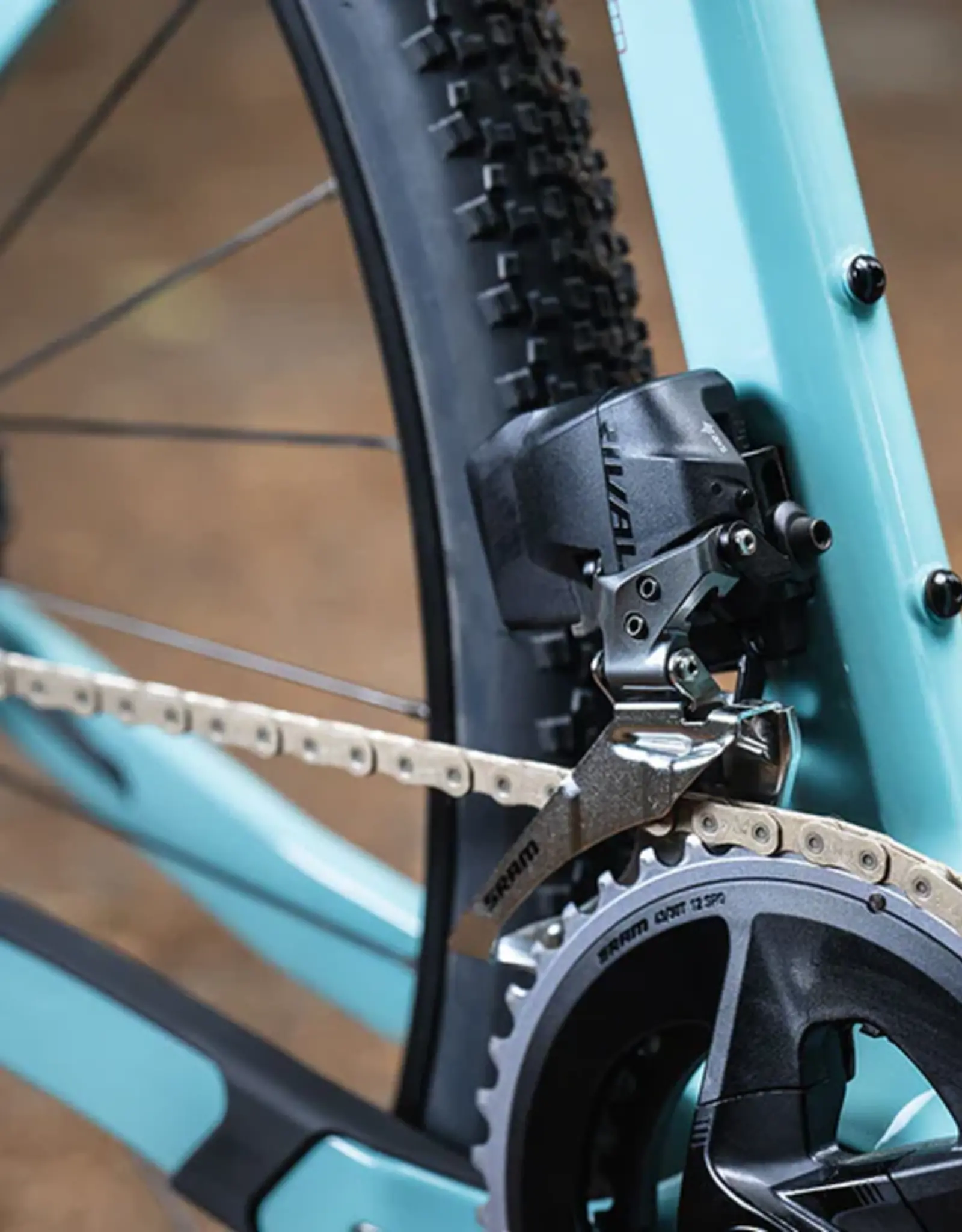

Derailleur Front:	SRAM Rival ETAP AXS Wide
Derailleur Rear:	SRAM Rival ETAP AXS
Cassette:	SRAM Rival XG-1250 10-36t 12 speed XDR cassette
Shifters:	SRAM Rival ETAP AXS

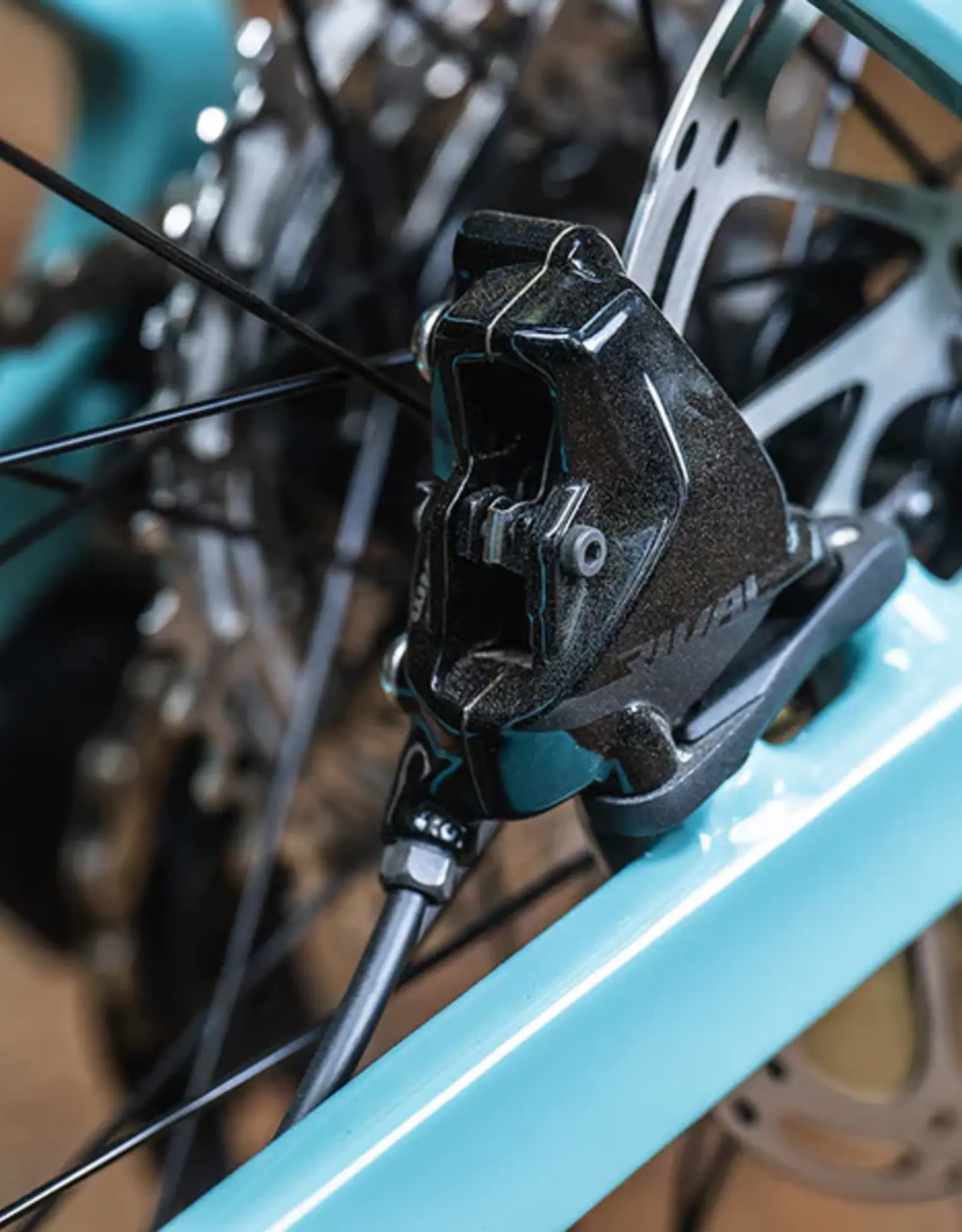

Brakes:	SRAM Rival Flat Mount Hydraulic Calipers w/ SRAM Centerline 6-bolt 180mm rotors w/ SRAM Rival ETAP AXS levers
Wheels/Rims:	KT-Taiwan QL-S3GR, 100 x 12, 32h, 6-bolt (fr) KT-Taiwan QL-DD4DR, WTB KOM i27 6069 alloy, 32h, TCS 2.0, with tubeless taper rims 142 x 12, 32h, 6-bolt, XDR freehub, STAR ratchet (rr) hubs w/ WTB KOM i27 6069 alloy, 32h, TCS 2.0, with tubeless tape rims

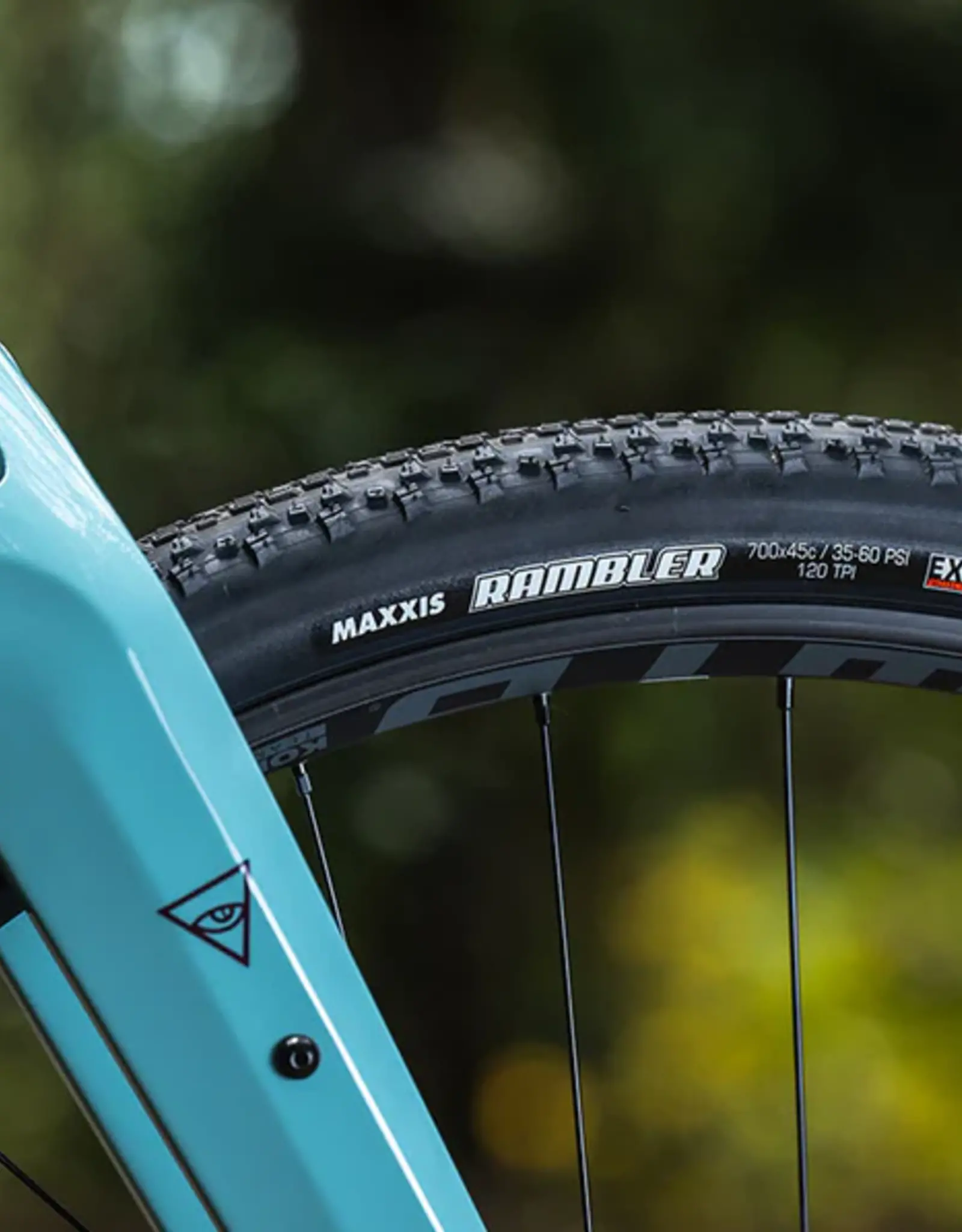

Tires:	Maxxis Rambler 700 x 45 TR EXO
Handlebar:	Ritchey Venturemax Comp/Venturemax XL Comp, 24-degree flare, 4.6 degree backsweep; 48-50: 460mm, 52-54: 480mm, 56: 500mm, 58: 520mm

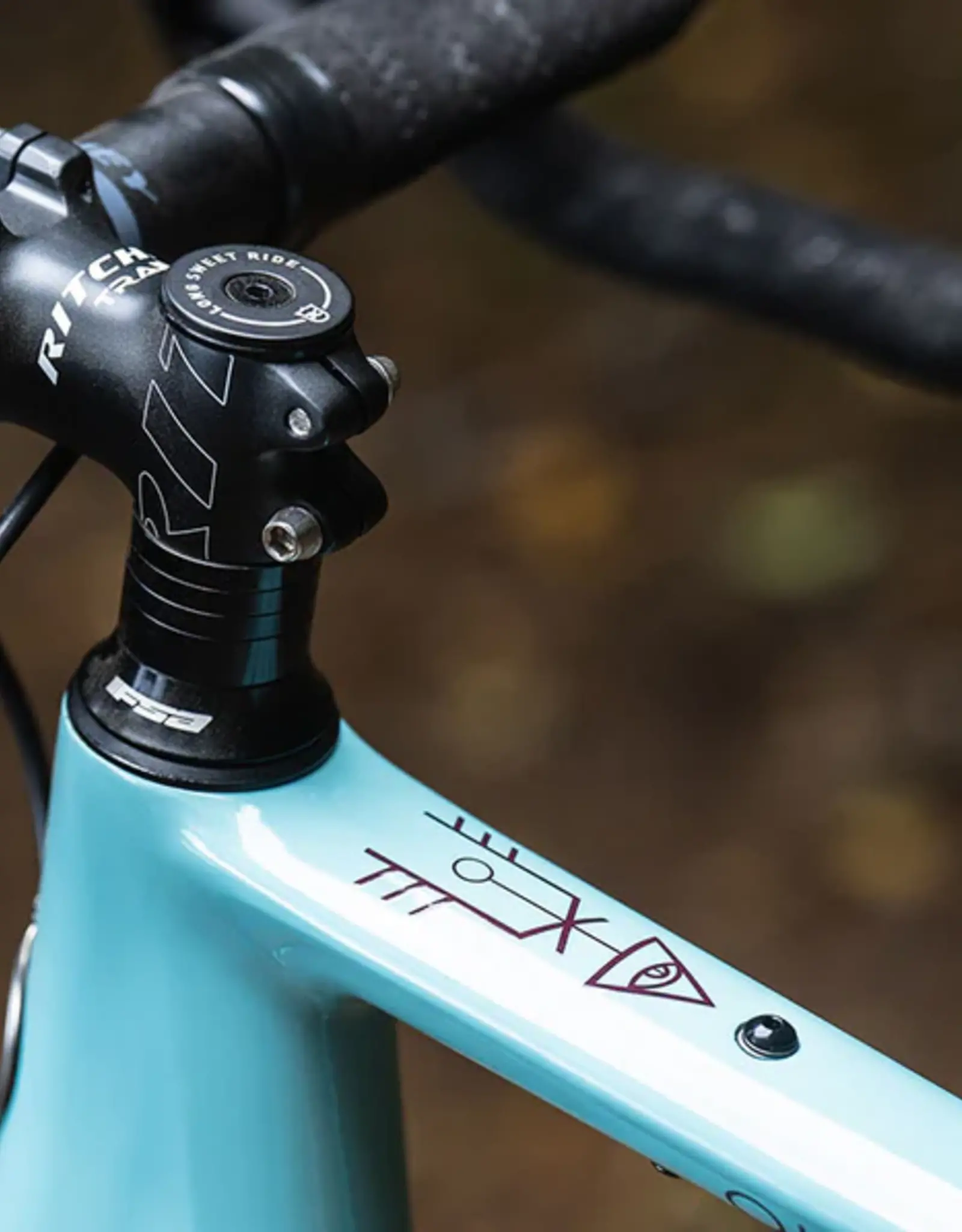

Stem:	Ritchey Trail Comp, 0-degree, 48-52: 45mm; 54-58: 60mm
Saddle:	WTB Volt Medium Steel SL
Seatpost:	Ritchey Link 20 WCS, 31.6mm, 20mm setback, 48-52: 350mm; 54-58: 400mm
Color:	Color Gloss Harbor Grey w/ Plum & Bloodstone Decals
Misc:	batteries, charger
