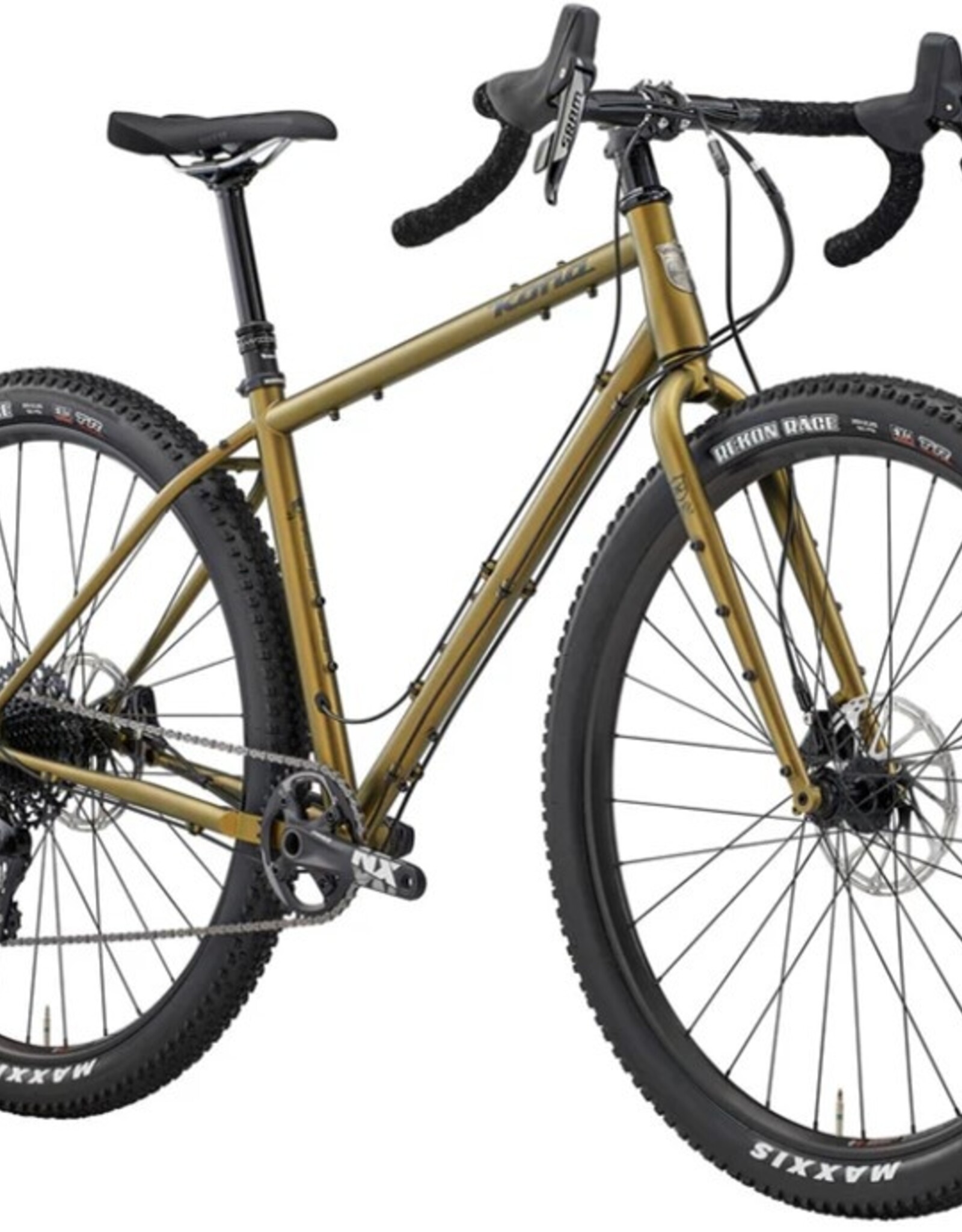

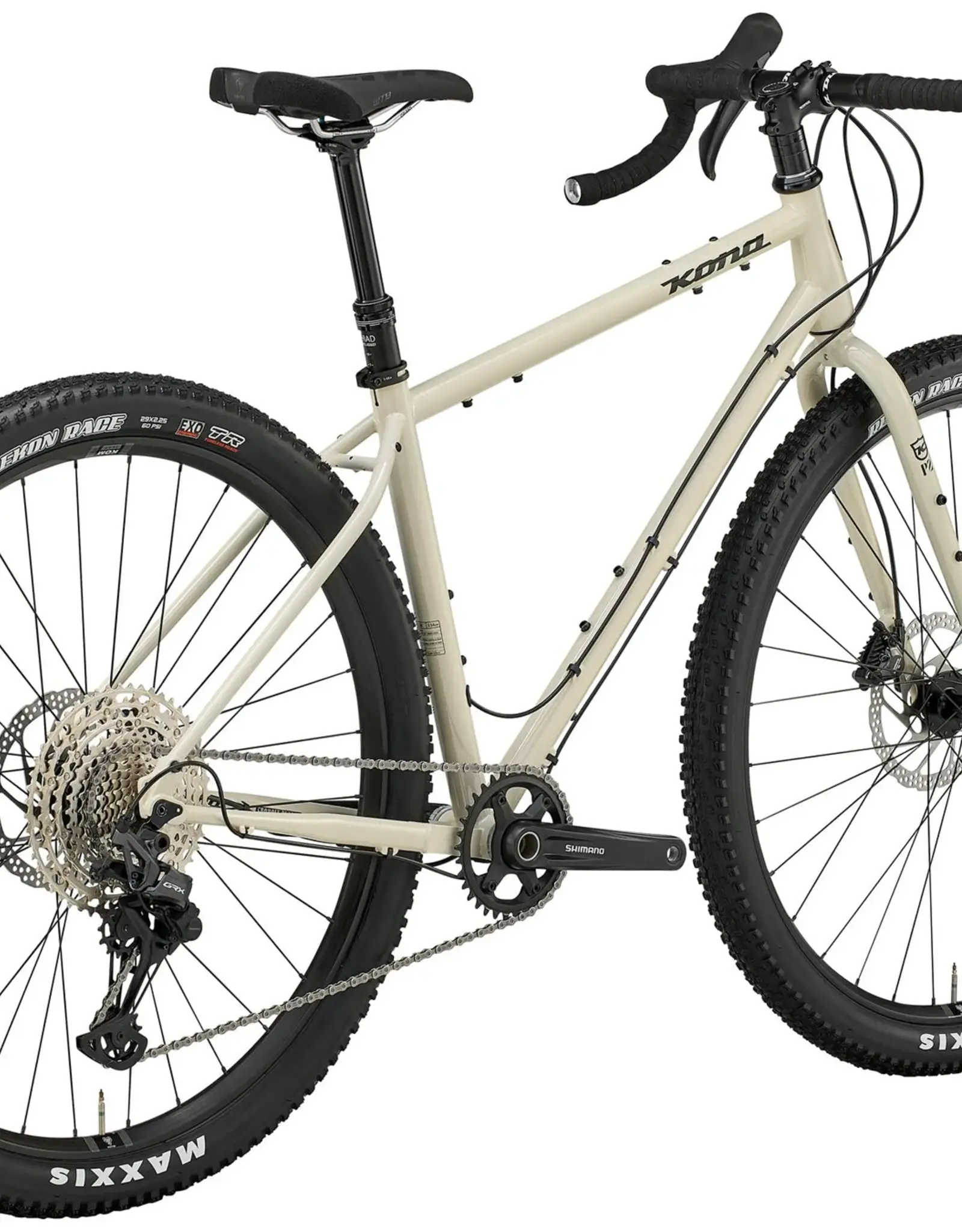

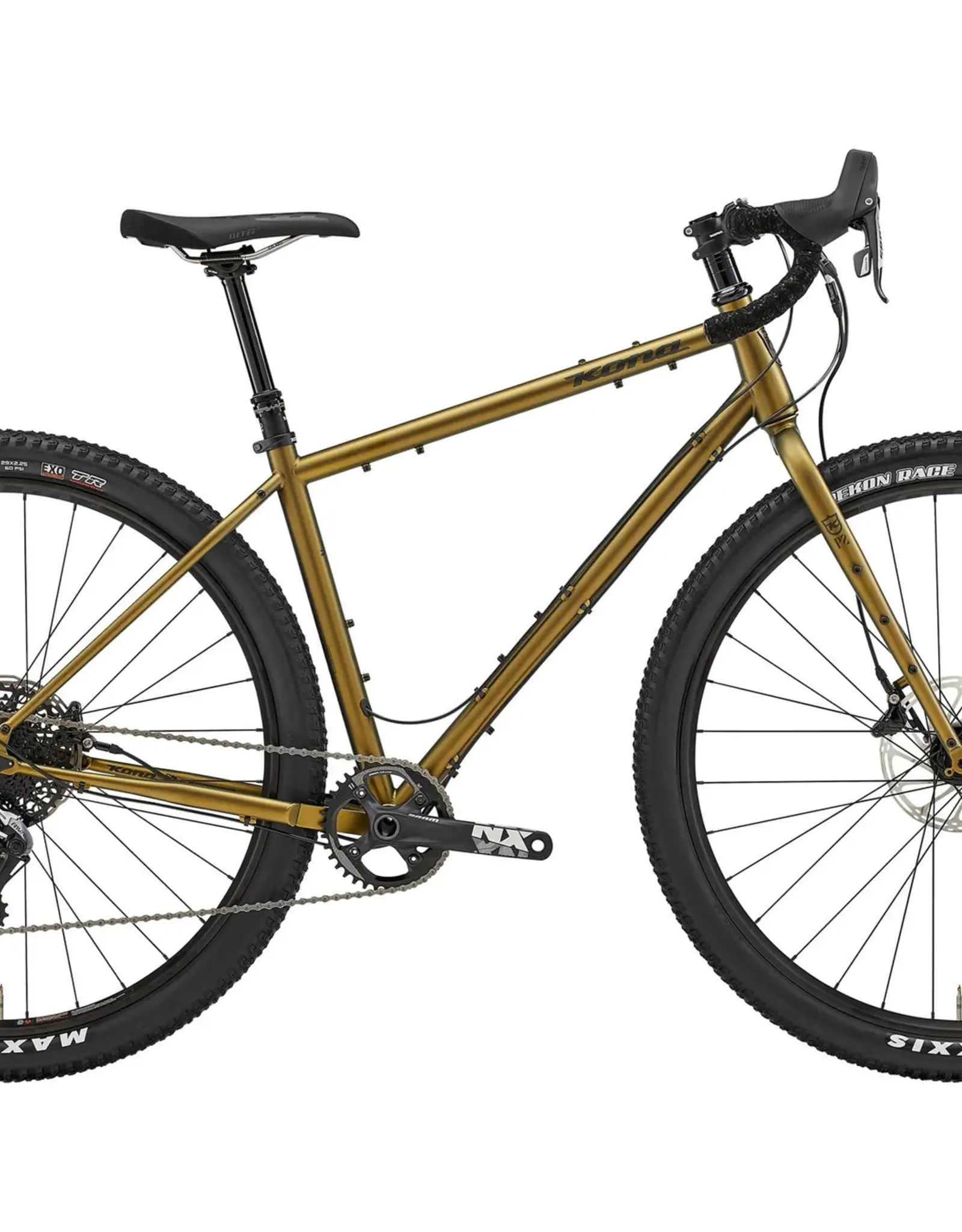

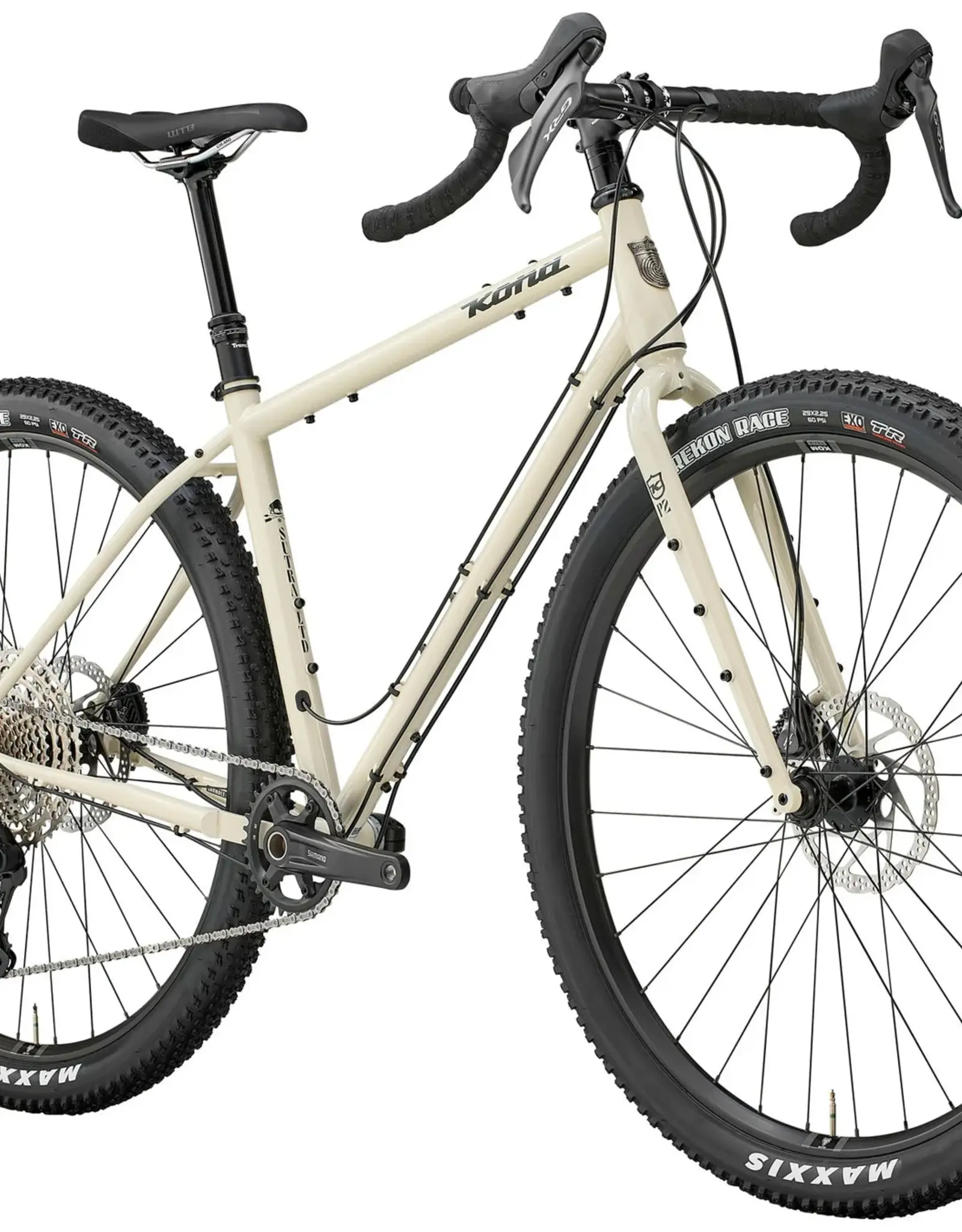

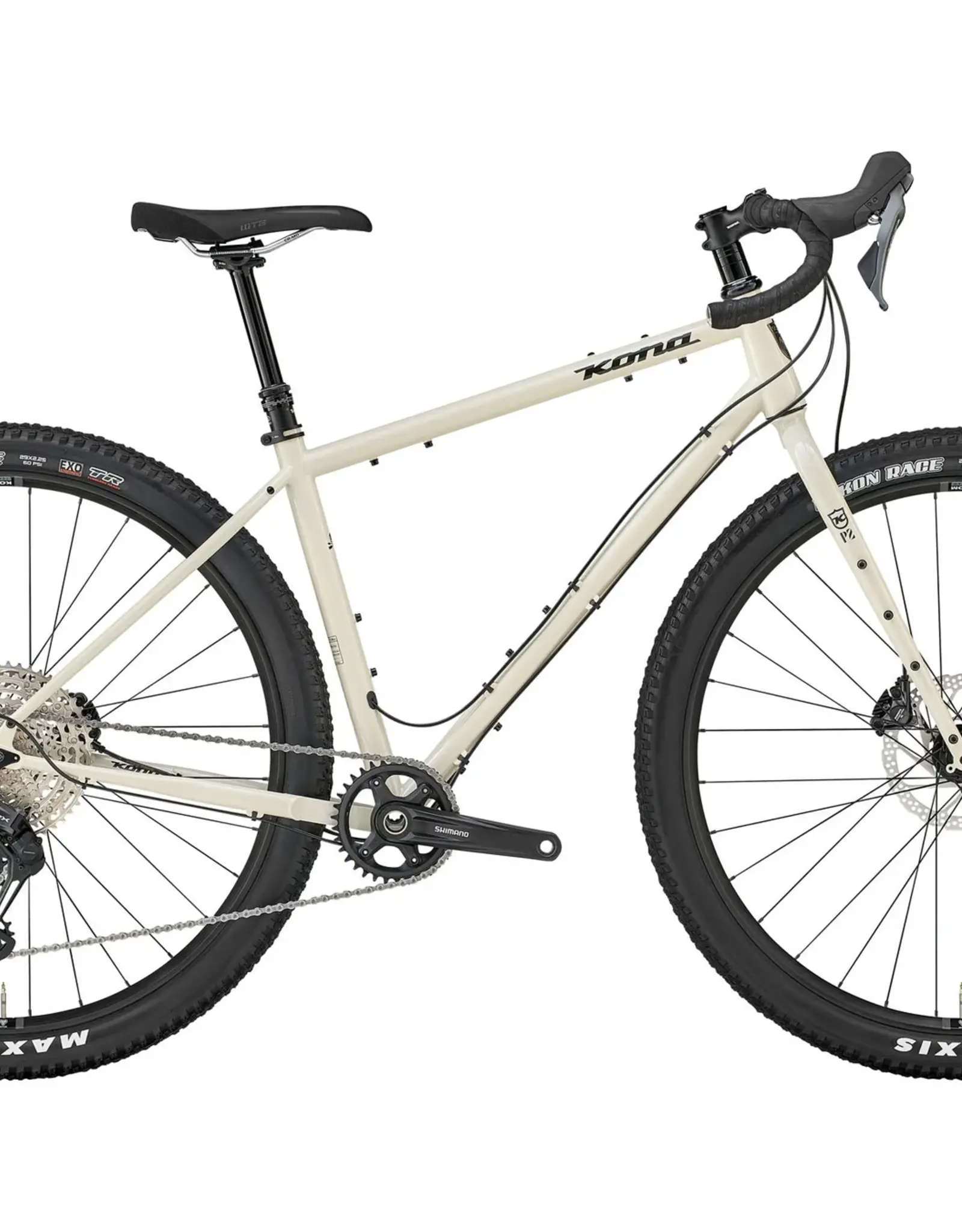

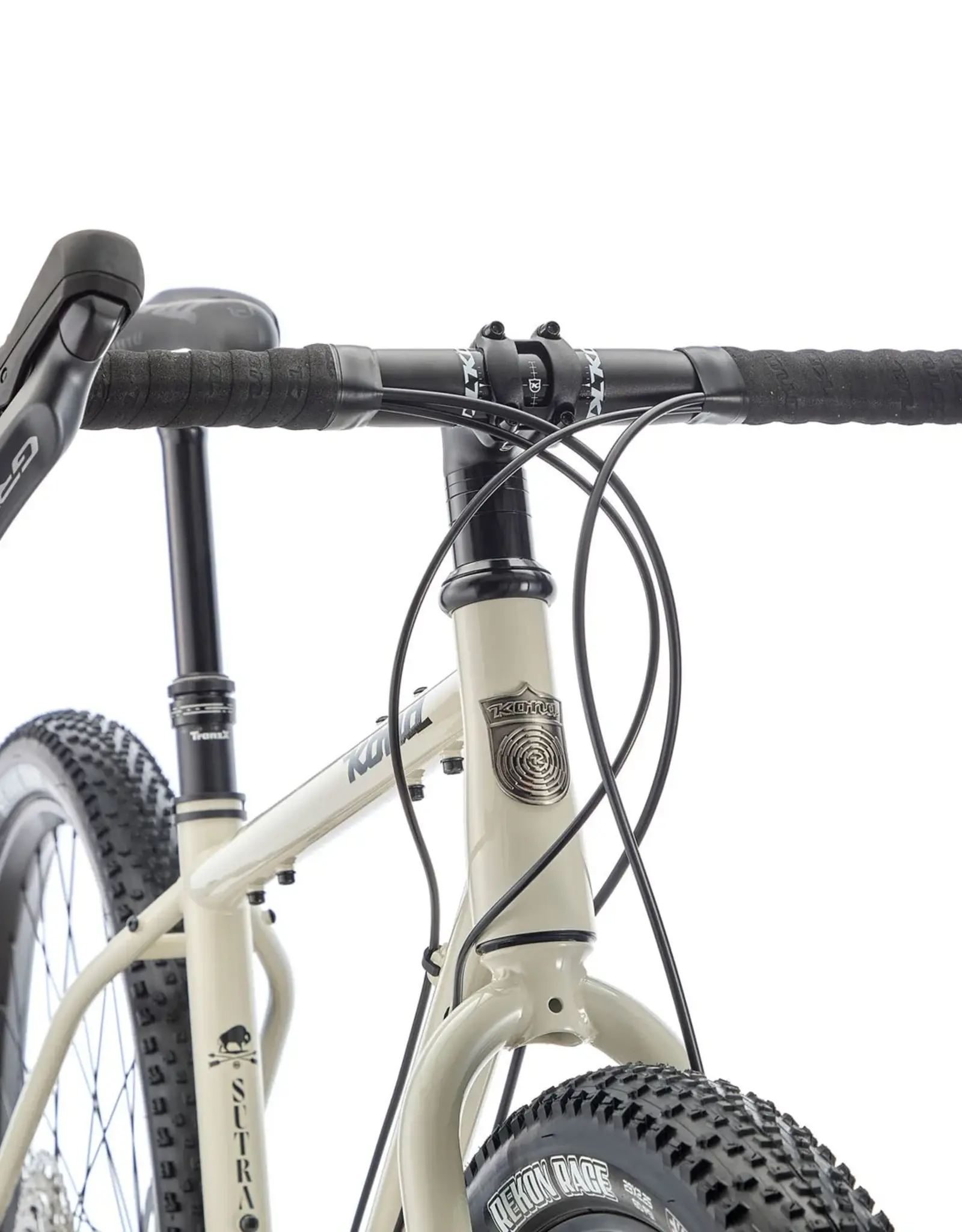

Sutra LTD

The Sutra LTD is one of those bikes that just changes everything. You thought you were a mountain biker, but you find yourself sneaking off on adventures and enjoying the drop bars on the LTD. You thought you were a roadie but find yourself absolutely destroying singletrack when no one else is looking and suddenly getting rad is all you wanna do! That’s the best part about the Sutra LTD—it broke the mold of what a bike has to be. It’s got bigger tires, burlier construction, and enough mounts to hold a horse. But who needs a horse when this is your horse?

Bike Geometry

Geometry

	SIZE	48	50	52	54	56	58
1	ST LENGTH	410	410	455	455	500	535
2	TT LENGTH	532	545	560	575	592	613
3	REACH	380	385	390	395	400	405
4	STACK	568	578	592	609	627	660
5	STANDOVER	735	739	773	781	827	851
6	HT ANGLE	69.5	69.5	69.5	69.5	69.5	69.5
7	HT LENGTH	115	125	140	160	180	215
8	ST ANGLE	75.0	74.5	74.0	73.5	73.0	72.5
9	CS LENGTH	445	445	445	445	445	445
10	BB DROP	74	74	74	72	72	72
11	BB HEIGHT	301	301	301	303	303	303
12	WHEELBASE	1062	1071	1081	1094	1106	1123
13	FRONT CENTER	628	636	647	658	670	688
14	FORK LENGTH	430	430	430	430	430	430
15	FORK OFFSET	55	55	55	55	55	55

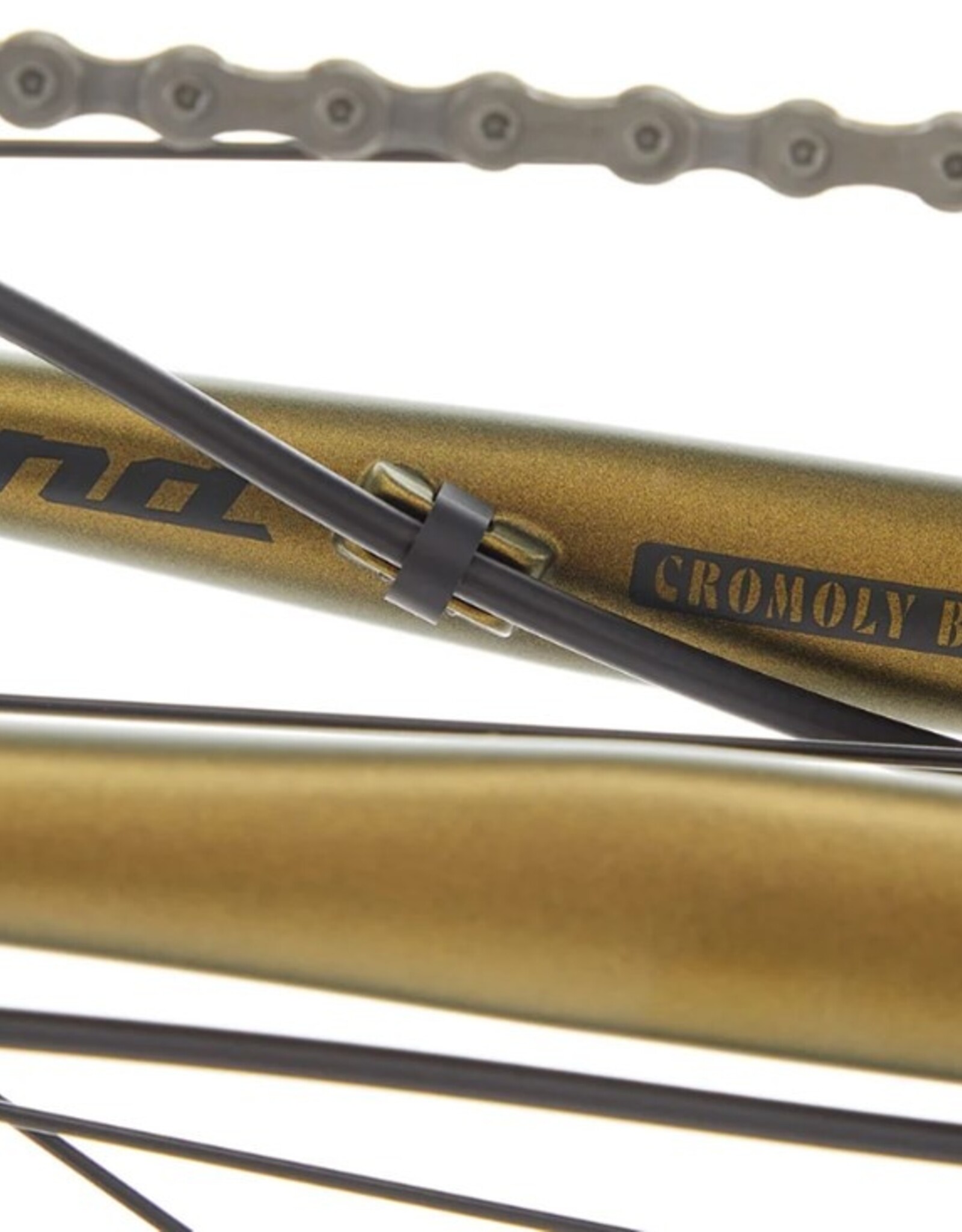

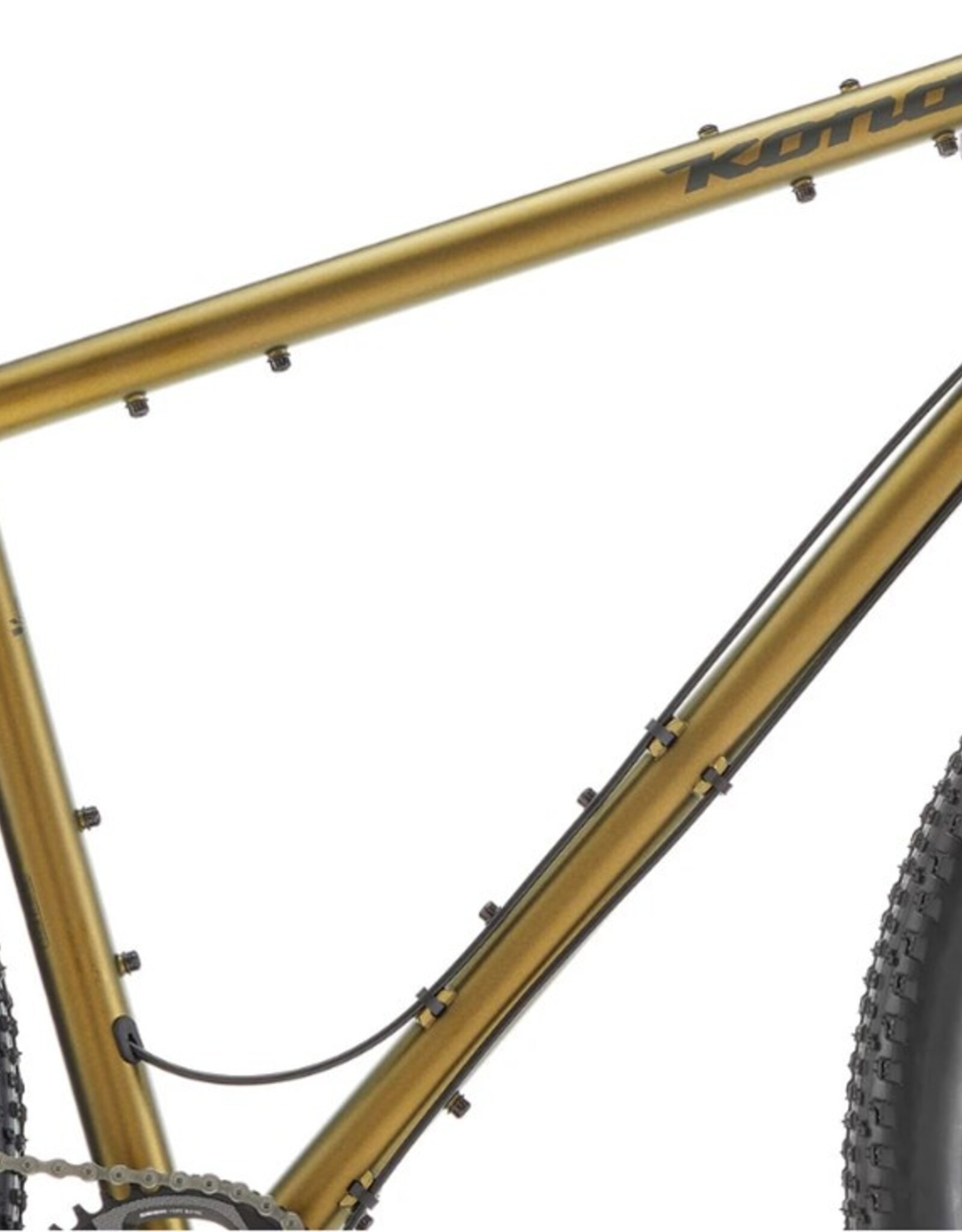

Frame:	Kona Cromoly Butted

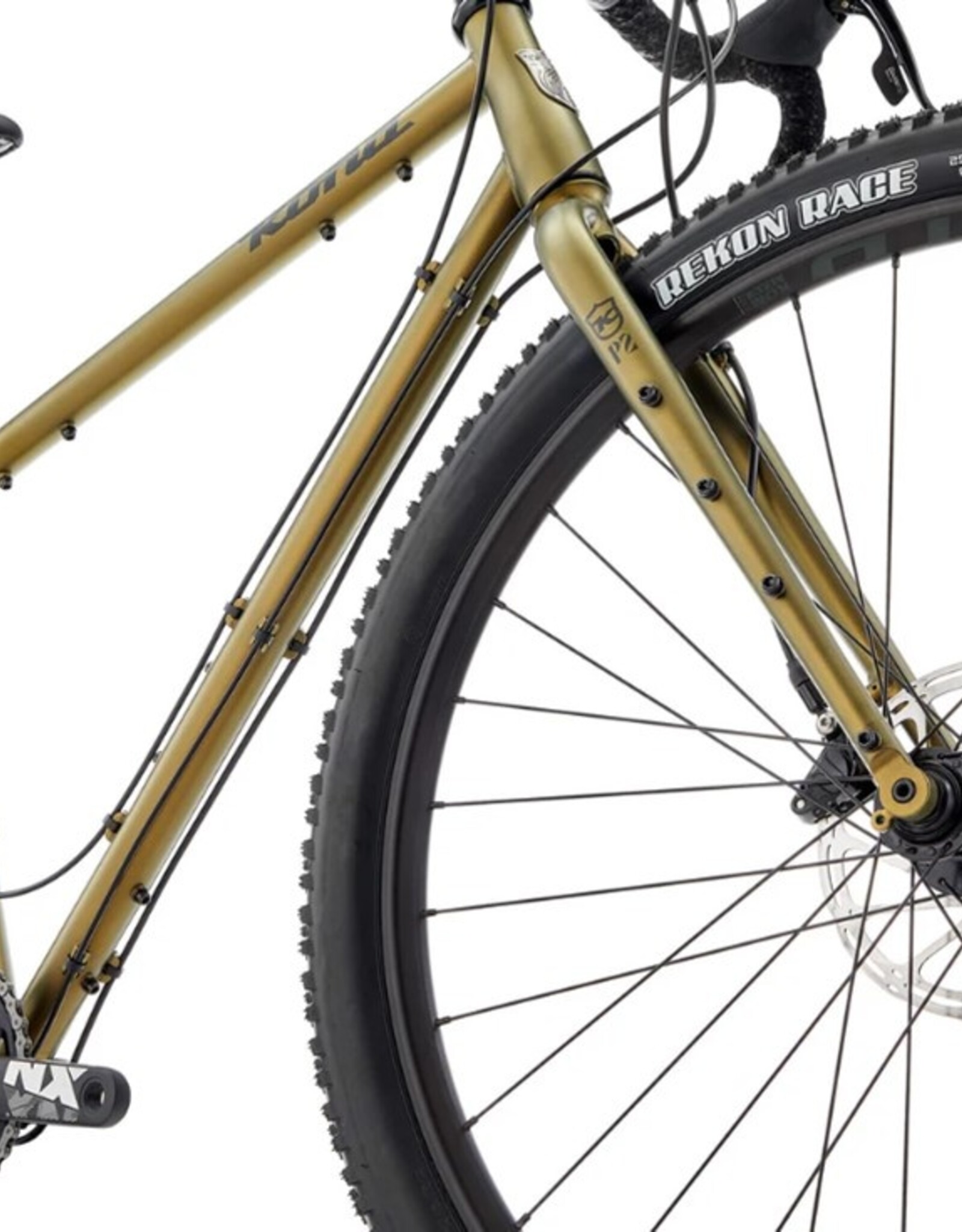

Fork:	Kona Project Two Cromoly Disc Touring Fork

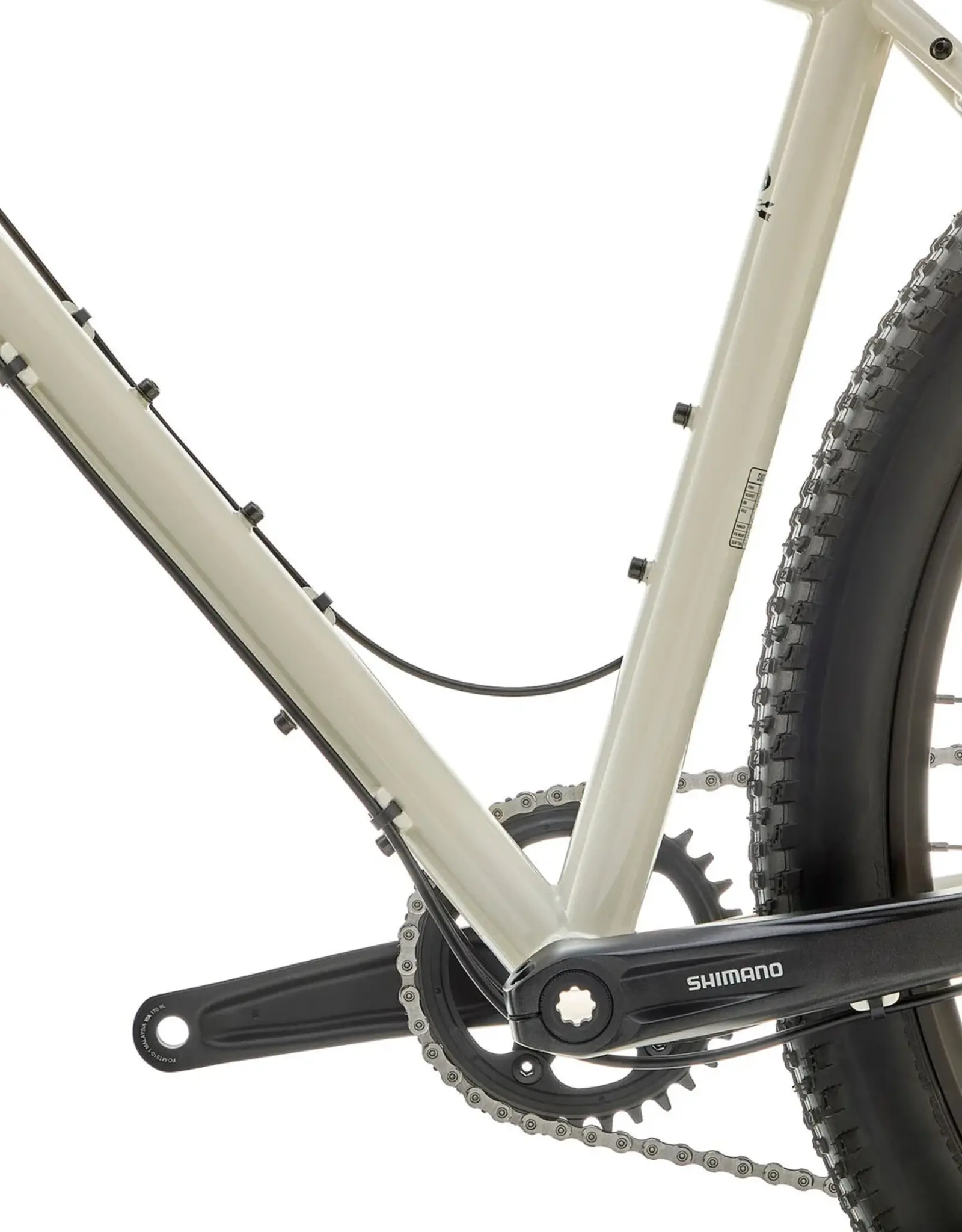

Crankset:	(White) 34t Shimano Deore w/Deore arms or (Olive) 36t X-Sync w/ SRAM NX
Derailleur Front:	n.a.
Derailleur Rear:	(White) Shimano GRX 12spd or (Olive) SRAM Rival 1
Cassette:	(White) Shimano Deore 10-51t 12spd or (Olive) SRAM PG1130 11-42t 11spd
Shifters:	(White) Shimano GRX w/ dropper lever or (Olive) SRAM Rival 1 w/ Integrated Dropper Lever

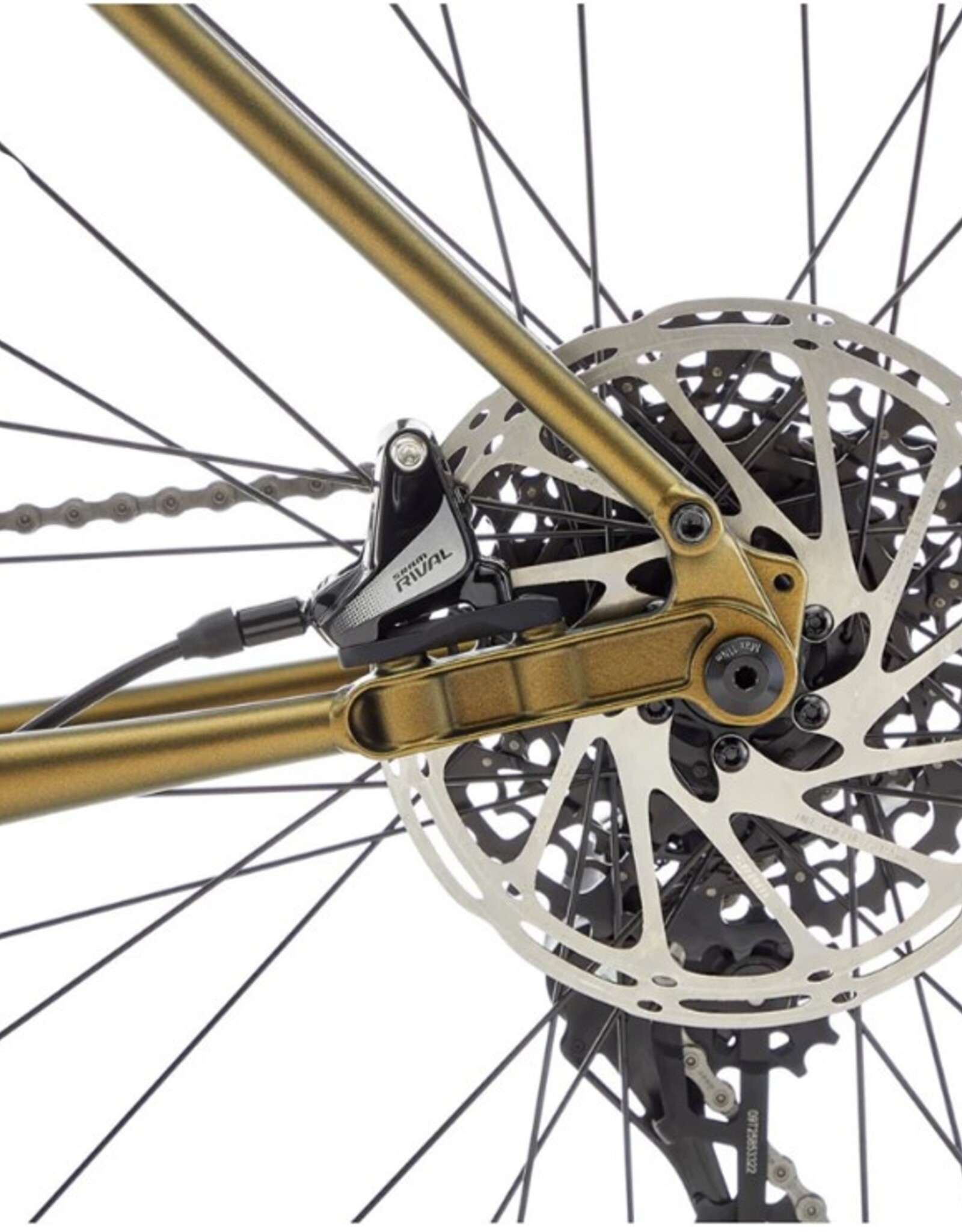

Brakes:	(White) Shimano GRX calipers w/ 180mm rotors or (Olive) SRAM Rival 1 w/ SRAM Rival HRD Flat Mount calipers w/ SRAM Centerline 180mm
Wheels/Rims:	WTB KOM Team i27 TCS 2.0 rims w/ Stainless Black 14g spokes w/Formula 100x12mm [fr] 142x12mm [rr] hubs
Tires:	Maxxis Rekon Race EXO TR 29x2.25"
Handlebar:	Kona Road
Stem:	Kona Road Deluxe
Saddle:	WTB Volt
Seatpost:	TranzX Dropper +RAD Internal 31.6mm

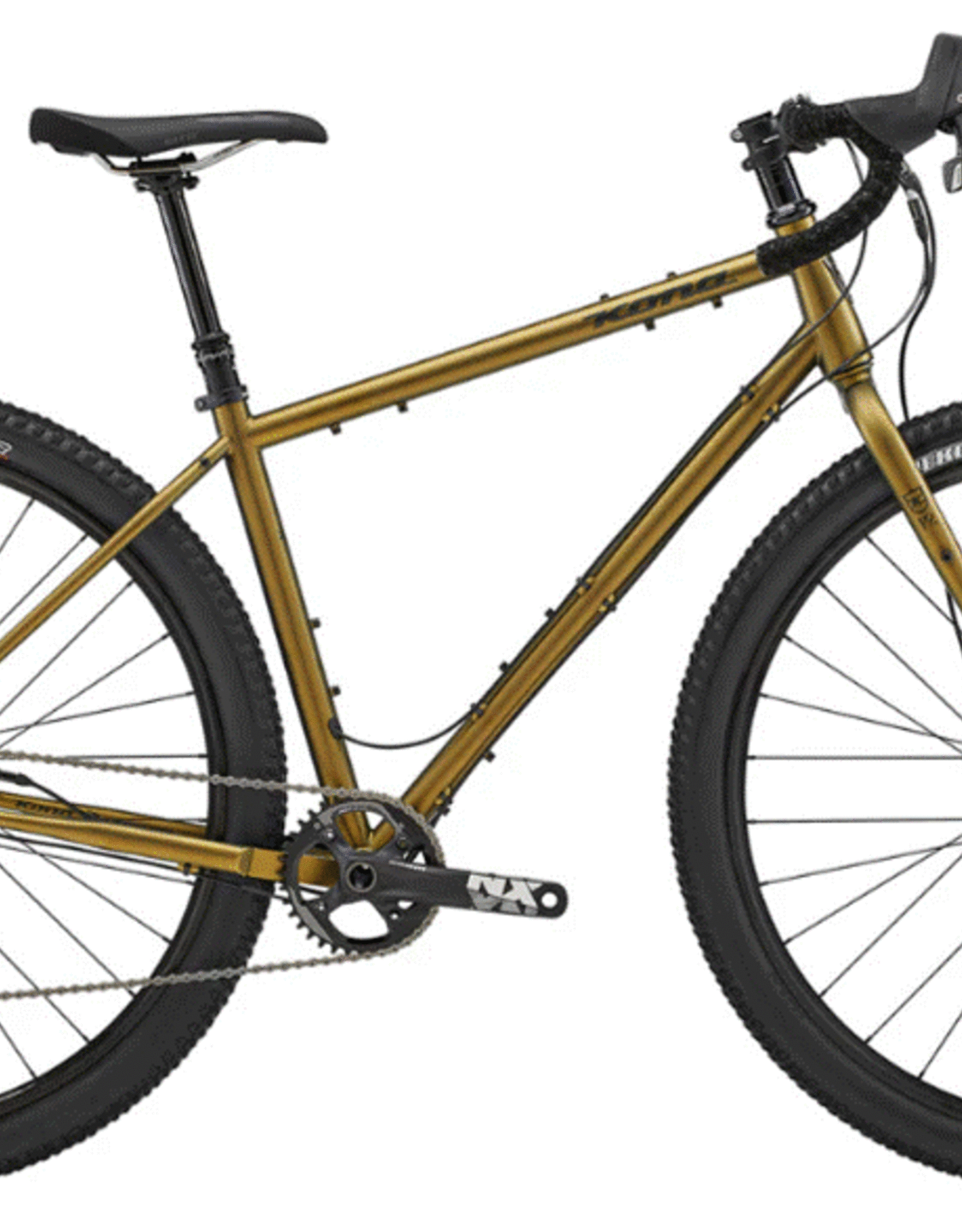

Color:	Gloss Bone w/ Charcoal Decals or Matte Turismo Olive w/ Charcoal Decals
Misc:
