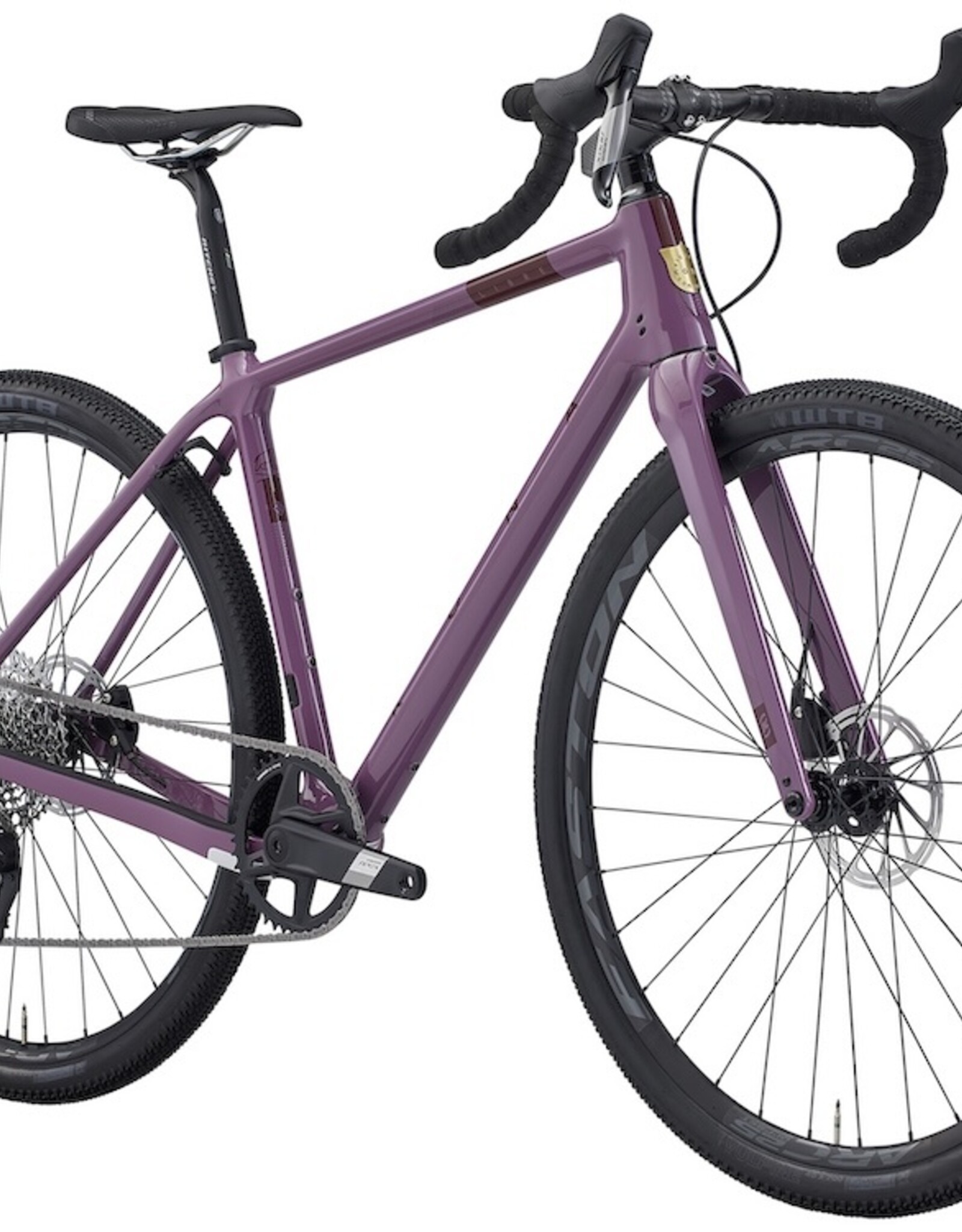

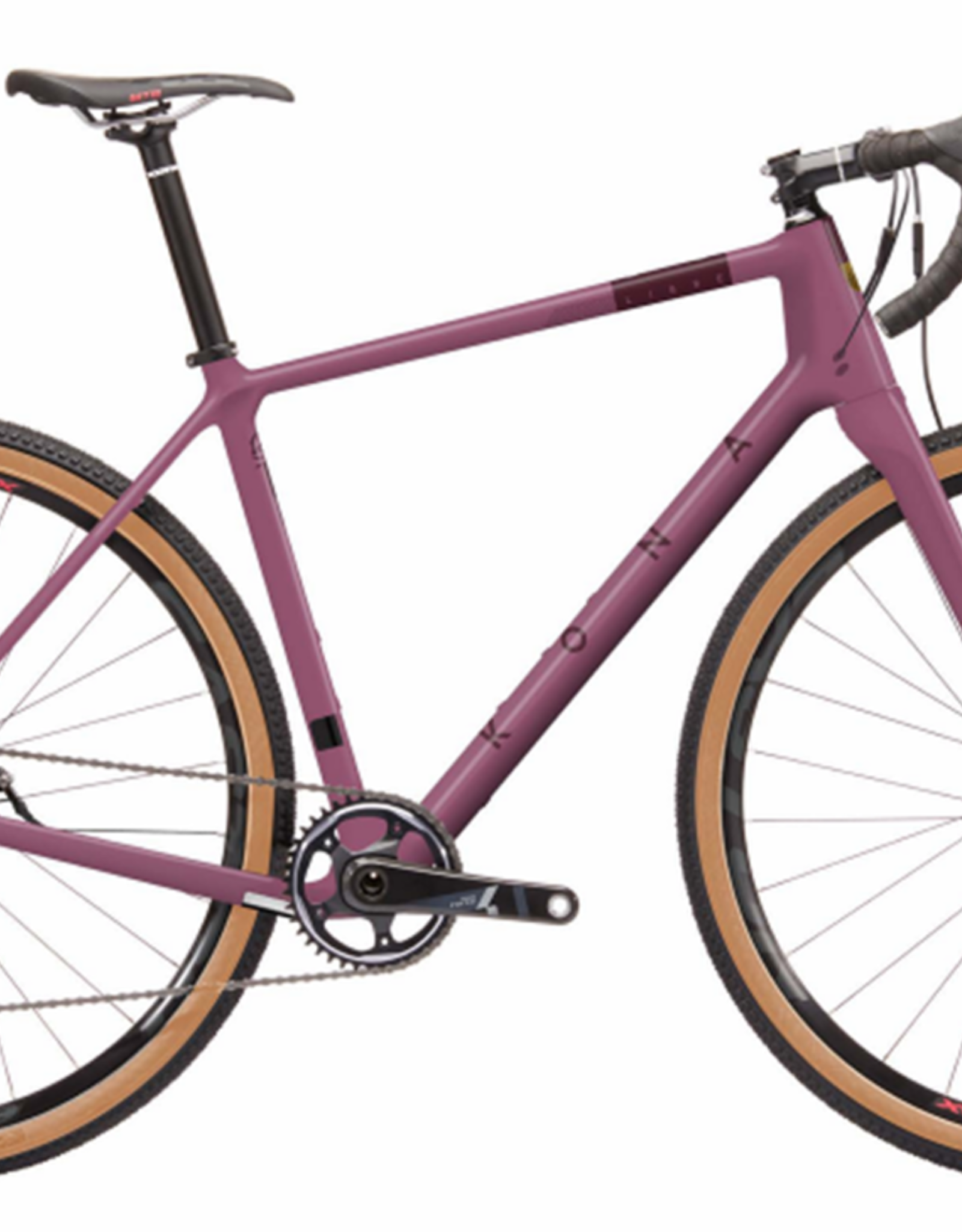

Kona Libre CR (B37) Gloss Mauve Carbon Gravel/Adventure Bicycle
Availability: | In stock (1) |
Libre Carbon
Gravel / Adventure Bicycle
Somewhere between the stable but often sluggish beast of burden world of touring and the highly strung, tightly focused realm of road performance, there exists a need for a drop bar bike that can grind out mile after mile of washboard gravel and still snap to attention when you stomp on the pedals. it needs to be fast, with geometry relaxed and composed enough to eat all that gravel without a twitch, but still sharp enough to carve turns on pavement with authority. Build it out of carbon fiber, so it's super, but plenty strong as well. Festoon it with bosses for lots of water bottles and bento mounts, but don't go crazy. Lots of tire clearance, just in case. Sharp, but smooth. Fast, but comfortable. Gravel all day, pavement whenever you want.
Highlights
- SRAM Apex AXS APLR drivetrain and brakes
- Ritchey Butano Comp Internal handlebar with 18-degree flare

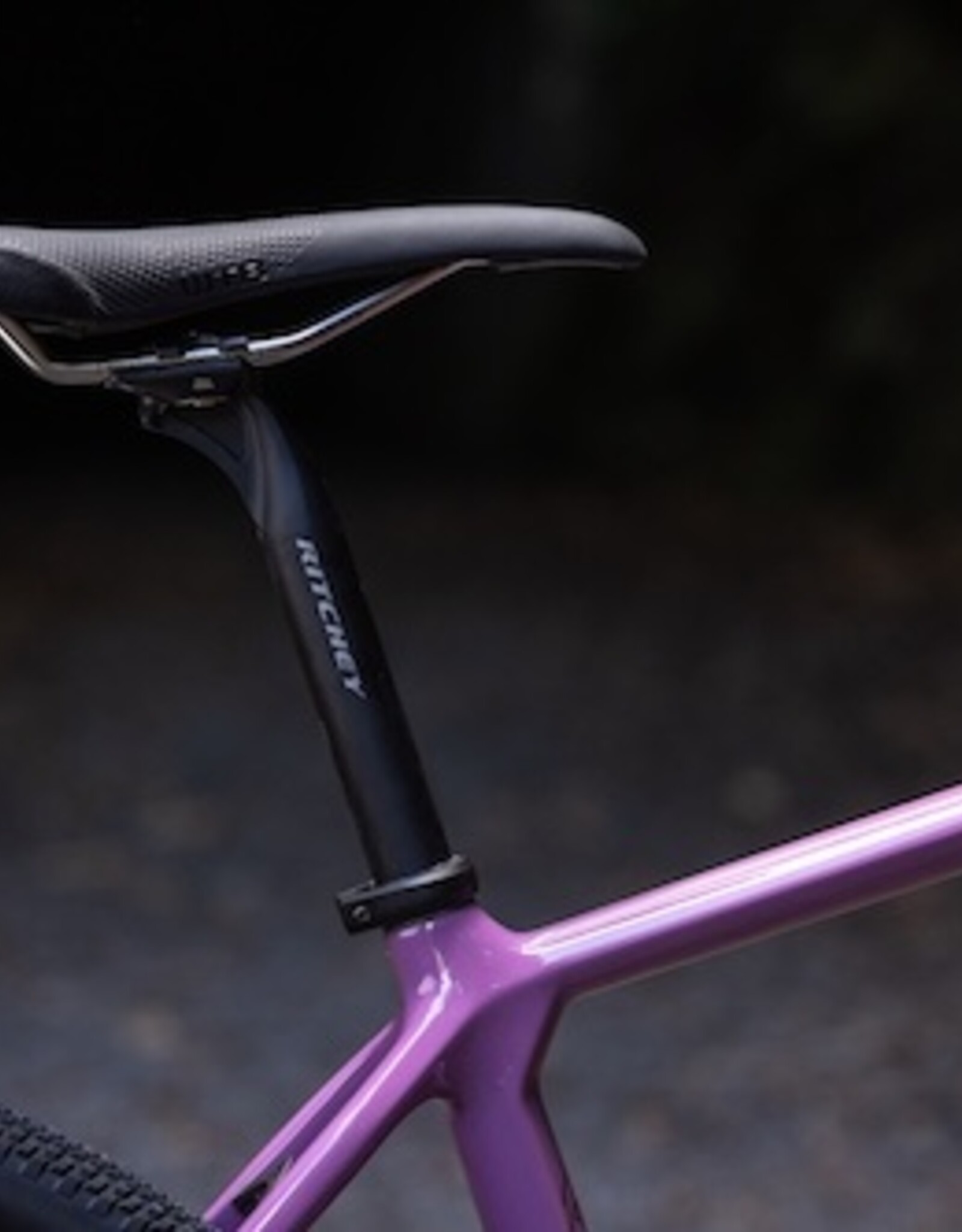

- Ritchey4axis 44 Comp stem and seatpost
- Easton ARC offset 25 rims
- WTB Vupline TCS 700 x 45c tubeless tires
- 27.2 seatpost for improved compliance
- Front triangle fits two H2O cages with room for half frame bag
- 160/180 flat mount brakes
- UDH/Transmission ready
- Removable seatstay/fender bridge
- Fenders fit with 700 x 45c tires
- Removable FD mount plate
- 48, 50, 52, 54, 56, 58 sizes
Geometry MM
SIZE | 48 | 50 | 52 | 54 | 56 | 58 | |
1 | STL | 440 | 460 | 480 | 510 | 540 | 570 |
2 | TTL | 527 | 542 | 556 | 573 | 590 | 610 |
3 | REACH | 380 | 385 | 390 | 395 | 400 | 405 |
4 | STACK | 550 | 565 | 580 | 600 | 620 | 650 |
5 | SO | 733 | 752 | 770 | 799 | 825 | 855 |
6 | HTA | 70.5 | 70.5 | 70.5 | 70.5 | 70.5 | 70.5 |
7 | HTL | 109 | 125 | 140 | 165 | 186 | 218 |
8 | STA | 75 | 74.5 | 74 | 73.5 | 73 | 72.5 |
9 | CSL | 435 | 435 | 435 | 435 | 435 | 435 |
10 | BBD | 75 | 75 | 75 | 72 | 72 | 72 |
11 | BBH | 285 | 285 | 285 | 288 | 288 | 288 |
12 | WB | 1030 | 1040 | 1050 | 1064 | 1076 | 1092 |
13 | FC | 606 | 616 | 626 | 639 | 651 | 667 |
14 | FL | 410 | 410 | 410 | 410 | 410 | 410 |
15 | OF | 50 | 50 | 50 | 50 | 50 | 50 |
Frame: | |
Fork: | |
Crankset: | |
Derailleur Front: | |
Derailleur Rear: | |
Cassette: | |
Shifters: | |
Brakes: | |
Wheels/Rims: | |
Tires: | |
Handlebar: | |
Stem: | |
Saddle: | |
Seatpost: | |
Color: | |
Misc: |
