Kona Dr Dew (36e) Metallic Blue
| Availability: | In stock (1) |
Dr Dew

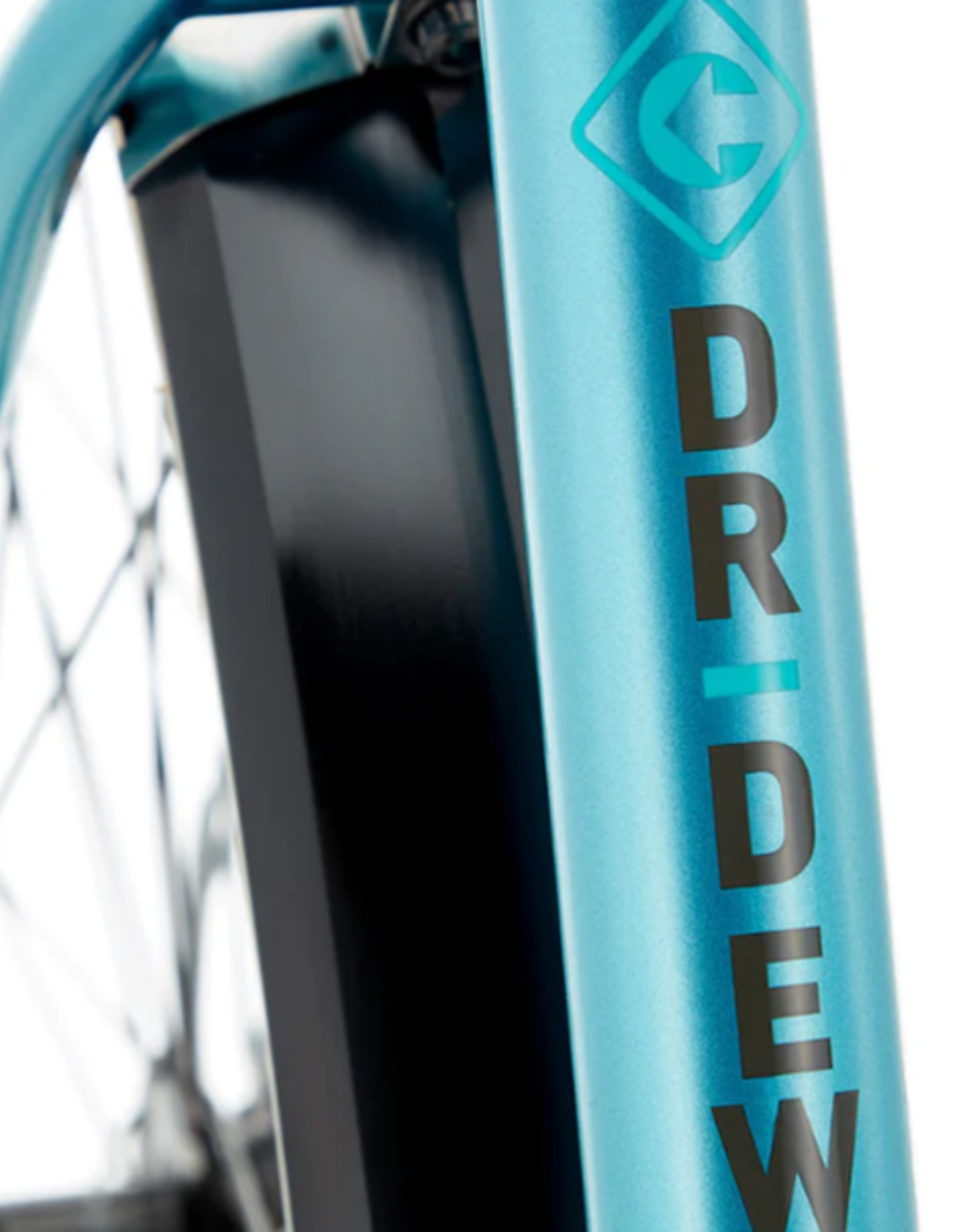

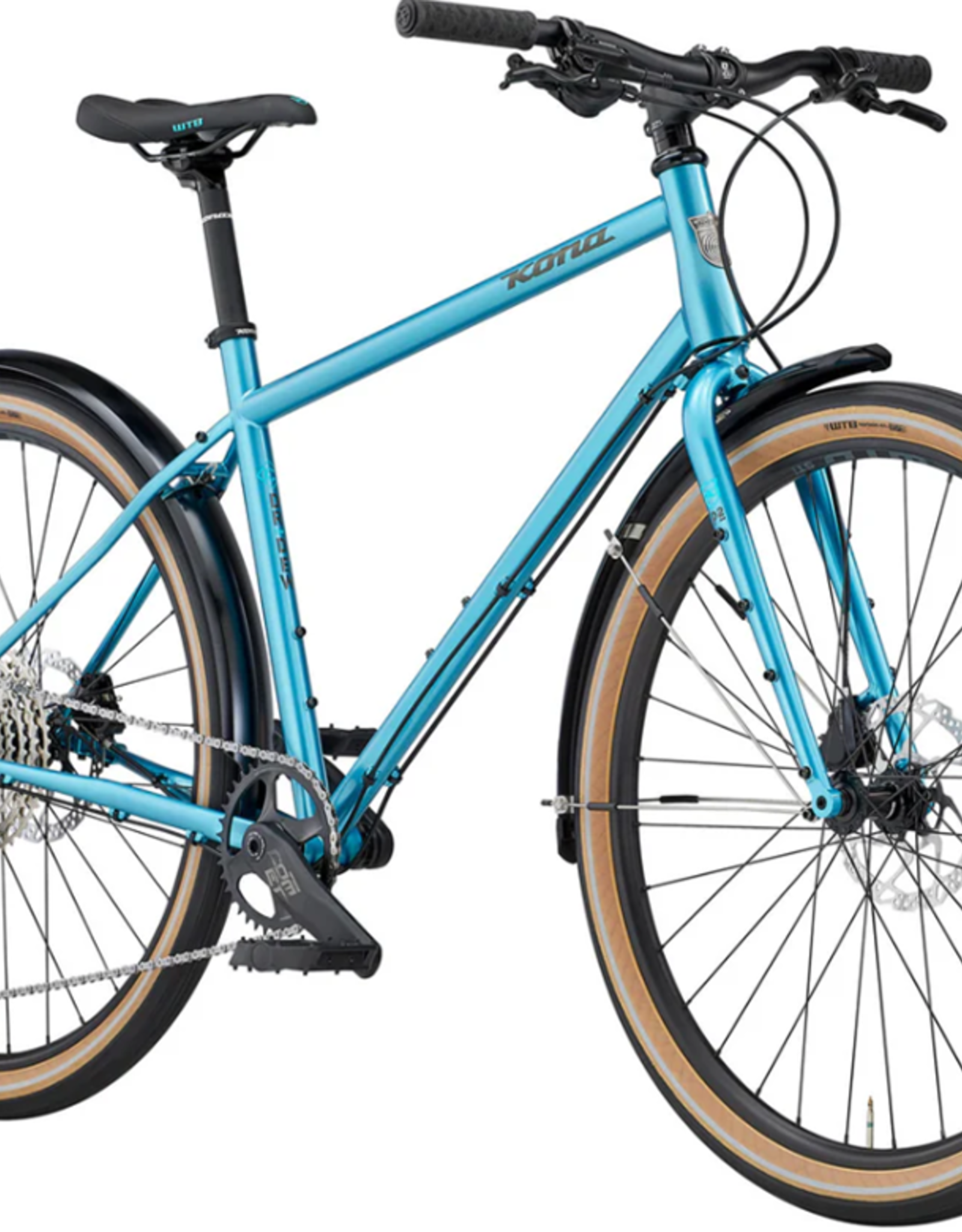

The Dr is in. Sophisticated, smart, and well-equipped. Yes, we’re talking about a bike. The Dr Dew features a sleek Cromoly Butted frame in a gorgeous sun-catching blue. A 12-speed groupset keeps shifting ultra-smooth and geared for any big hill the city may have. Powerful hydraulic disc brakes keep the speed in check, and puncture-resistant 650x47c tires keep the potholes at bay. The Dr Dew is efficiency and style rolled into one killer flat-bar commuter.
Geometry
| SIZE | S | M | L | XL | |
| 1 | ST LENGTH | 420 | 470 | 520 | 580 |
| 2 | TT LENGTH | 551 | 598 | 637 | 680 |
| 3 | REACH | 404 | 430 | 446 | 471 |
| 4 | STACK | 550 | 587 | 625 | 644 |
| 5 | STANDOVER | 683 | 728 | 773 | 817 |
| 6 | HT ANGLE | 70.0 | 70.0 | 70.0 | 70.0 |
| 7 | HT LENGTH | 115 | 155 | 195 | 215 |
| 8 | ST ANGLE | 75.0 | 74.0 | 73.0 | 72.0 |
| 9 | CS LENGTH | 450 | 450 | 450 | 450 |
| 10 | BB DROP | 70 | 70 | 70 | 70 |
| 11 | BB HEIGHT | 272 | 272 | 272 | 272 |
| 12 | WHEELBASE | 1076 | 1116 | 1146 | 1178 |
| 13 | FRONT CENTER | 636 | 675 | 705 | 736 |
| 14 | FORK LENGTH | 410 | 410 | 410 | 410 |
| 15 | FORK OFFSET | 50 | 50 | 50 | 50 |

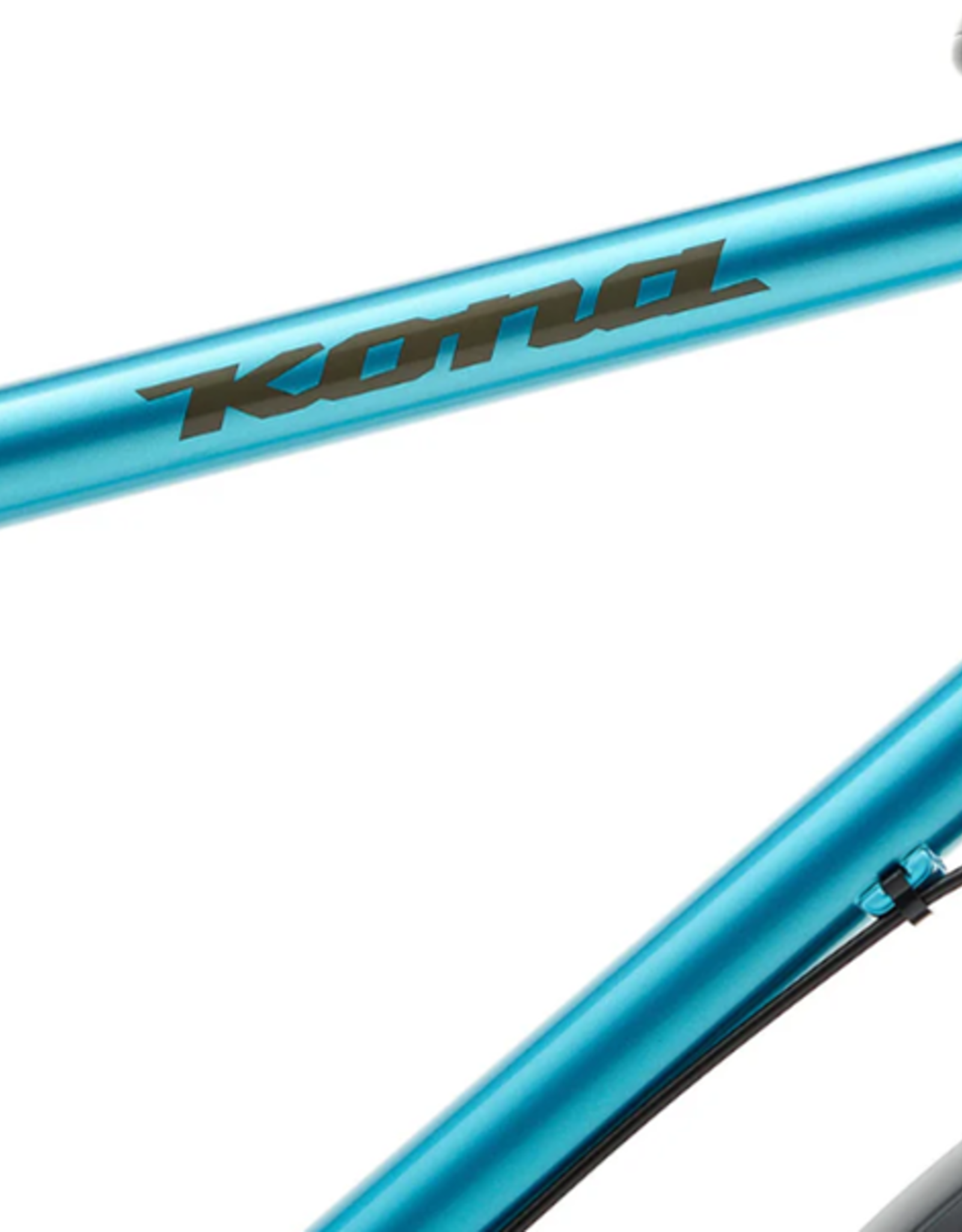

| Frame: | Kona Cromoly Butted |
| Fork: | Kona Project Two Cromoly Disc 180 |
| Crankset: | 38t w/ FSA Comet Modular Crankarms w/ FSA Road Mega EXO 68mm Bottom Bracket |
| Derailleur Front: | n/a |
| Derailleur Rear: | Shimano Deore 12spd |

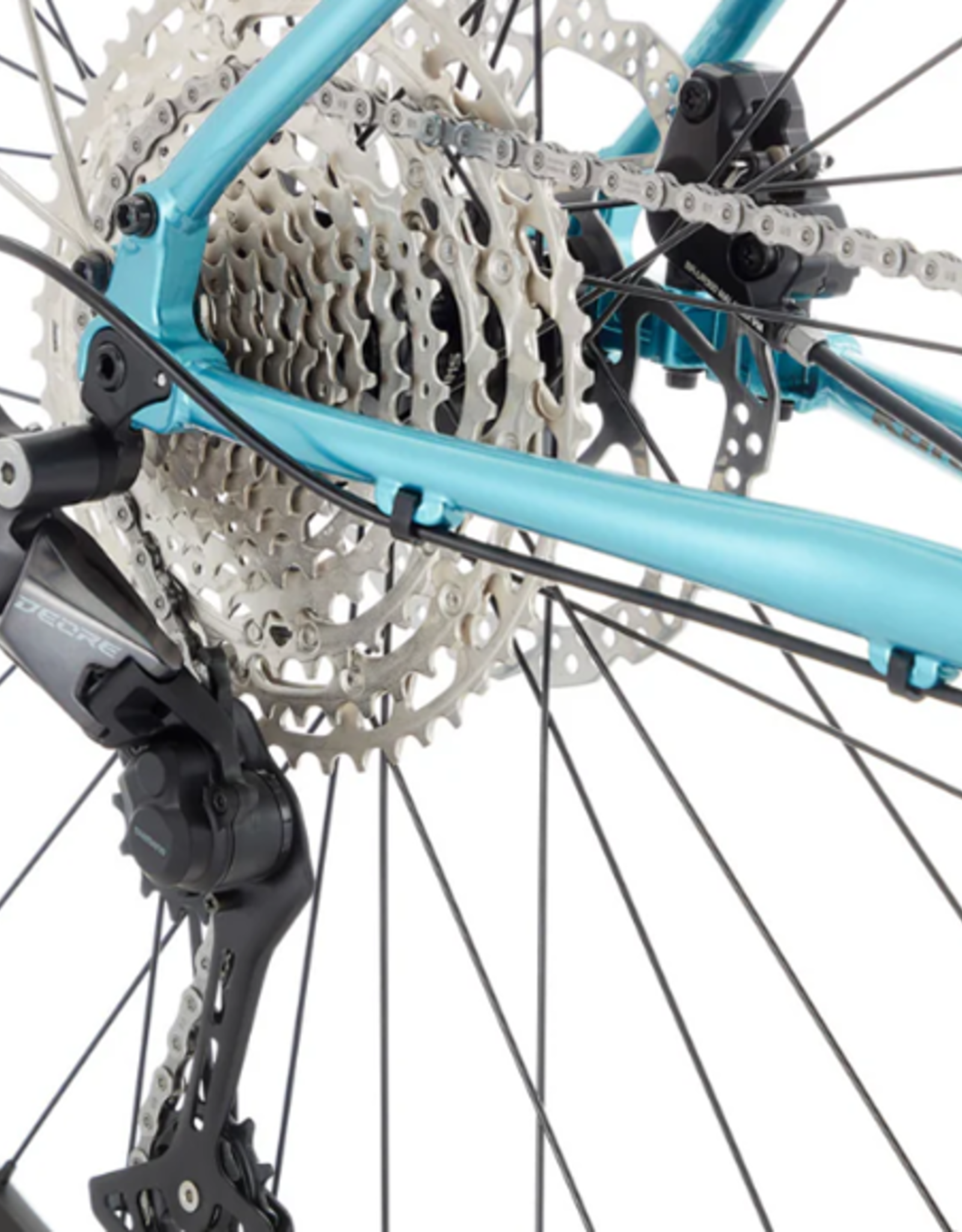

| Cassette: | SunRace 11-51t 12spd |
| Shifters: | Shimano Deore 12spd |
| Brakes: | Shimano Altus Flat mount calipers w/ Shimano RT54 180mm (centerlock) w/ Shimano Altus levers |
| Wheels/Rims: | Shimano 100x12mm (centerlock) (fr) Formula 142x12mm (centerlock) (rr) w/ WTB ST i23 TCS 2.0 rims |

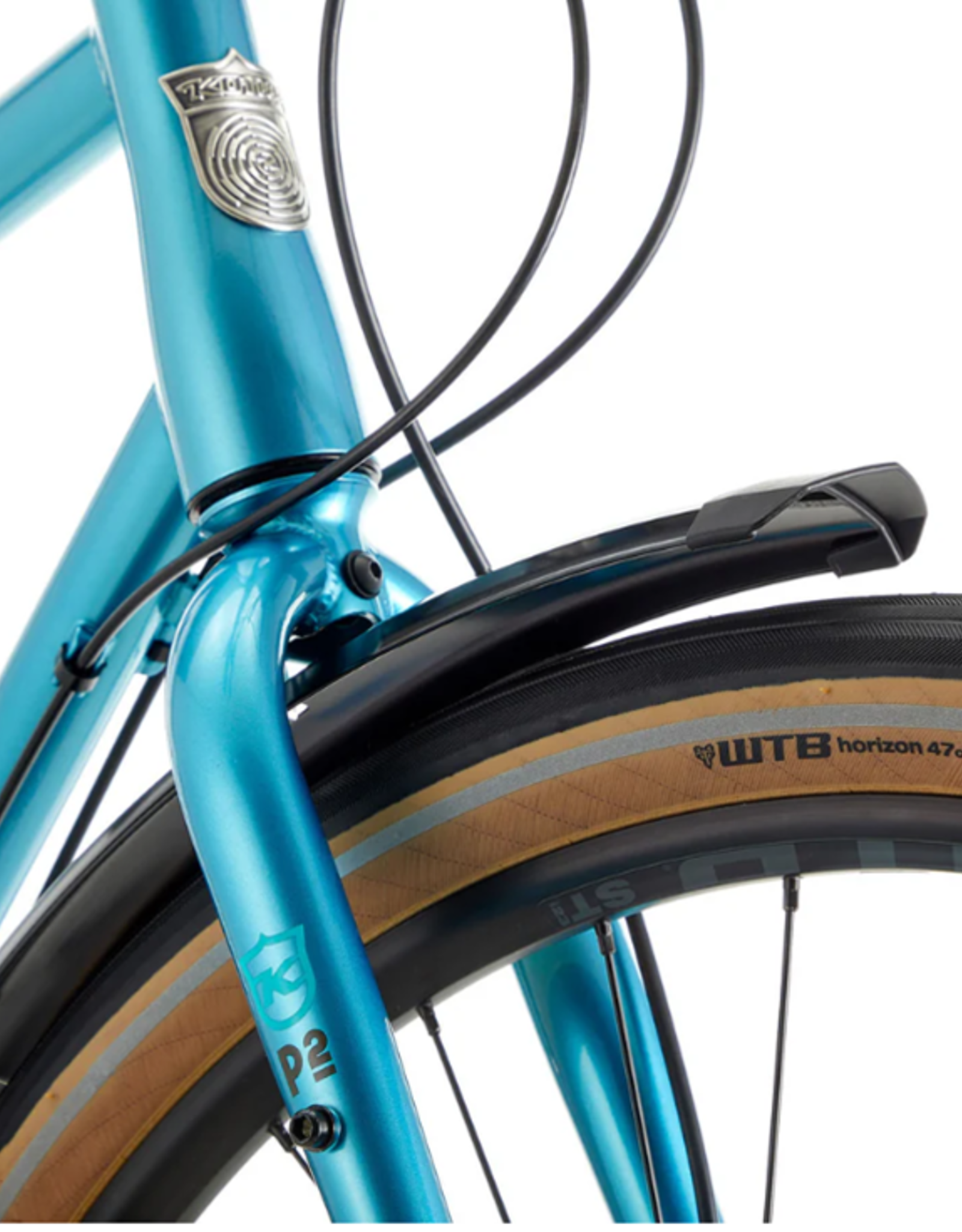

| Tires: | WTB Horizon Road Plus Comp w/ Puncture Protection 650x47c |

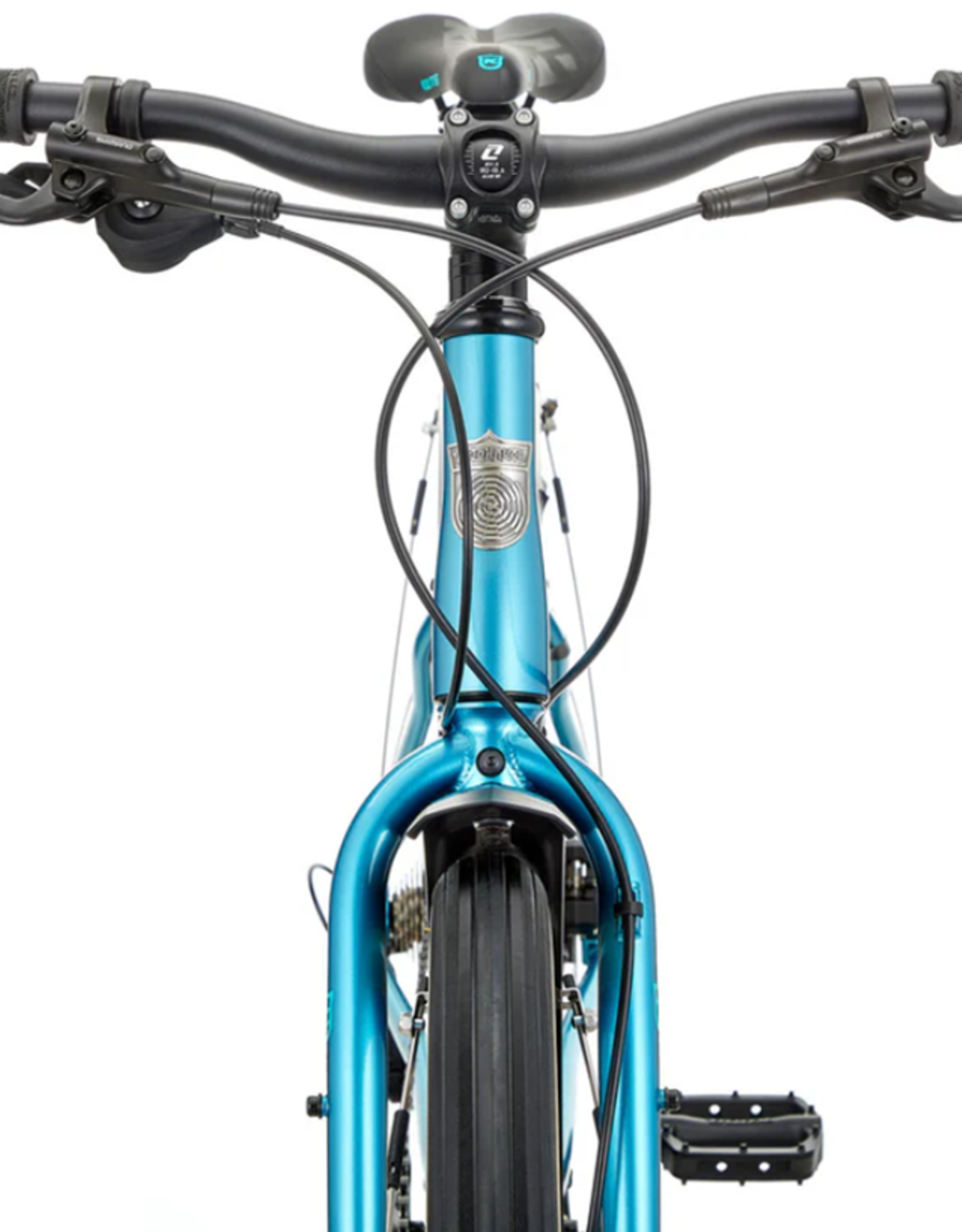

| Handlebar: | Kona Aluminum Riser |

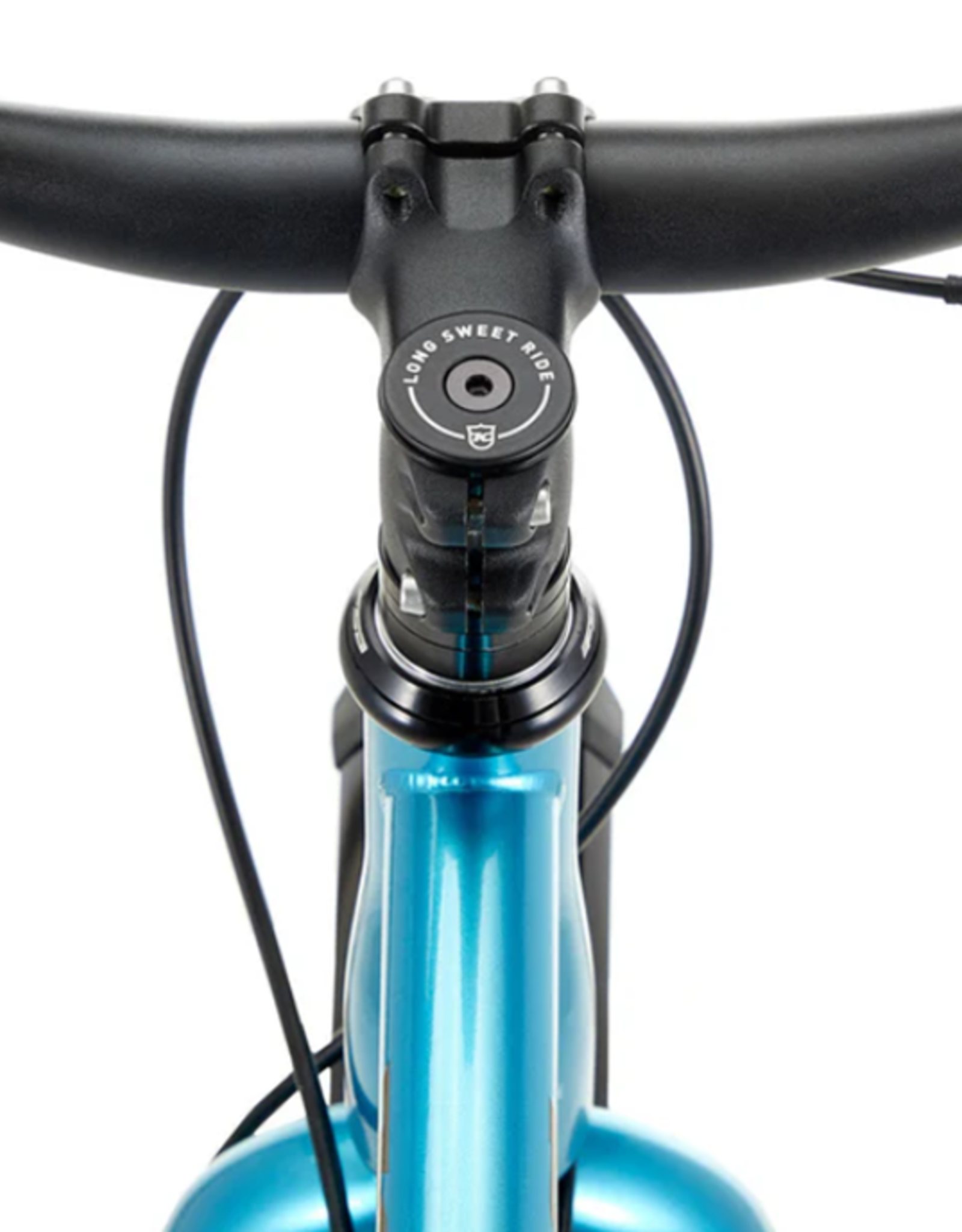

| Stem: | Kona Commuter |
| Saddle: | WTB Volt |
| Seatpost: | Kona Thumb w/Offset 27.2mm |
| Color: | Gloss Metallic Blue w/ Charcoal & Turquoise Decals |
| Misc: | Fenders w/ Mudflaps |
