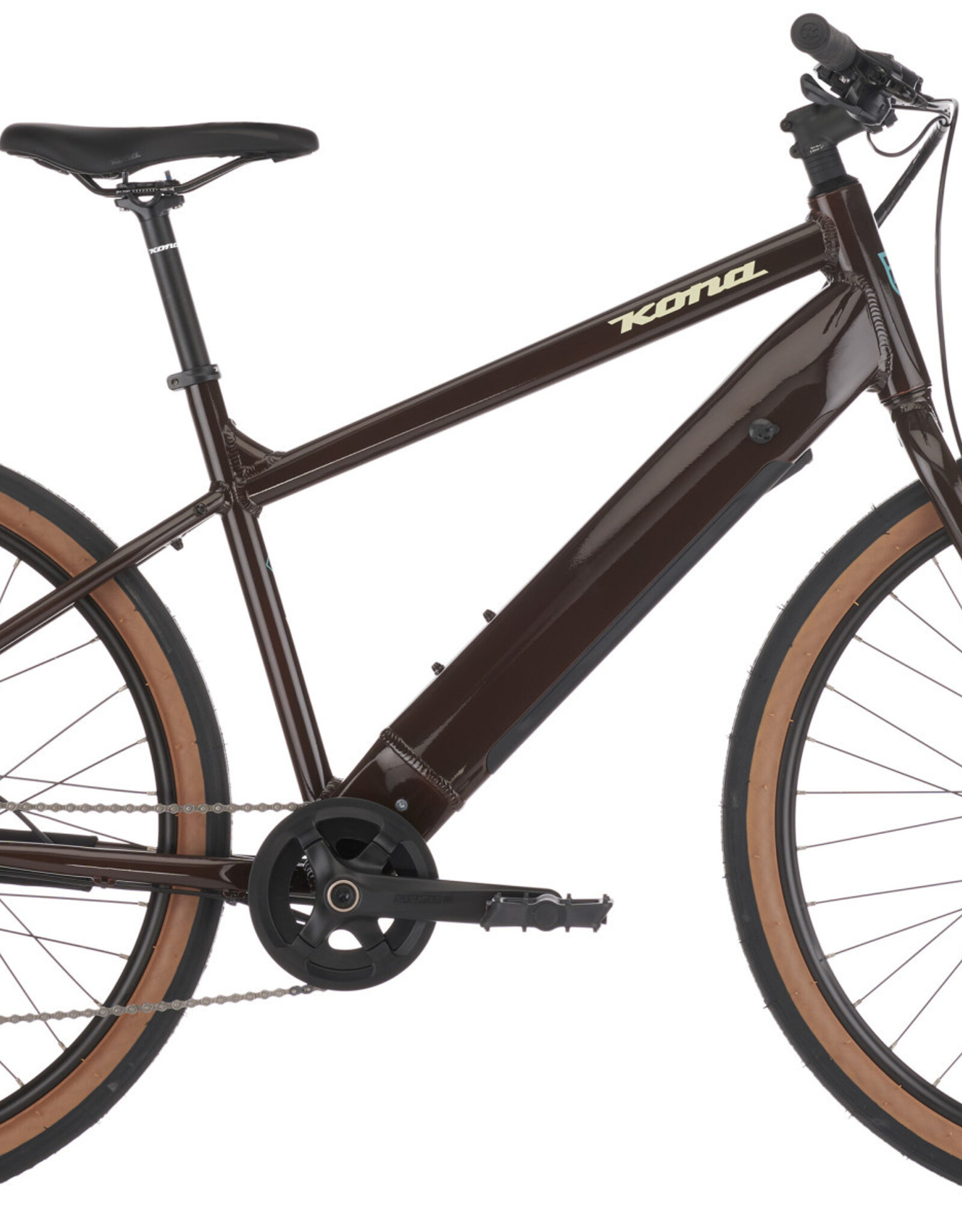

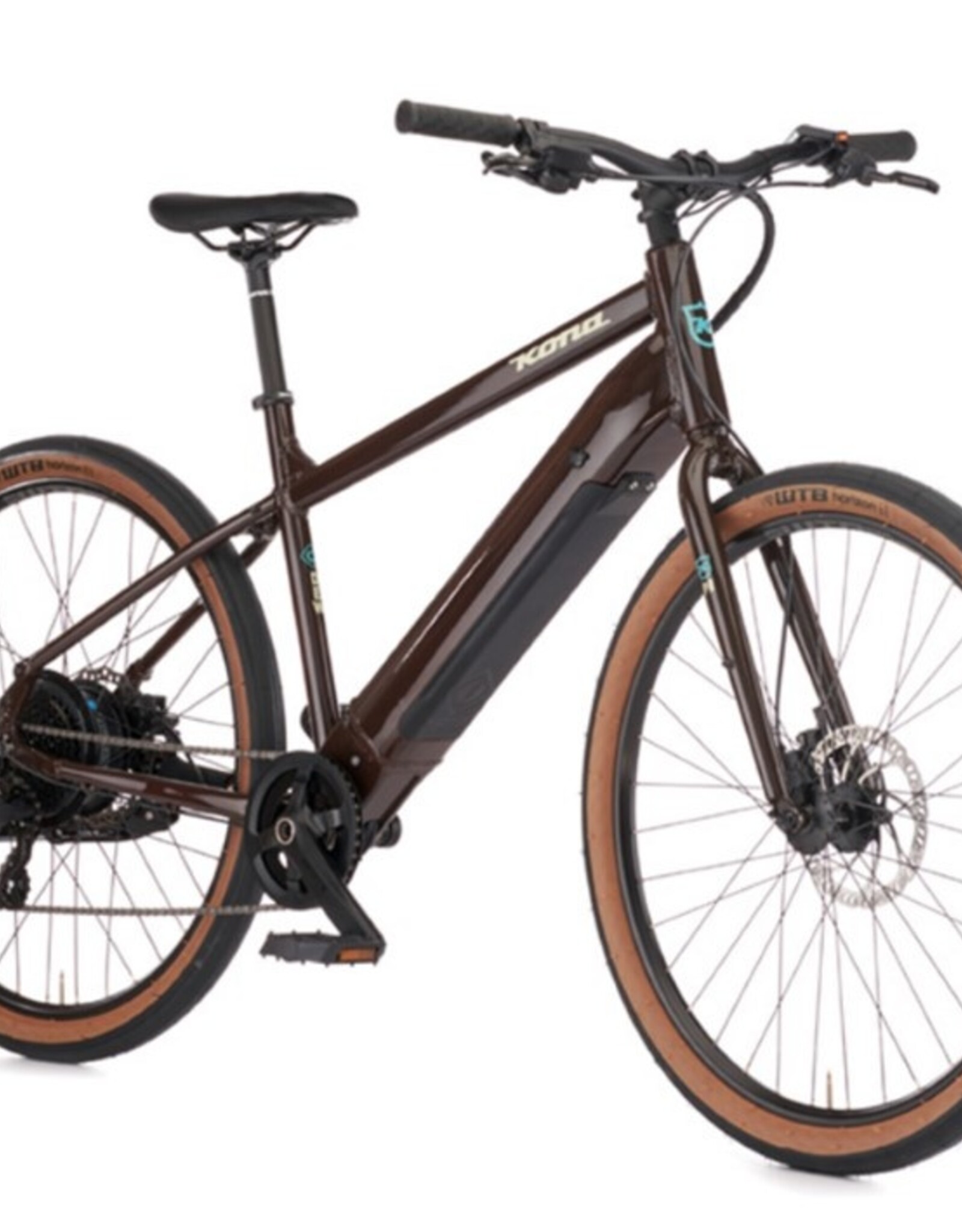

Kona Dew HD 36e E-Bike
| Availability: | In stock (1) |
Hub drive electric bike seeking ideal rider! Hi! My name is Dew HD! I’m affordable, super fun, stylish, extremely practical, easy-riding, helpful, full of light. You: loathe climbing hills, love (pedal) assistance, enjoy smiling, like going fast, don’t love working that hard if you don’t have to, need a companion to carry your groceries/beer/kids/dog/gear to and from wherever. Let’s fall in love!
Geometry mm
| Size | S | M | L | XL | |
| 1 | ST Length | 420 | 470 | 520 | 580 |
| 2 | TT Length | 550 | 597 | 636 | 686 |
| 3 | Reach | 398 | 423 | 439 | 465 |
| 4 | Stack | 568 | 606 | 643 | 681 |
| 5 | Standover | 685 | 720 | 756 | 797 |
| 6 | HT Angle | 70.0 | 70.0 | 70.0 | 70.0 |
| 7 | HT Length | 145 | 185 | 225 | 265 |
| 8 | ST Angle | 75.0 | 74.0 | 73.0 | 72.0 |
| 9 | CS Length | 450 | 450 | 450 | 450 |
| 10 | BB Drop | 60 | 60 | 60 | 60 |
| 11 | BB Height | 282 | 282 | 282 | 282 |
| 12 | Wheelbase | 1082 | 1121 | 1150 | 1190 |
| 13 | Front Center | 639 | 677 | 707 | 747 |
| 14 | Fork Length | 409 | 409 | 409 | 409 |
| 15 | Fork Offset | 50 | 50 | 50 | 50 |

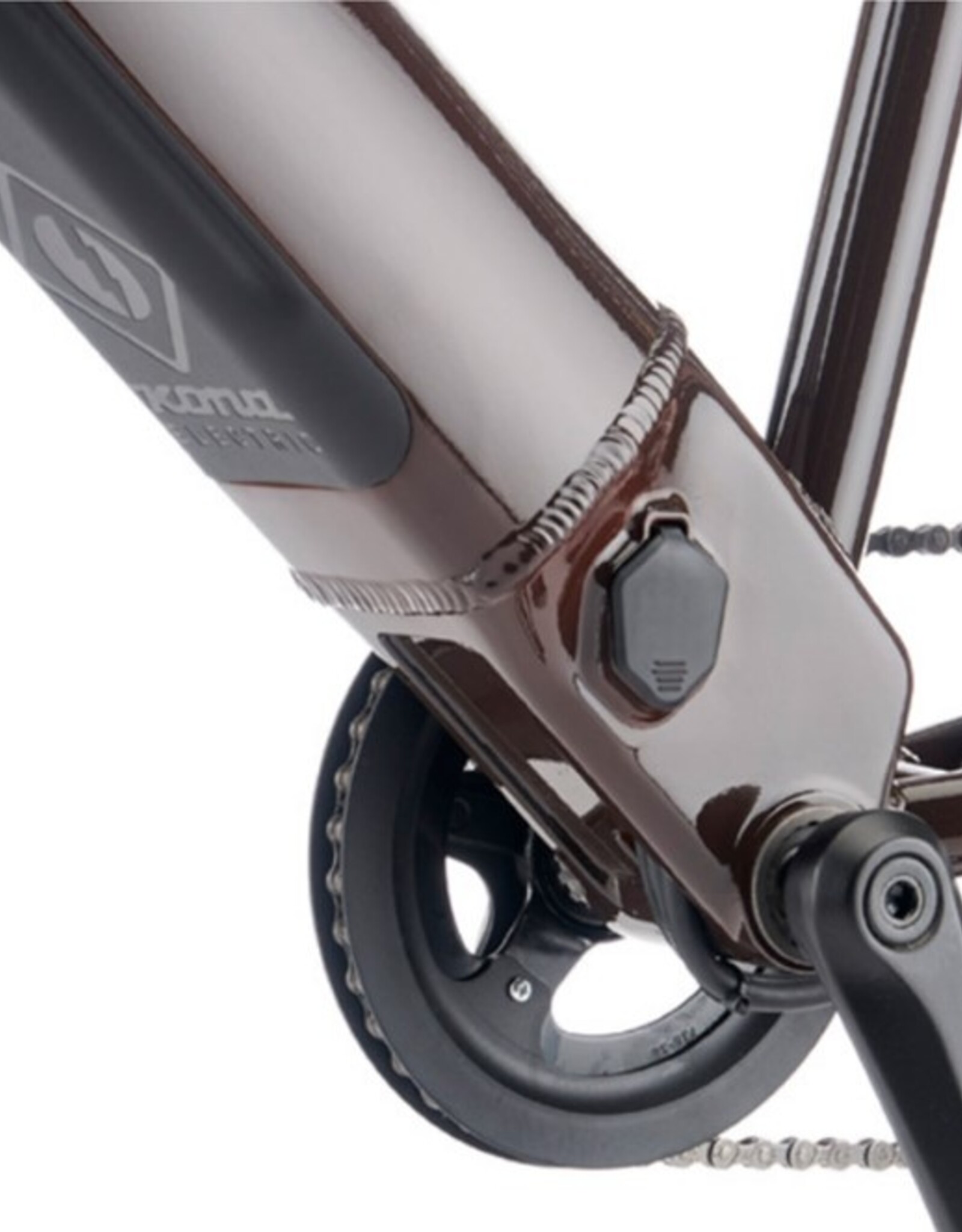

| Frame: | Kona 6061 Aluminum Butted |
| Fork: | Kona Project Two Aluminum Disc |
| Derailleurs (F/R): | (fr) N/A (rr) Shimano TX |

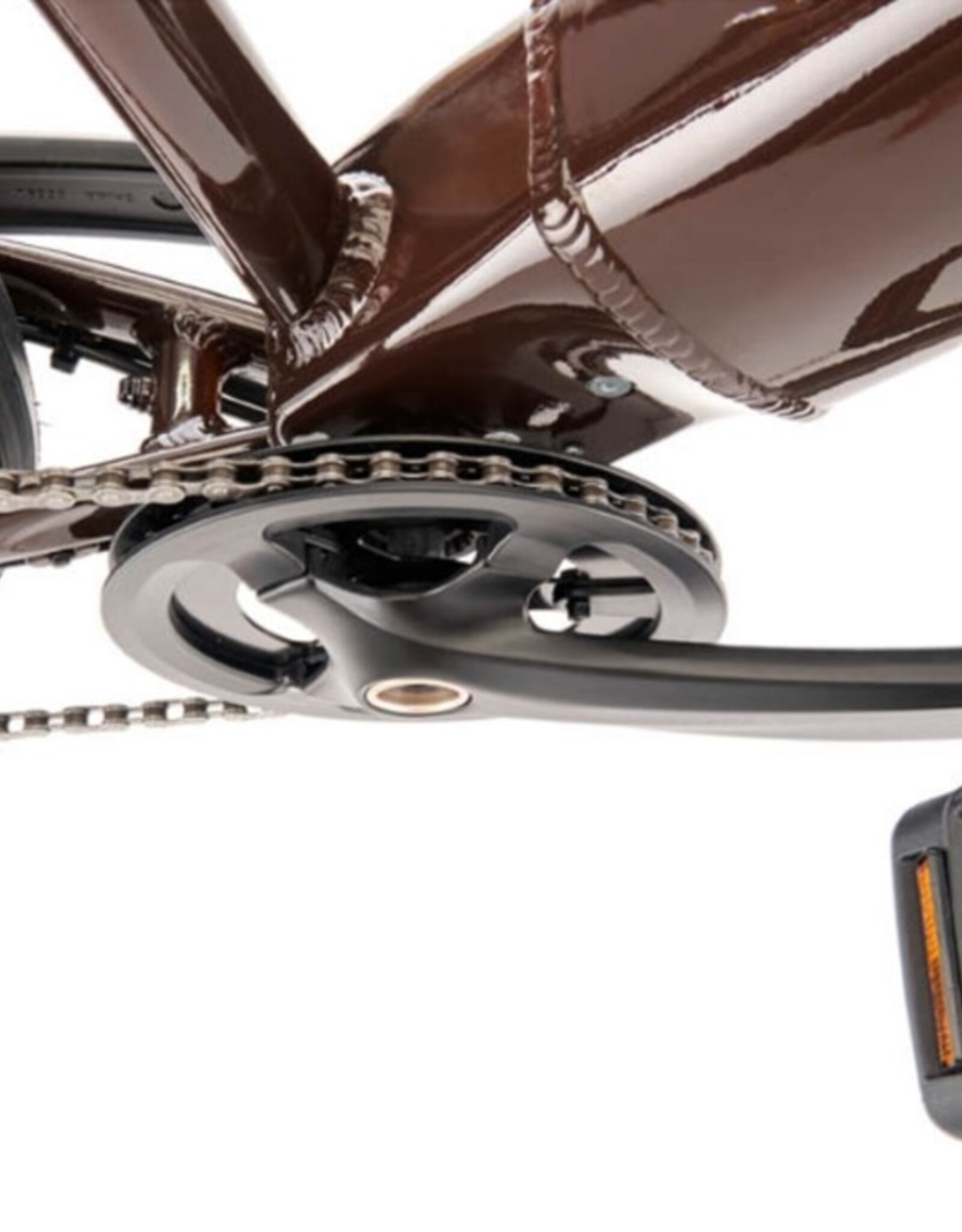

| Crankset: | Suntour Crankarms / 38t |
| Cassette: | Shimano Altus 11-32t 8spd |
| Shifters: | Shimano Altus |
| Brakes: | Tektro HDM275 Hydraulic / Tektro TR180 180mm |
| Wheels/Rims: | WTB SX19 w/ Stainless Black 14g/13g w/ (fr) Shimano 100x9mm (rr) SR Suntour HD 20MPH |
| Tires: | WTB Horizon Comp 650x47c |
| Handlebar: | Kona Aluminum Riser |
| Stem: | Kona Control |
| Saddle: | Kona Commuter |
| Seatpost: | Kona Commuter 27.2mm |
| Grips: | Kona Key Grip Slip on |

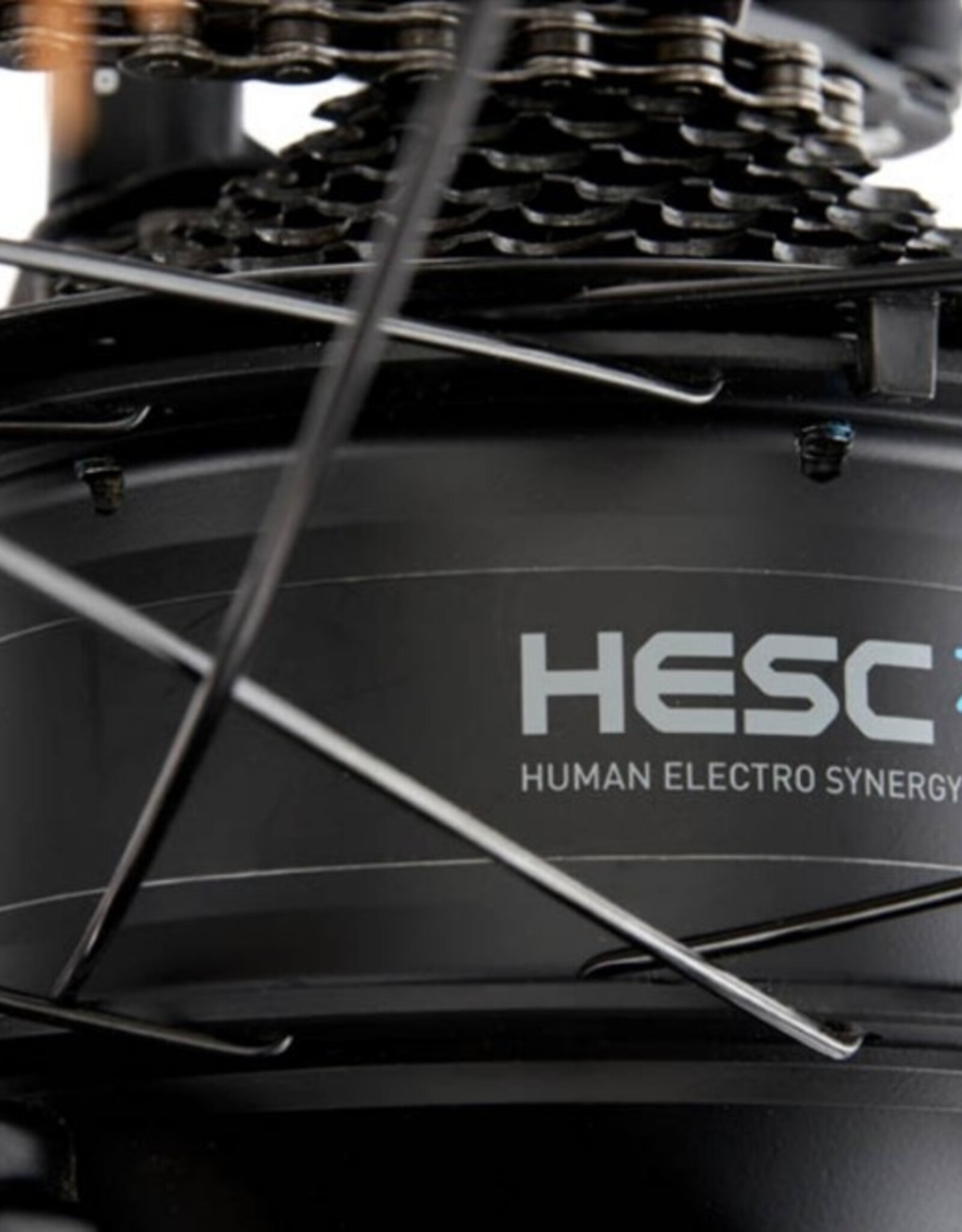

| Drive Unit: | SR Suntour HD 20MPH |
| Battery: | |
| Display: | SR Suntour OLED Display |
| Charger: | Phylion 2A |
| Colour: | Gloss Thunder w/ Sandal & Eris Decals |
| Sizes: | S, M, L, XL |
