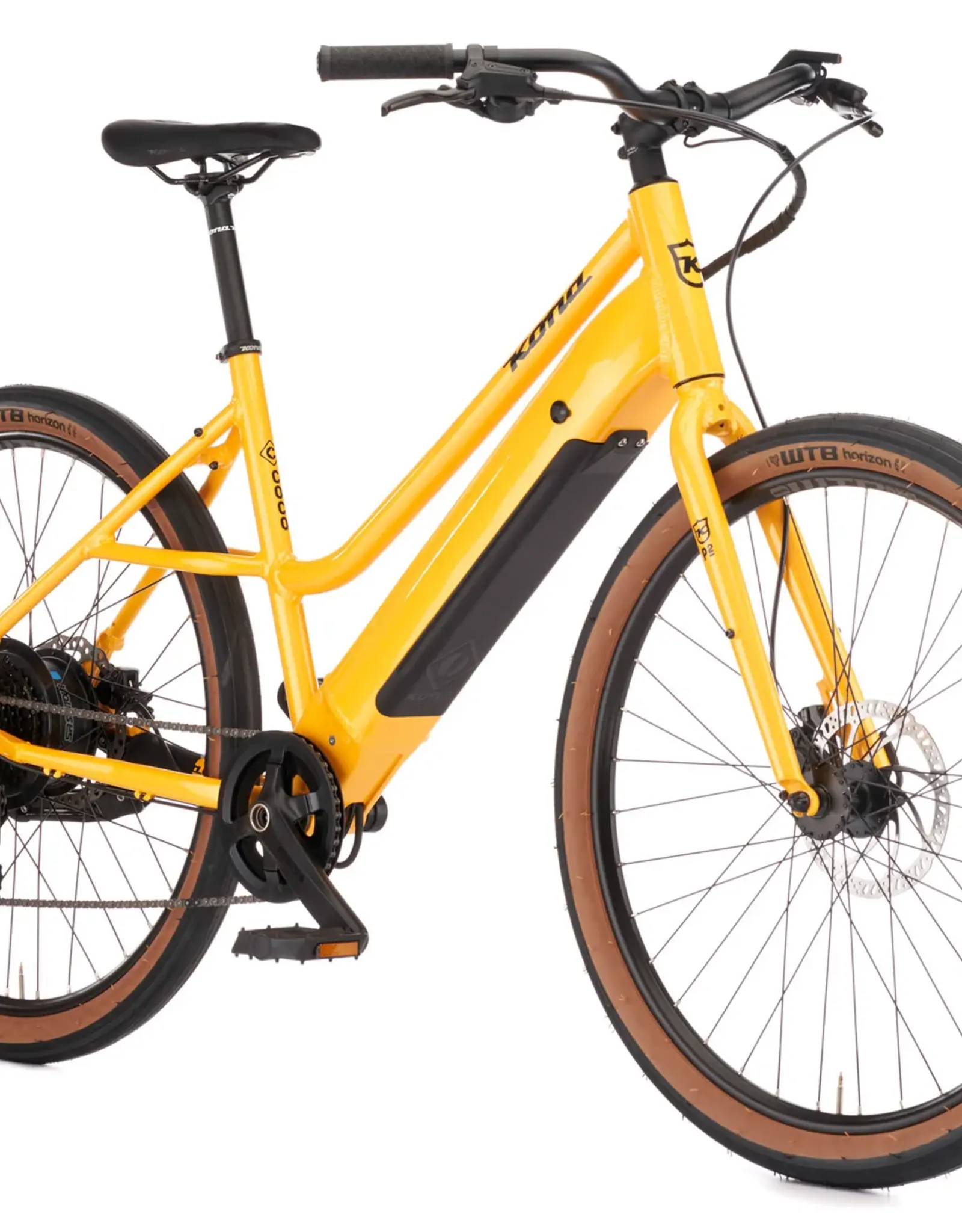

Kona Coco HD (36e) E-Bike
| Availability: | In stock (1) |
Coco HD
There’s style and then there’s smart style. The Coco HD is the best of both worlds. With an efficient hub drive motor that makes every ride enjoyable, it’s an easy solution to a daily commute. Its step-through design and head-turning bold color is the perfect accessory for someone looking to enjoy their rides without the hassle of a tall top tube. Take it to brunch, to the park, or take it to work. The Coco HD is a game-changer for the stylish rider.
Geometry
| Size | S | M | L | |
| 1 | ST Length | 420 | 470 | 520 |
| 2 | TT Length | 553 | 597 | 636 |
| 3 | Reach | 395 | 423 | 439 |
| 4 | Stack | 591 | 606 | 643 |
| 5 | Standover | 584 | 584 | 591 |
| 6 | HT Angle | 70.0 | 70.0 | 70.0 |
| 7 | HT Length | 170 | 185 | 225 |
| 8 | ST Angle | 75.0 | 74.0 | 73.0 |
| 9 | CS Length | 450 | 450 | 450 |
| 10 | BB Drop | 60 | 60 | 60 |
| 11 | BB Height | 282 | 282 | 282 |
| 12 | Wheelbase | 1088 | 1121 | 1150 |
| 13 | Front Center | 644 | 677 | 707 |
| 14 | Fork Length | 409 | 409 | 409 |
| 15 | Fork Offset | 50 | 50 | 50 |

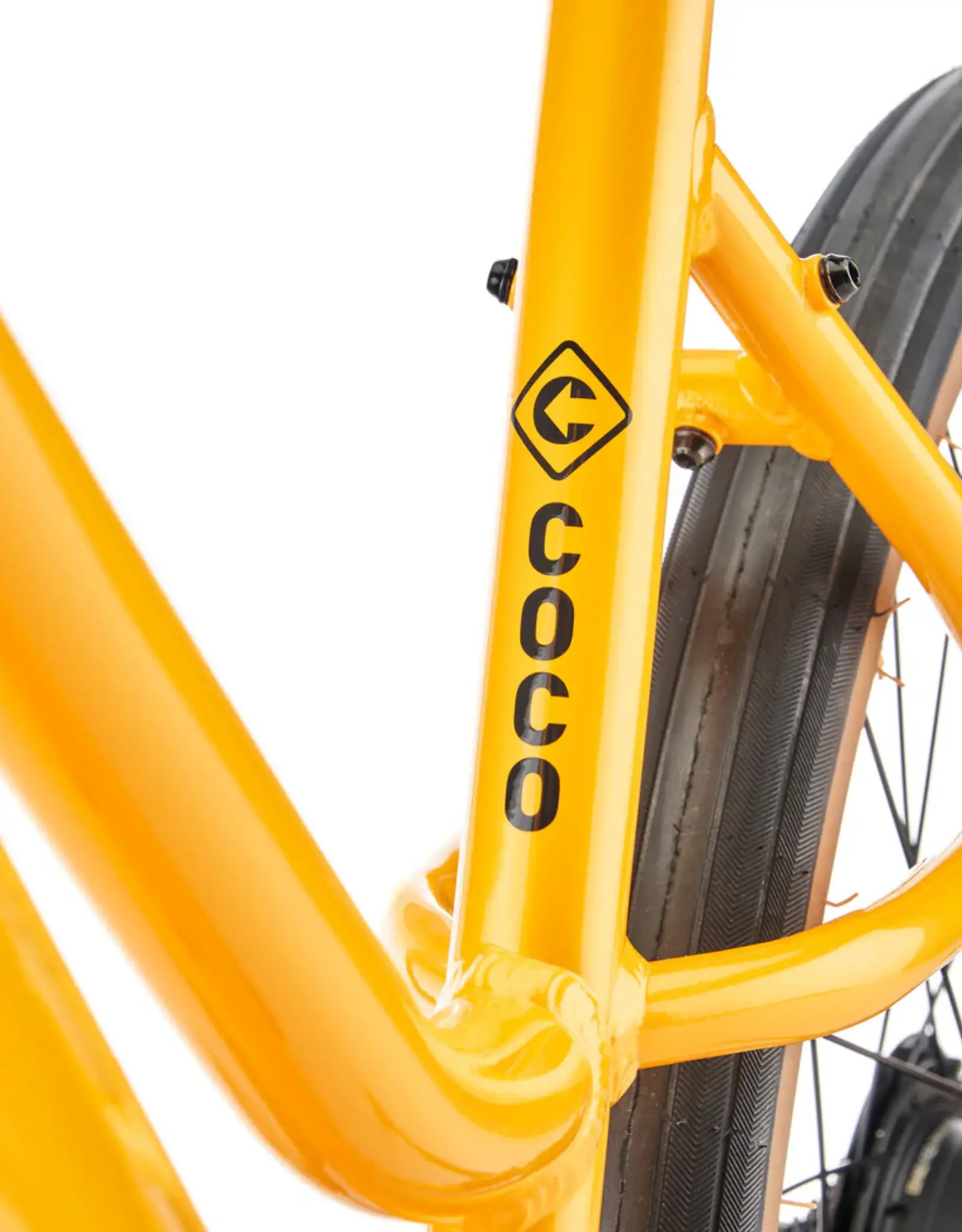

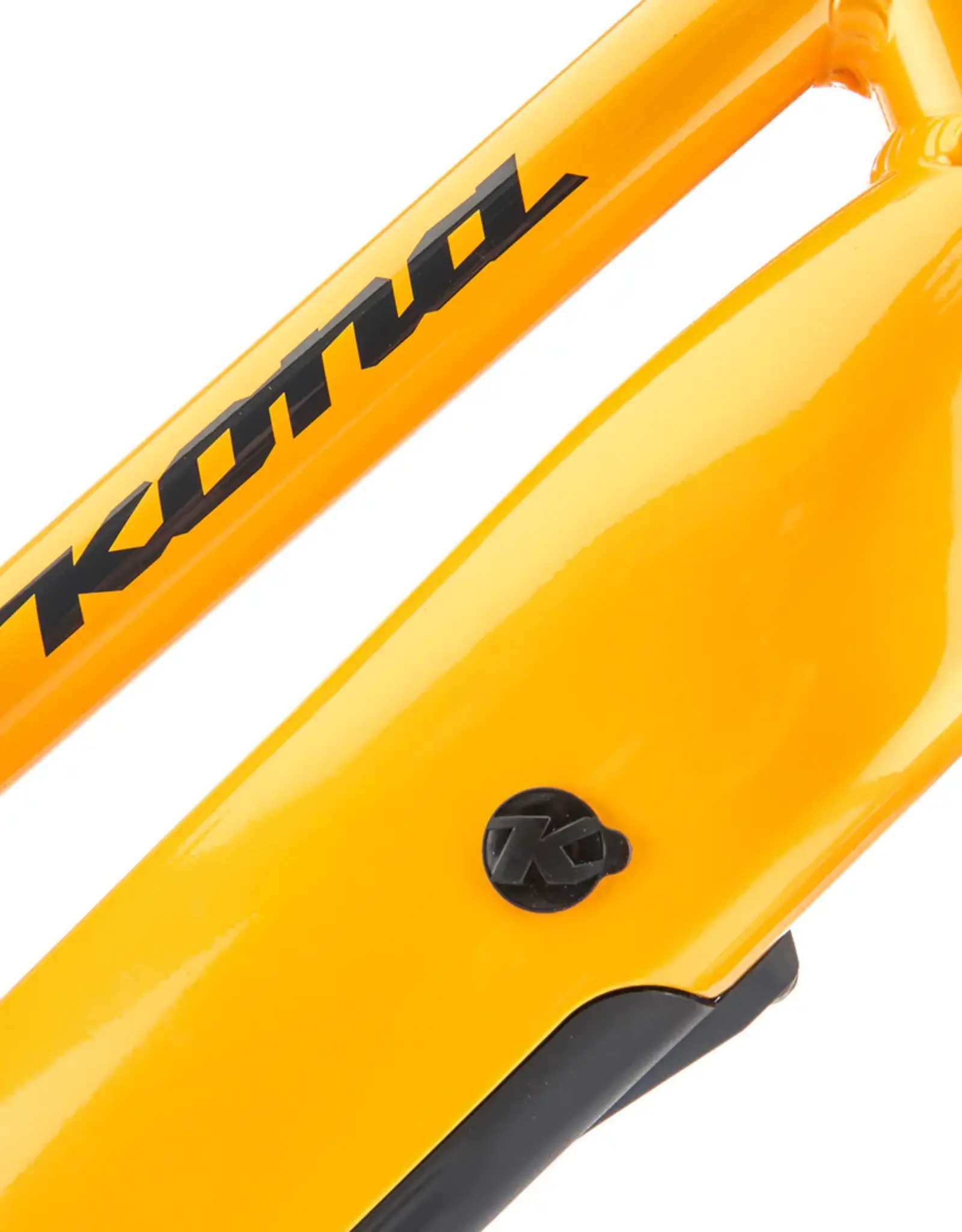

| Frame: | Kona 6061 Aluminum Butted |

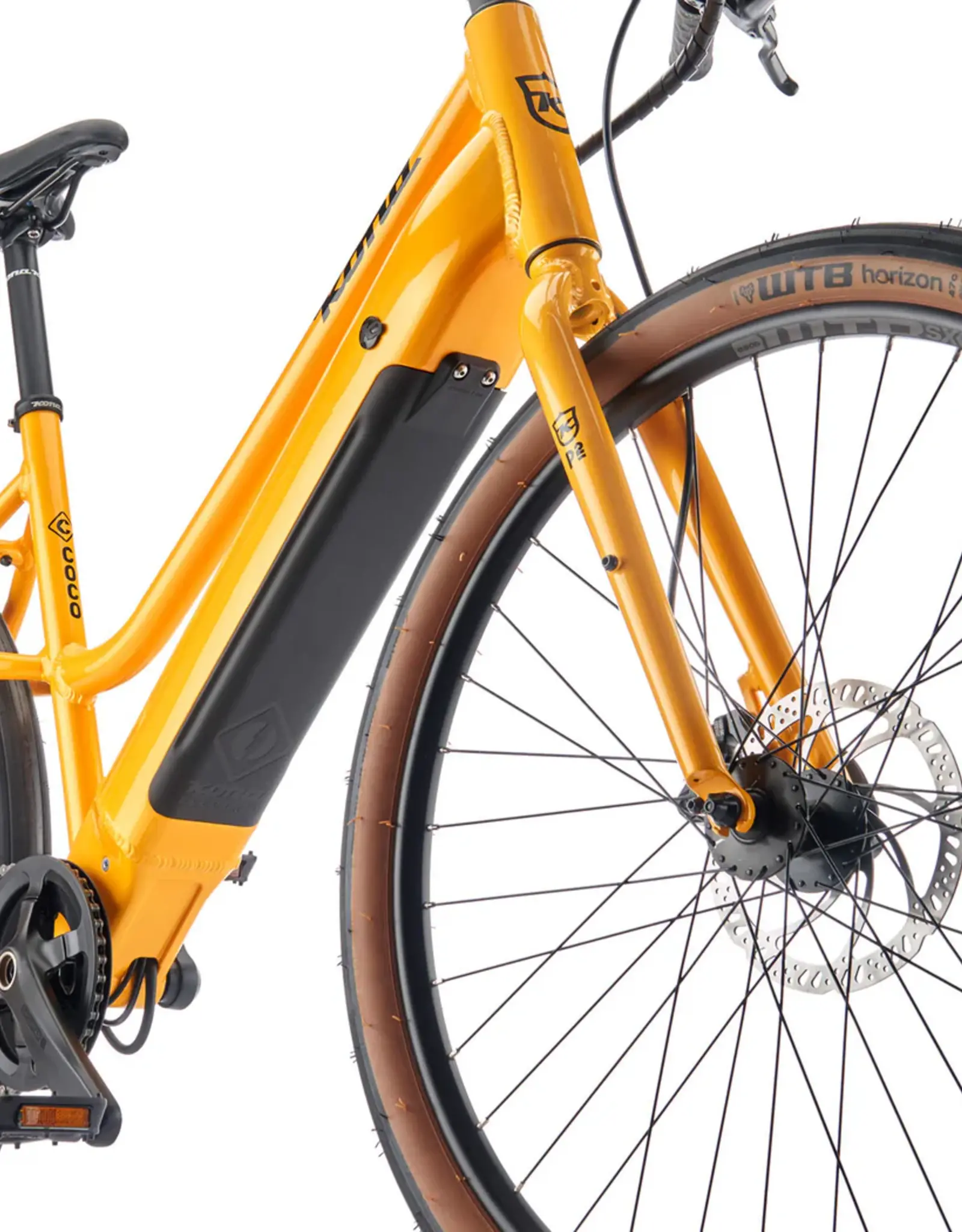

| Fork: | Kona Project Two Aluminum Disc |

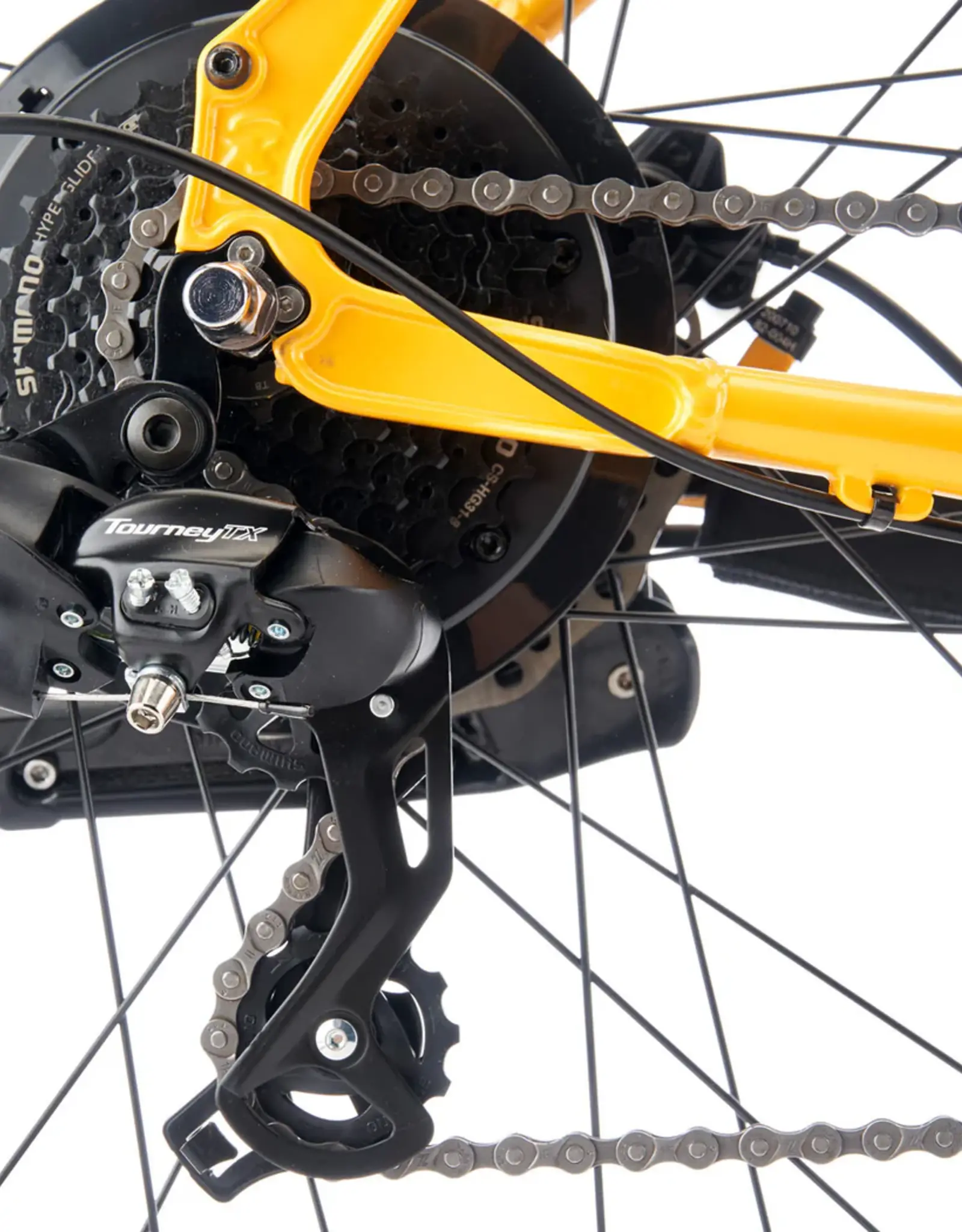

| Derailleurs (F/R): | Shimano TX (rear) |

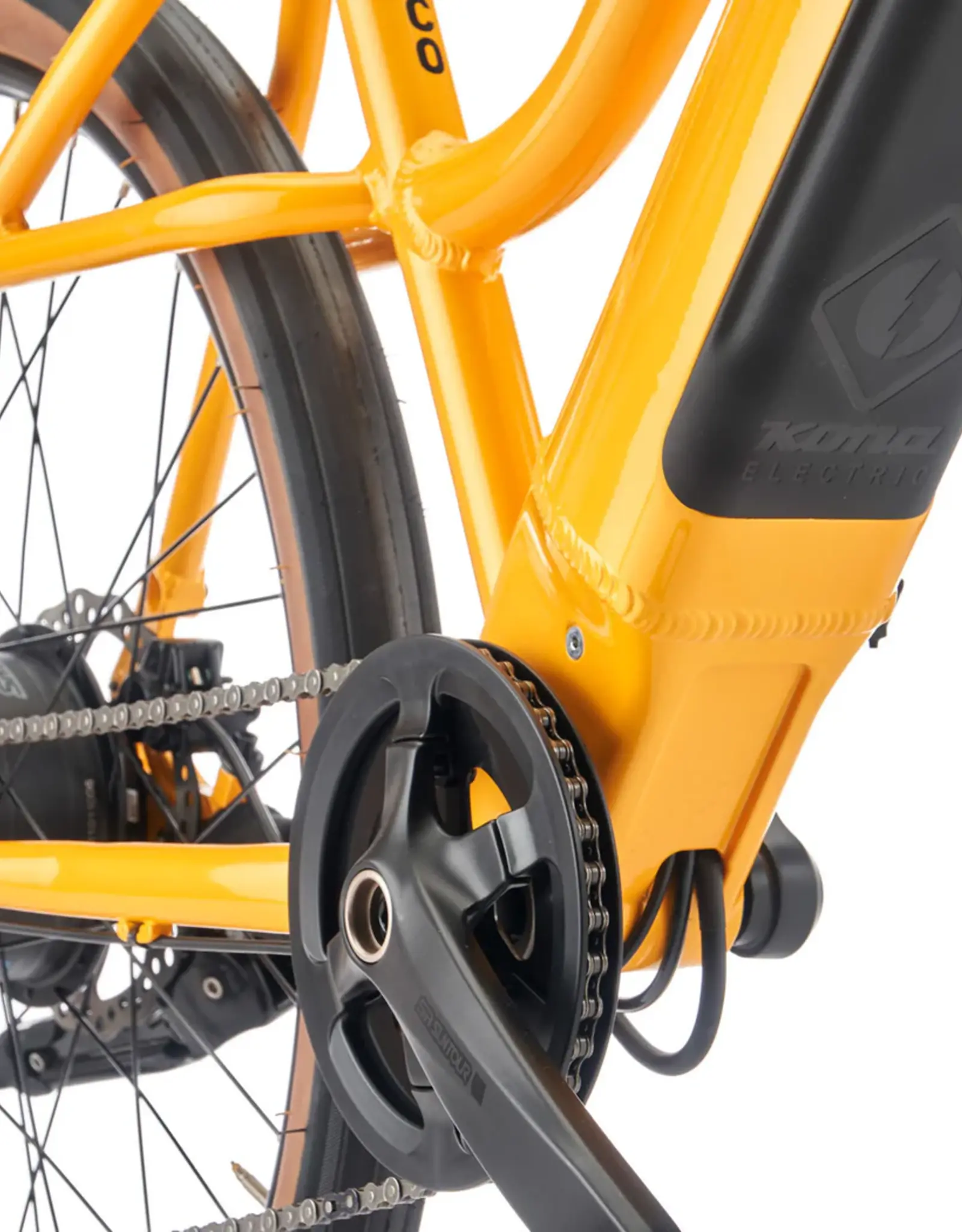

| Crankset: | Suntour crankarms w/38t chainring |
| Cassette: | Shimano Altus 11-32t 8spd |
| Shifters: | Shimano Altus |

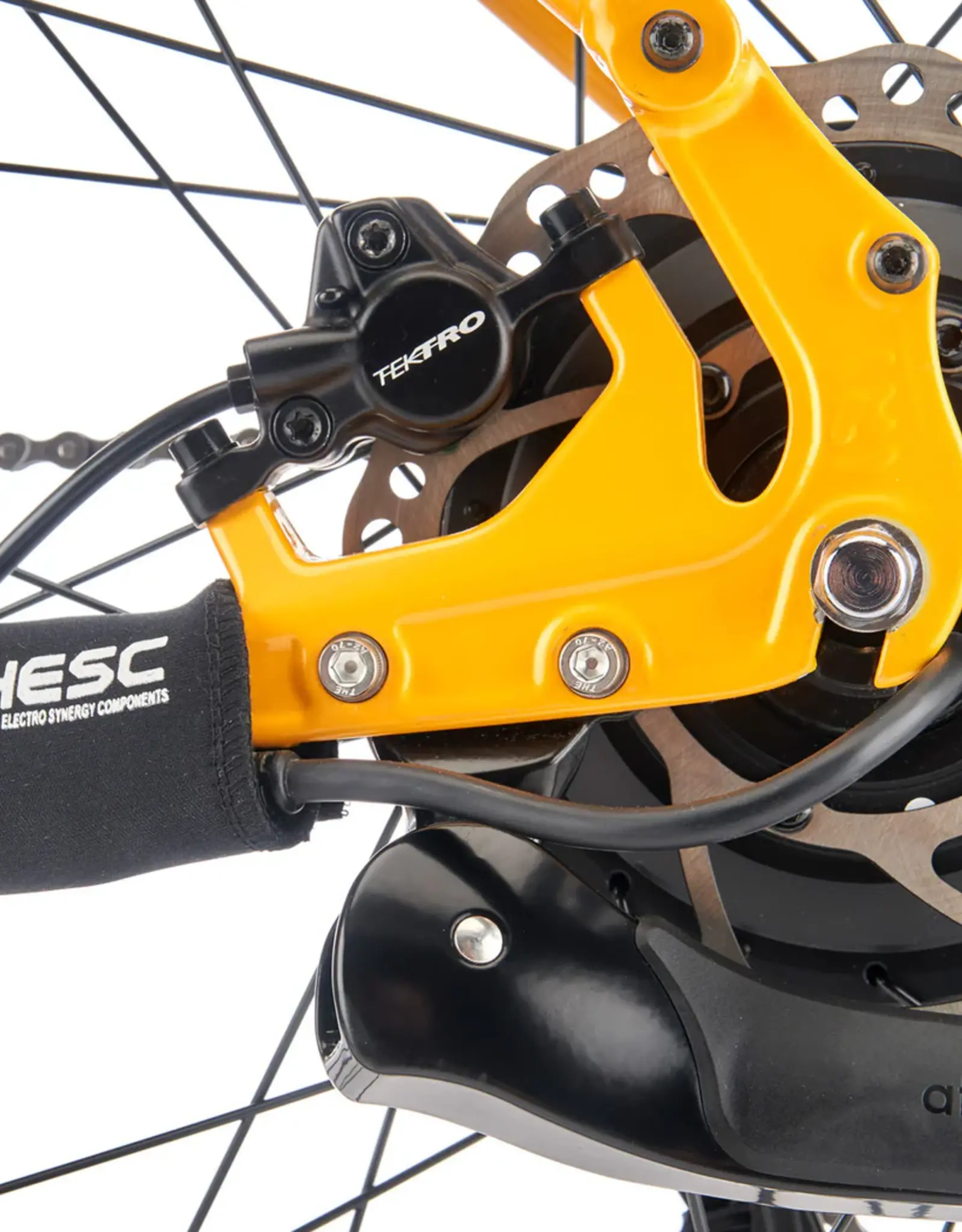

| Brakes: | Tektro HDM275 Hydraulic Levers, w/Tektro HDM275 Hydraulic Calipers w/Tektro TR180 180mm Rotors |
| Wheels/Rims: | WTB SX19 rims w/Stainless Black 14g/13g spokes w/Shimano 100x9mm (fr) & SR Suntour HD 20MPH (rr) |
| Tires: | WTB Horizon Comp 650x47c |
| Handlebar: | Kona Handplant |
| Stem: | Kona Commuter |
| Saddle: | Kona Commuter |
| Seatpost: | Kona Commuter 27.2mm |
| Grips: | Kona Key Grip Slip on |

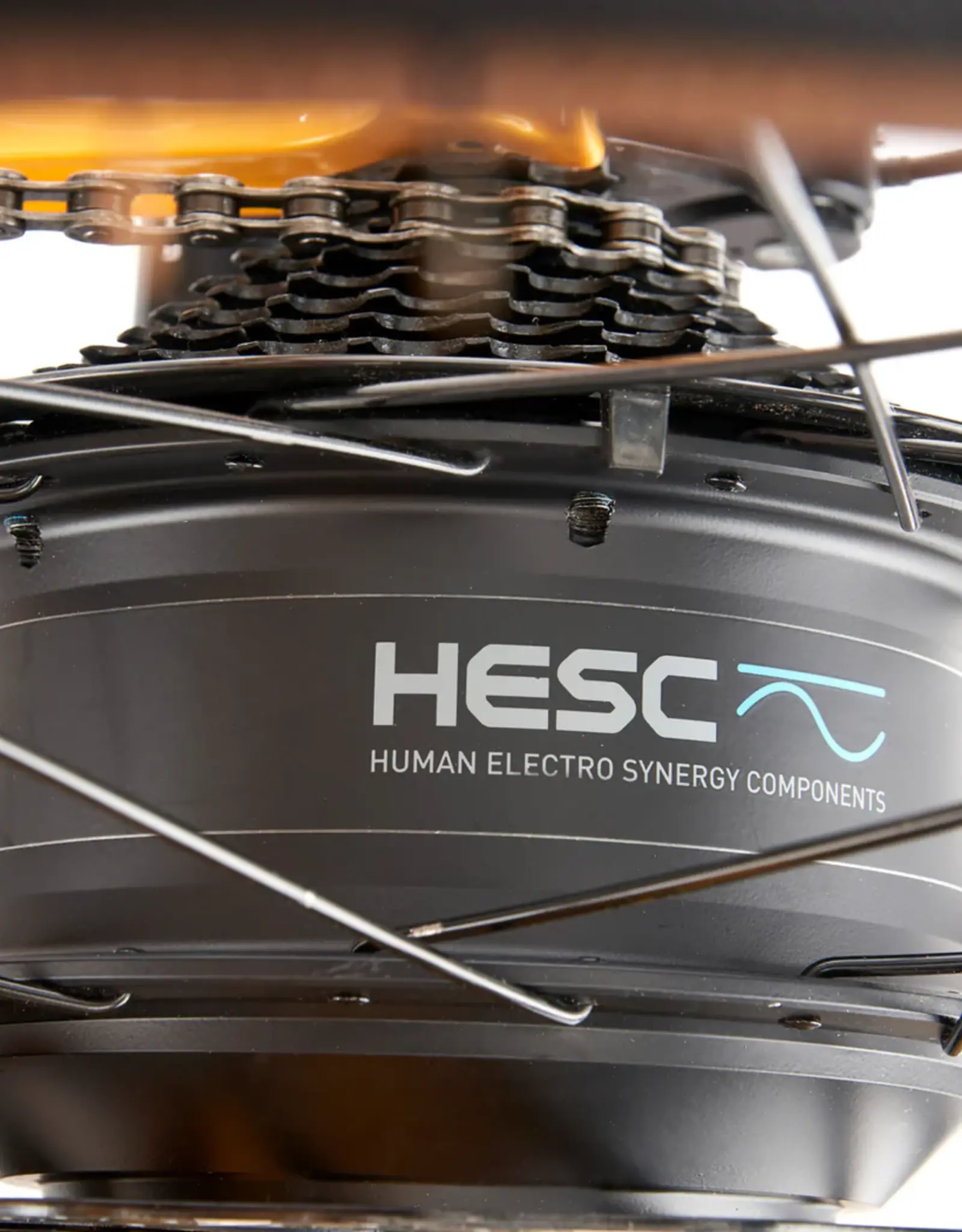

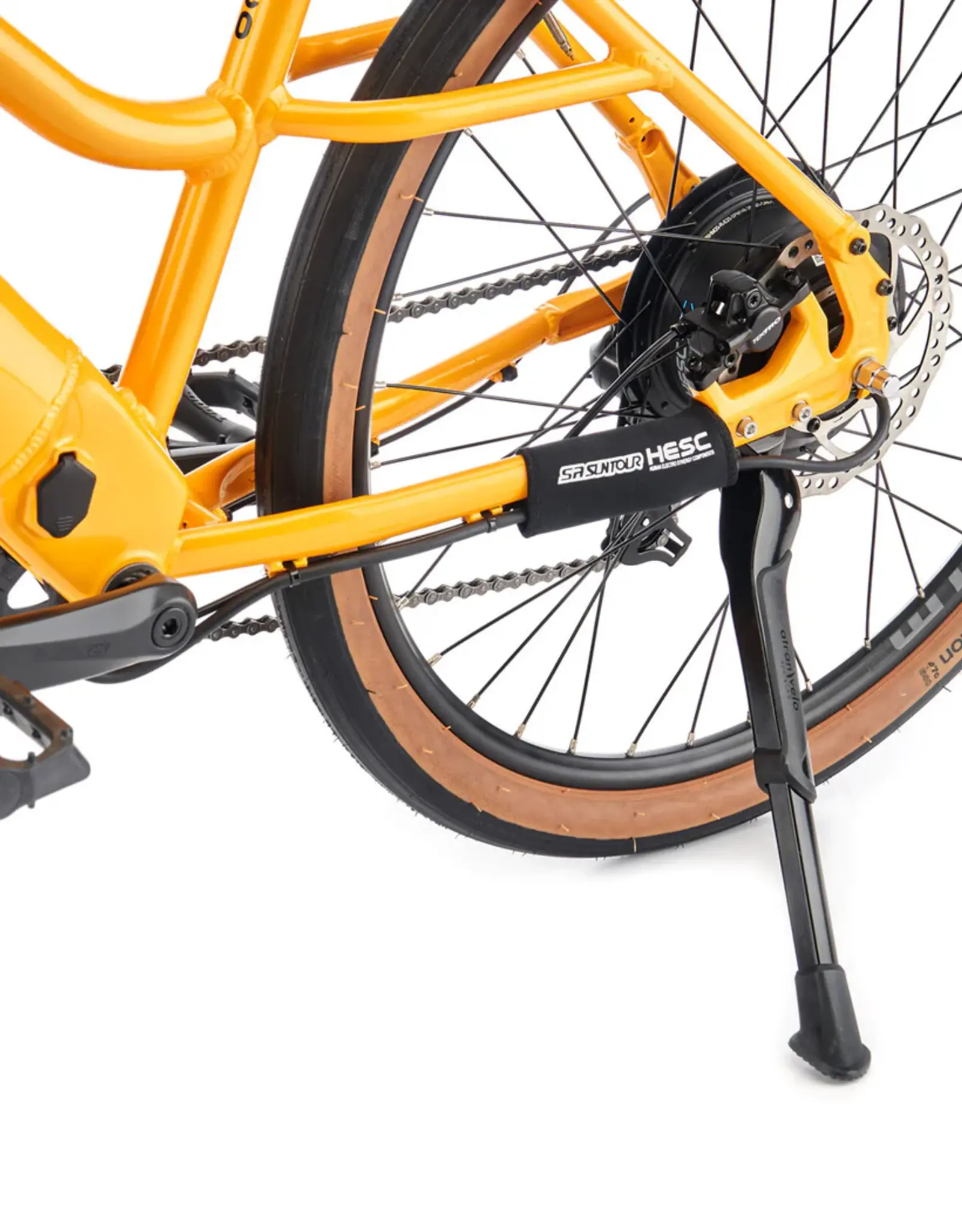

| Drive Unit: | SR Suntour HD 20MPH |

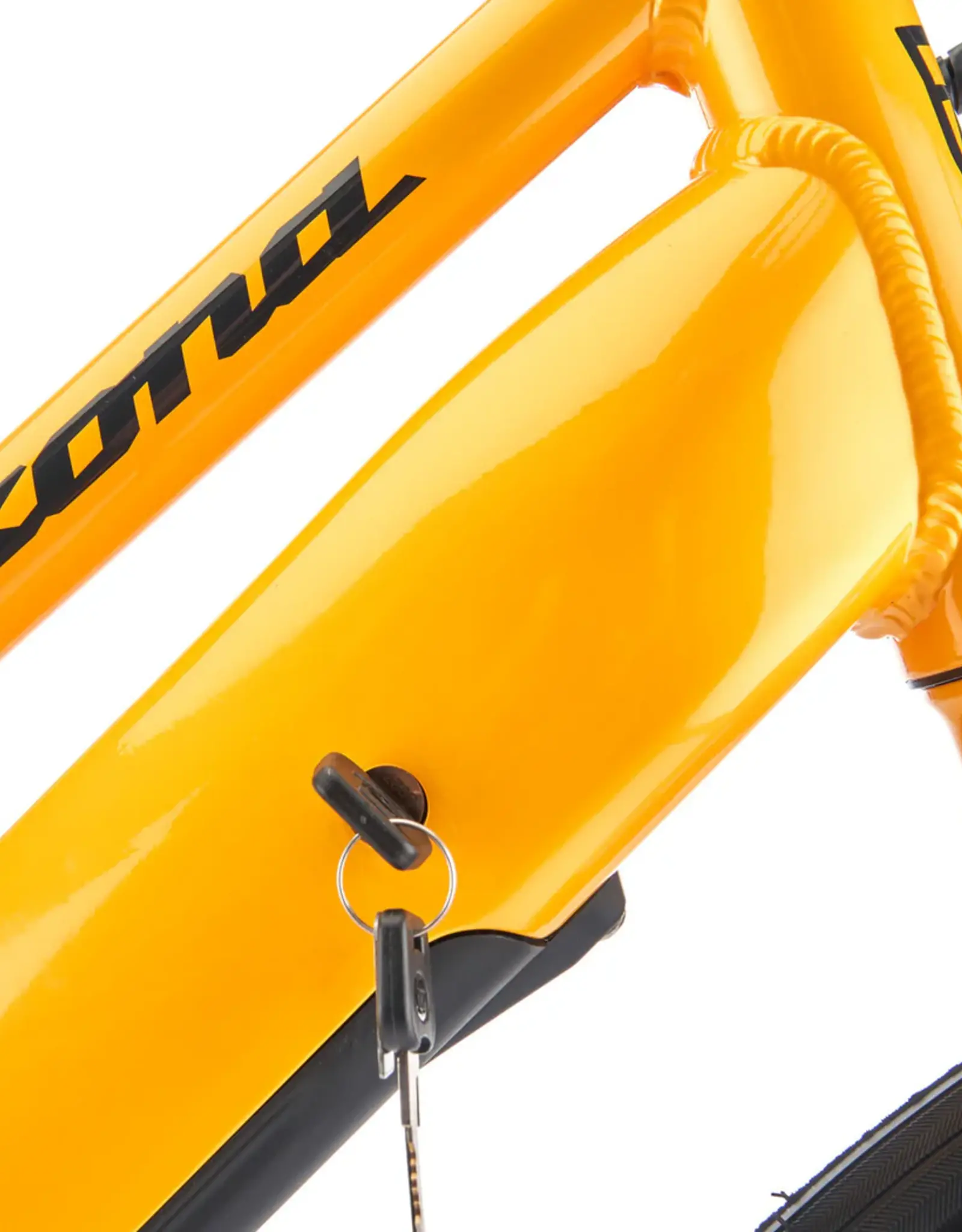

| Battery: | Phylion 418Wh |
| Display: | SR Suntour OLED Display |

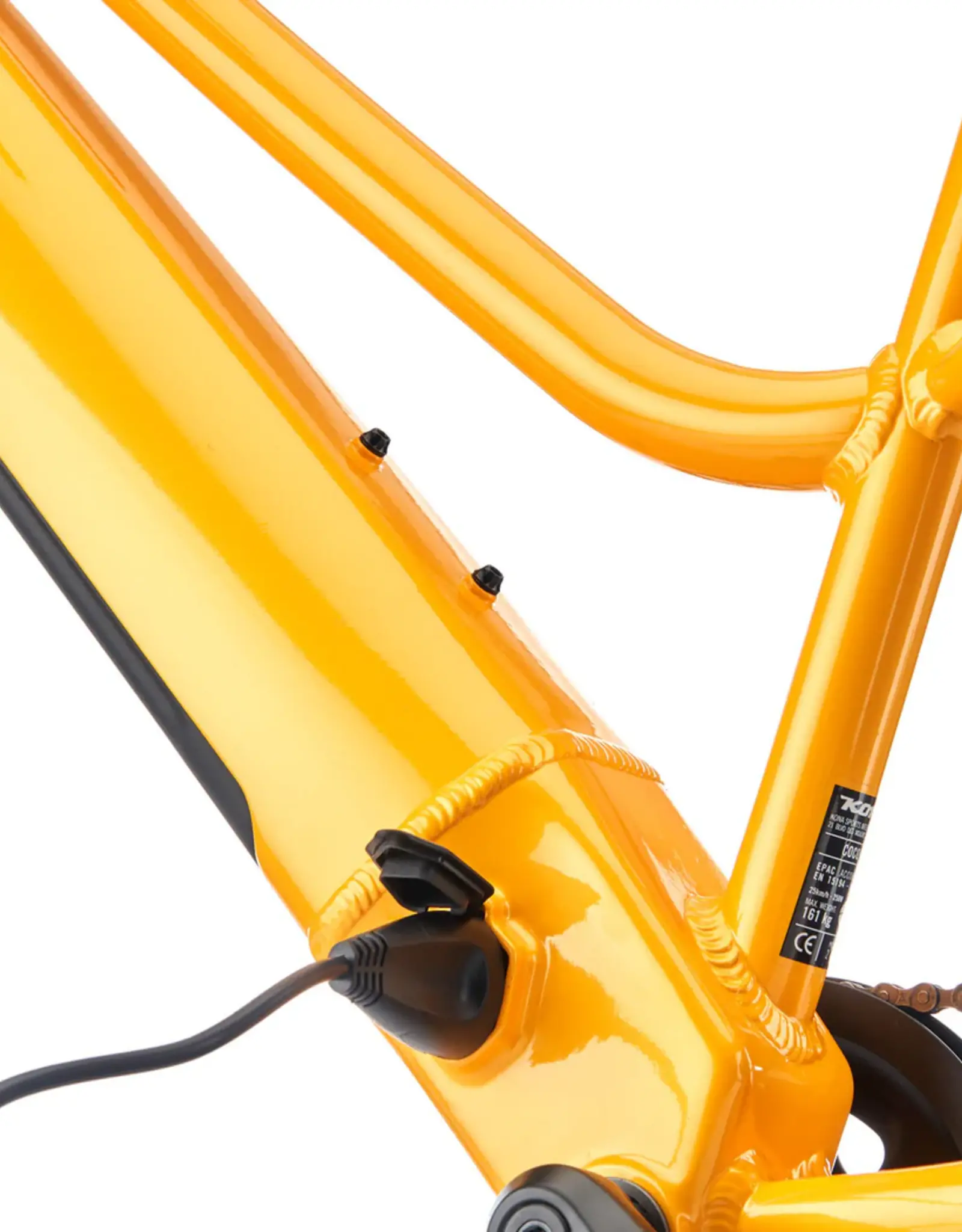

| Charger: | Phylion 2A |
| Colour: | Gloss Metallic Yellow w/ Charcoal Decals |
| Sizes: | Small, Medium, Large |
