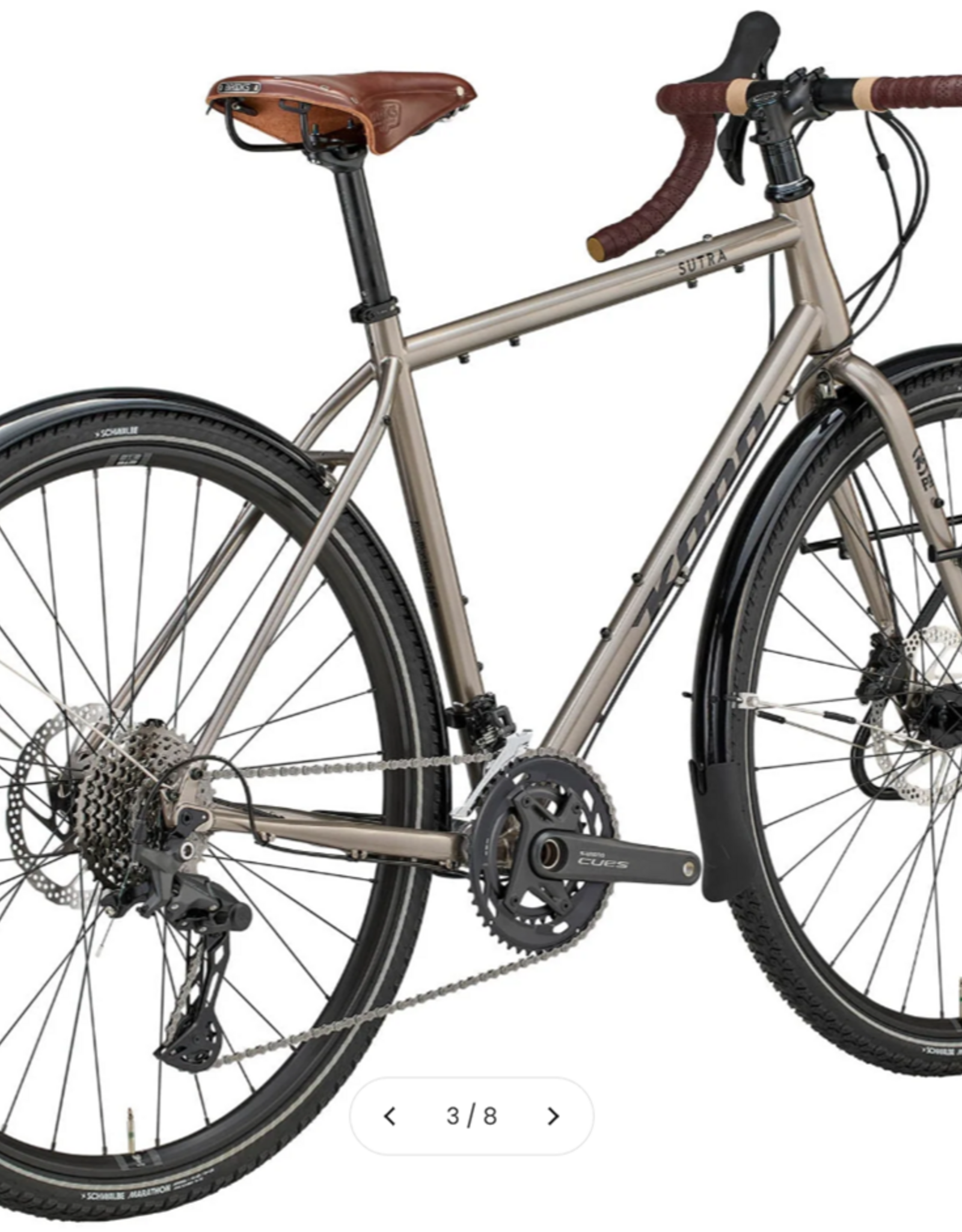

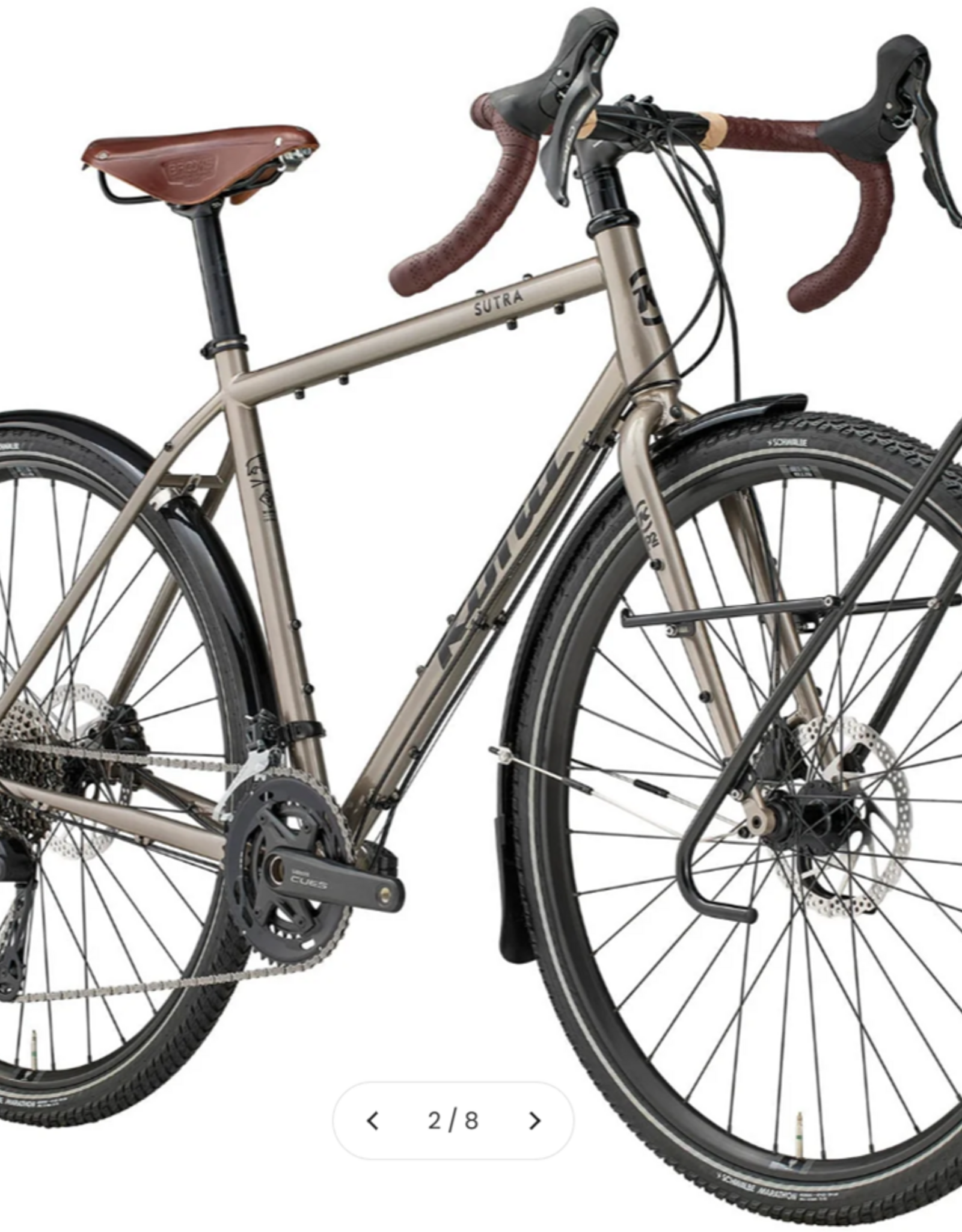

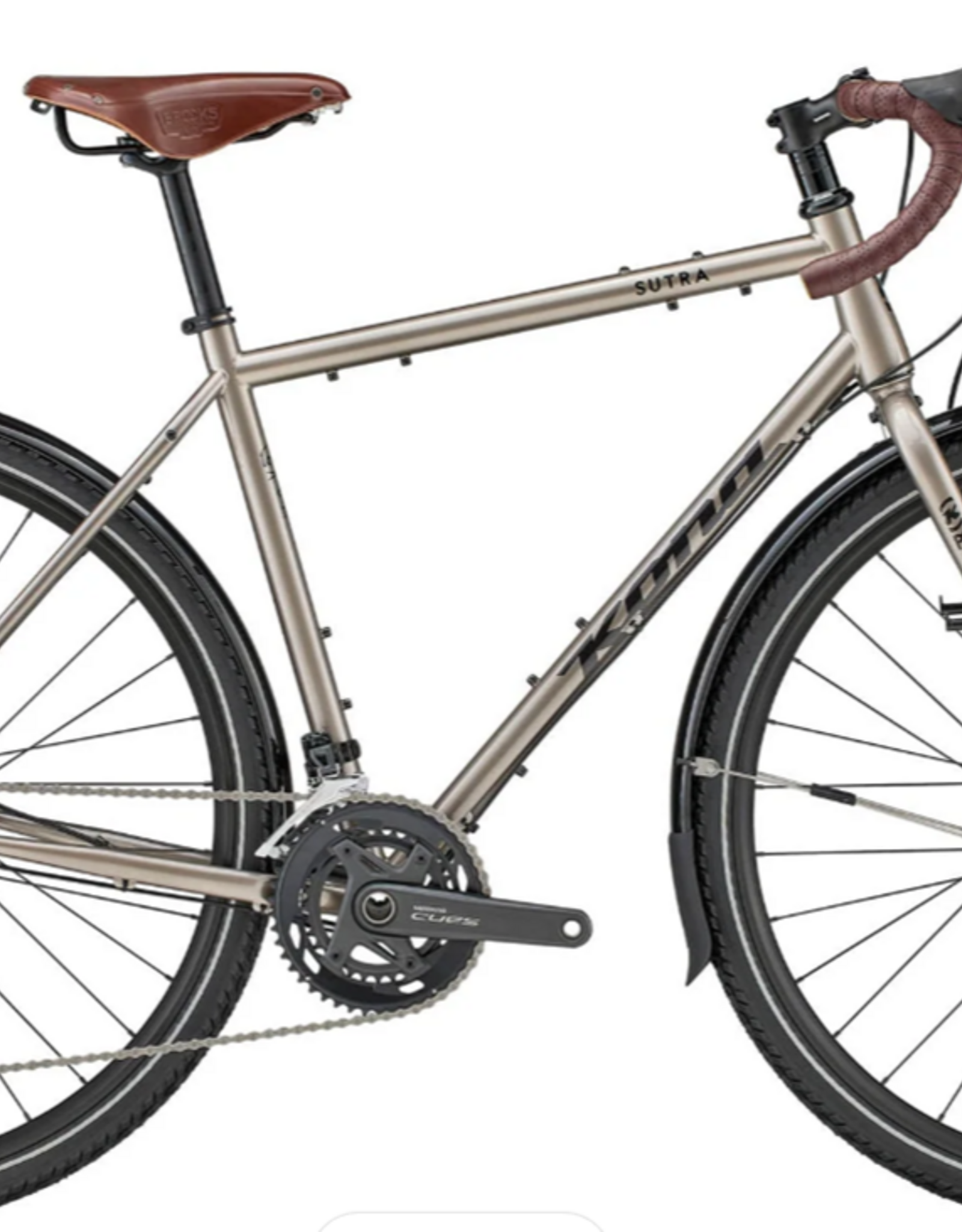

Kona Sutra Road Touring Bicycle w/Shimano CUES
| Availability: | In stock (1) |
The Sutra is a steel touring bike with an analog soul in a digital world. Its Kona Cromoly frame delivers the smooth, steady ride that makes long days and loaded miles feel right, while a Brooks saddle, full fenders, integrated controls, and a Tubus low-rider front rack leave it ready for the road straight out of the box. It’s a modern take on a classic—equally at home crossing the city, crossing the continent, or stretching a short trip into a full world tour. Load the bags, drop the needle, and take the long way around. No algorithm required.
Geometry
| Size | 48 | 50 | 52 | 54 | 56 | 58 | |
| 1 | ST Length | 480 | 500 | 520 | 540 | 560 | 580 |
| 2 | TT Length | 523 | 538 | 555 | 571 | 588 | 605 |
| 3 | Reach | 375 | 380 | 385 | 390 | 395 | 400 |
| 4 | Stack | 551 | 570 | 591 | 610 | 632 | 651 |
| 5 | Standover | 752 | 770 | 794 | 817 | 835 | 854 |
| 6 | HT Angle | 70.5 | 70.5 | 70.5 | 70.5 | 70.5 | 70.5 |
| 7 | HT Length | 105 | 125 | 150 | 170 | 195 | 215 |
| 8 | ST Angle | 75.0 | 74.5 | 74.0 | 73.5 | 73.0 | 72.5 |
| 9 | CS Length | 445 | 445 | 445 | 445 | 445 | 445 |
| 10 | BB Drop | 74 | 74 | 72 | 72 | 70 | 70 |
| 11 | BB Height | 281 | 281 | 283 | 283 | 285 | 285 |
| 12 | Wheelbase | 1036 | 1047 | 1061 | 1073 | 1086 | 1098 |
| 13 | Front Center | 602 | 613 | 626 | 638 | 651 | 662 |
| 14 | Fork Length | 415 | 415 | 415 | 415 | 415 | 415 |
| 15 | Fork Offset | 50 | 50 | 50 | 50 | 50 | 50 |

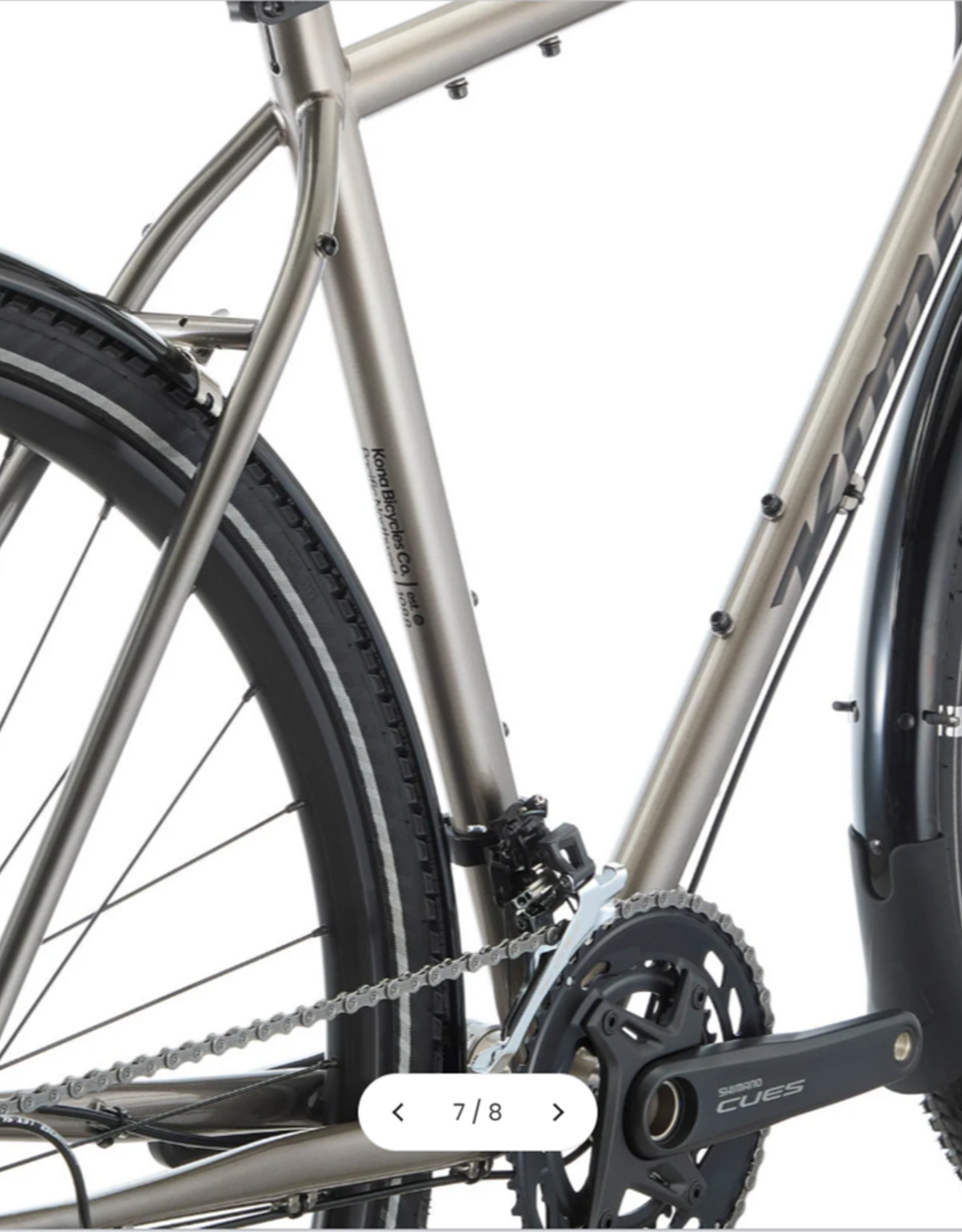

| Frame: | Kona Cromoly Butted |
| Fork: | Kona Project Two Cromoly Disc Touring |

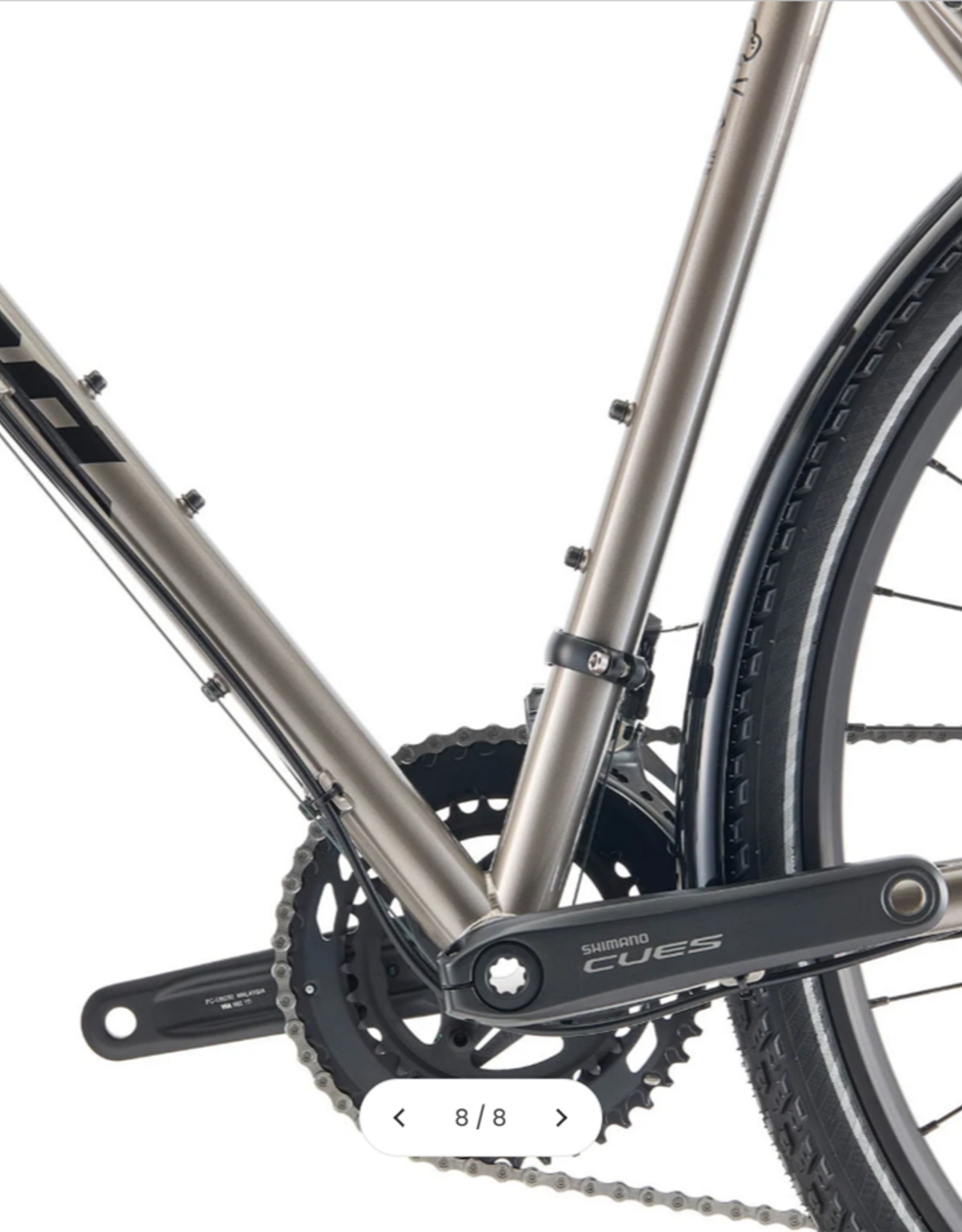

| Crankset: | Shimano CUES 6030 32/46t / 48-54 165mm / 56-58 170mm |

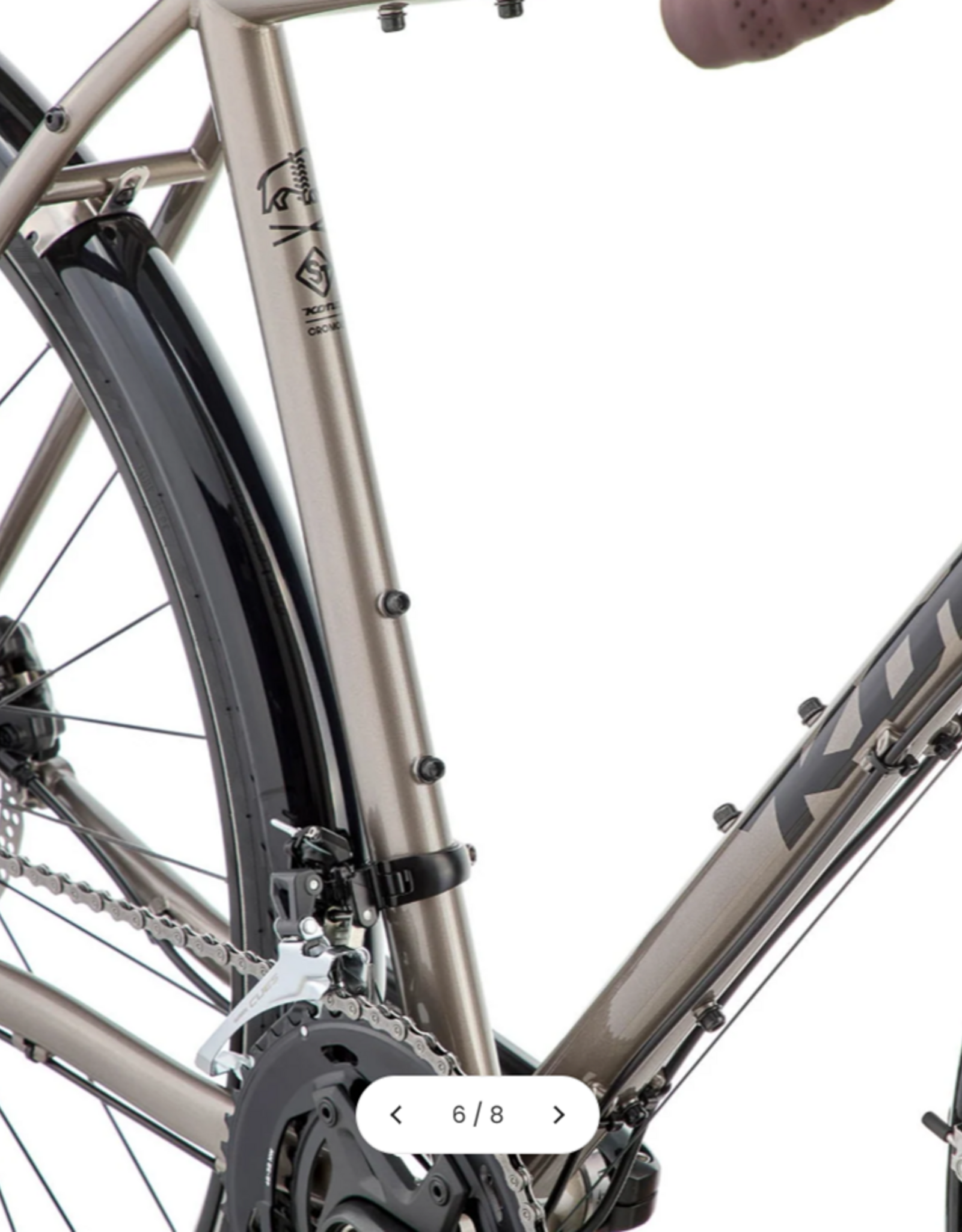

| Derailleur Front: | Shimano CUES 6030 |
| Derailleur Rear: | Shimano CUES 6020 |
| Cassette: | Shimano CUES LG400 11-39t 10spd |
| Shifters: | Shimano CUES 6030 |
| Brakes: | Shimano CUES 6030 Hydraulic Calipers w/ Shimano 180mm 6B Rotors w/ Shimano CUES 6030 Hydraulic Shifters |
| Wheels/Rims: | WTB i25 rims w/ Stainless 2.0mm Black Spokes w/ Formula 12x100mm & Formula 12x142mm HG Hubs |
| Tires: | Schwalbe Marathon Mondial 700x40c |

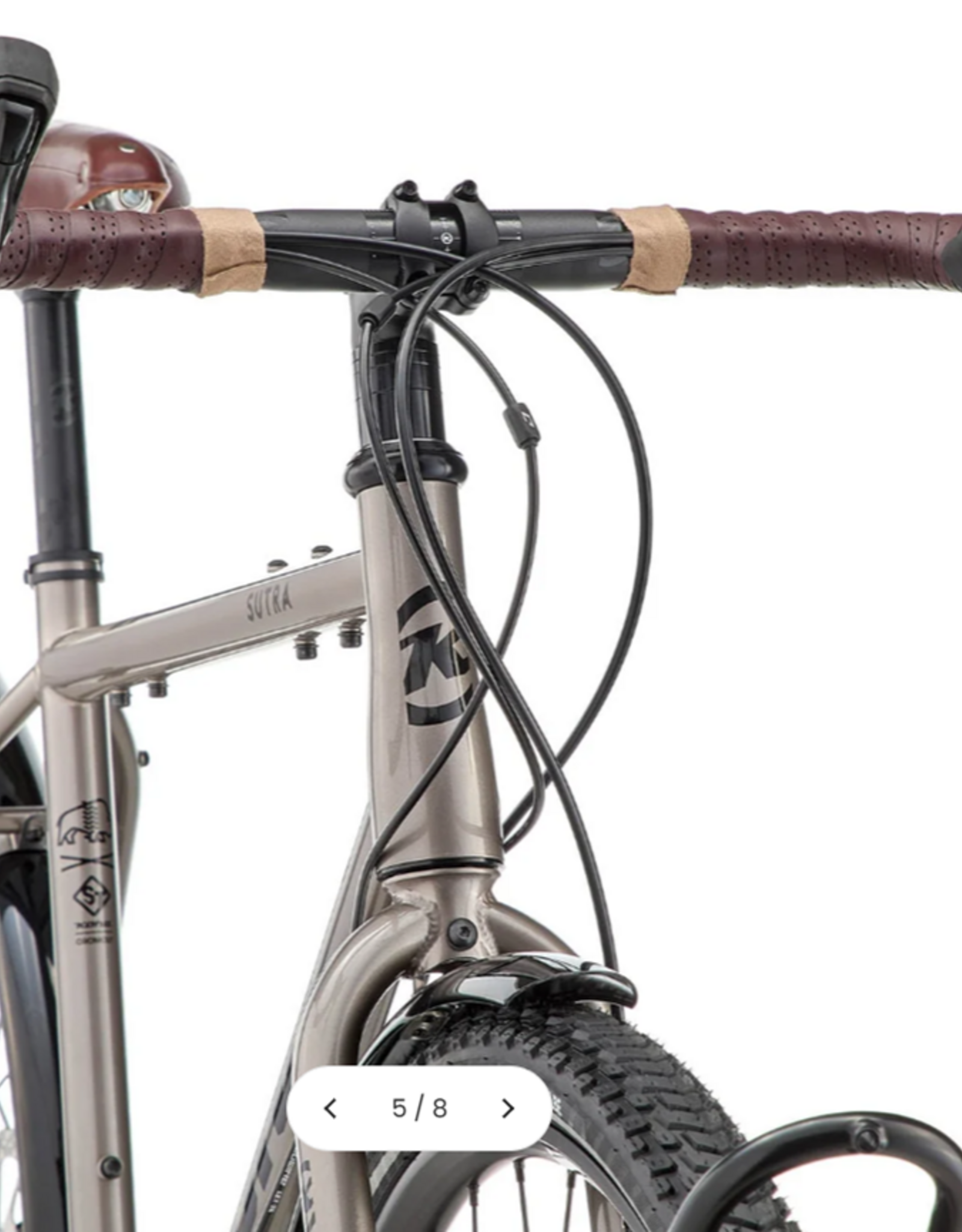

| Handlebar: | Kona Gravel Dropbar 31.8mm / Width 48 42cm / 50-52 44cm / 54 46cm / 56-58 48cm |
| Stem: | Kona 31.8mm / Rise 6º / Length 48-52 60mm / 54-56 70mm / 58 80mm |

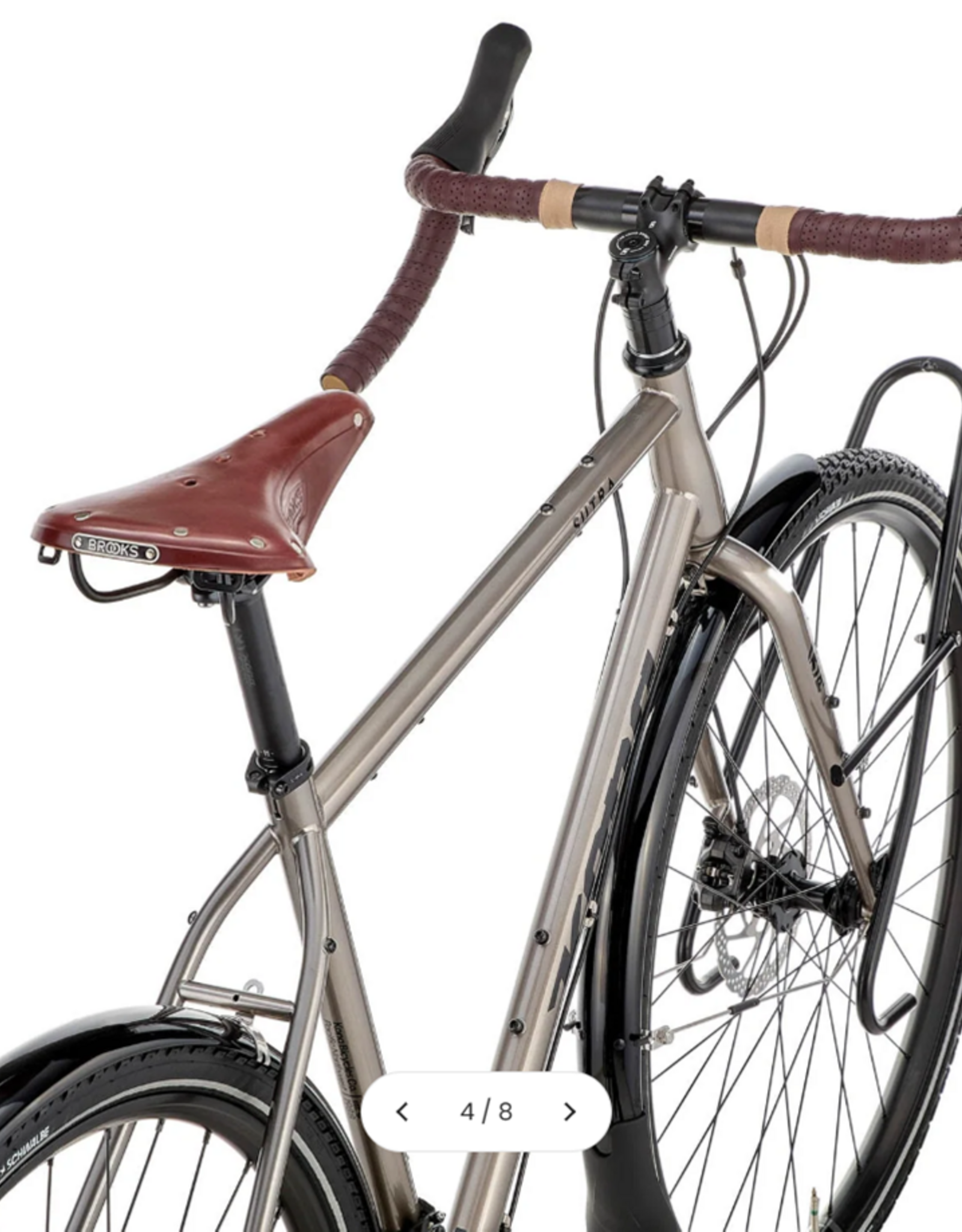

| Saddle: | Brooks B17 Leather Brown |
| Seatpost: | Kona w/Offset 27.2mm / 48-52 350mm / 54-58 375mm |
| Color: | Gloss Metallic Nickel w/ Charcoal Decals |
| Misc: | Fenders w/ Mudflaps / Tubus Tara Big Apple Front Rack |
