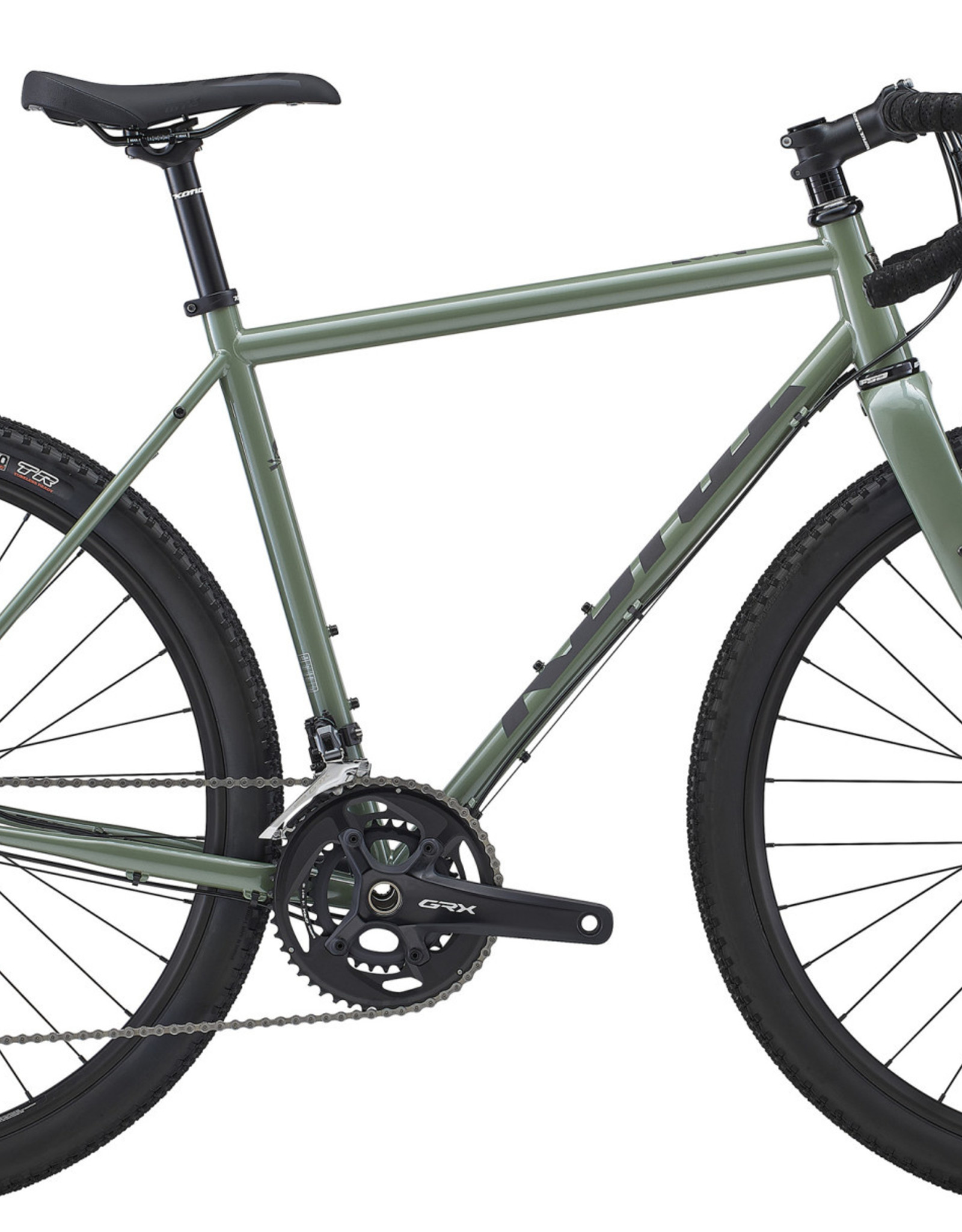

Kona Rove LTD (Gravel/Adventure) Bicycle
| Availability: | In stock (1) |
Picture sunny gravel roads lined with fields, pastures, fences, and views for days. That’s where this bike is home. The Rove LTD is everything you’d expect from a bike made for going the distance across mixed surfaces. This gorgeous Butted Cromoly frame features a tapered headtube and our Libre Full Carbon flat mount disc fork. You can’t find a bike this pretty with spec this nice at this price. It’s a bike afficionado’s value bike. The Rove LTD is the perfect blend of function and aesthetics and is ready for your next adventure...
Geometry mm
| Size | 48 | 50 | 52 | 54 | 56 | 58 | |
| 1 | ST Length | 480 | 500 | 520 | 540 | 560 | 580 |
| 2 | TT Length | 515 | 531 | 546 | 562 | 578 | 598 |
| 3 | Reach | 372 | 378 | 383 | 388 | 392 | 400 |
| 4 | Stack | 532 | 551 | 570 | 588 | 607 | 626 |
| 5 | Standover | 735 | 754 | 775 | 794 | 815 | 834 |
| 6 | HT Angle | 70.5 | 70.5 | 71.0 | 71.0 | 71.5 | 71.5 |
| 7 | HT Length | 90 | 110 | 130 | 150 | 170 | 190 |
| 8 | ST Angle | 75.0 | 74.5 | 74.0 | 73.5 | 73.0 | 72.5 |
| 9 | CS Length | 435 | 435 | 435 | 435 | 435 | 435 |
| 10 | BB Drop | 74 | 74 | 72 | 72 | 70 | 70 |
| 11 | BB Height | 268 | 268 | 270 | 270 | 272 | 272 |
| 12 | Wheelbase | 1016 | 1029 | 1036 | 1048 | 1054 | 1068 |
| 13 | Front Center | 592 | 604 | 612 | 623 | 628 | 643 |
| 14 | Fork Length | 400 | 400 | 400 | 400 | 400 | 400 |
| 15 | Fork Offset | 50 | 50 | 50 | 50 | 50 | 50 |

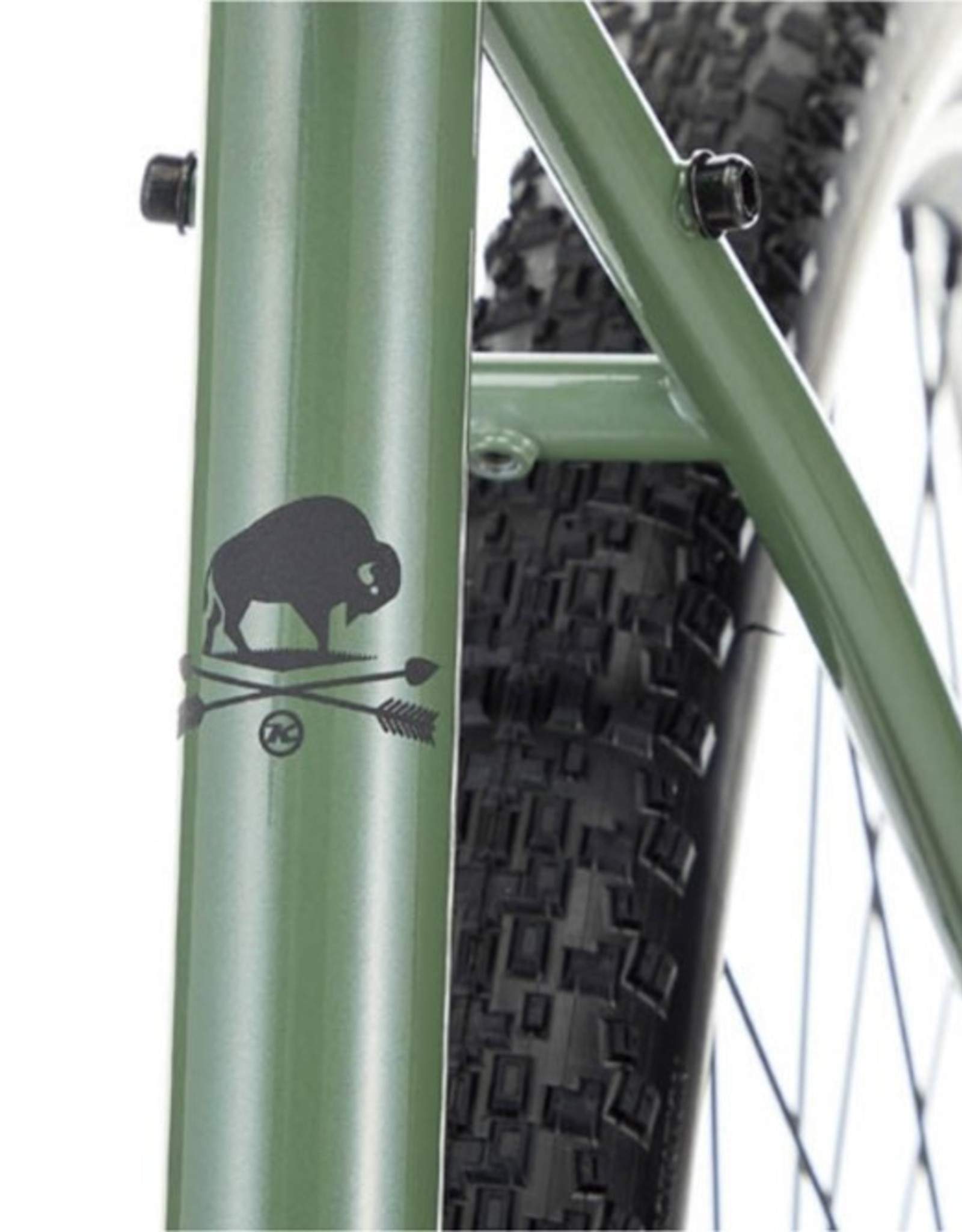

| Frame: | Kona Butted Cromoly |

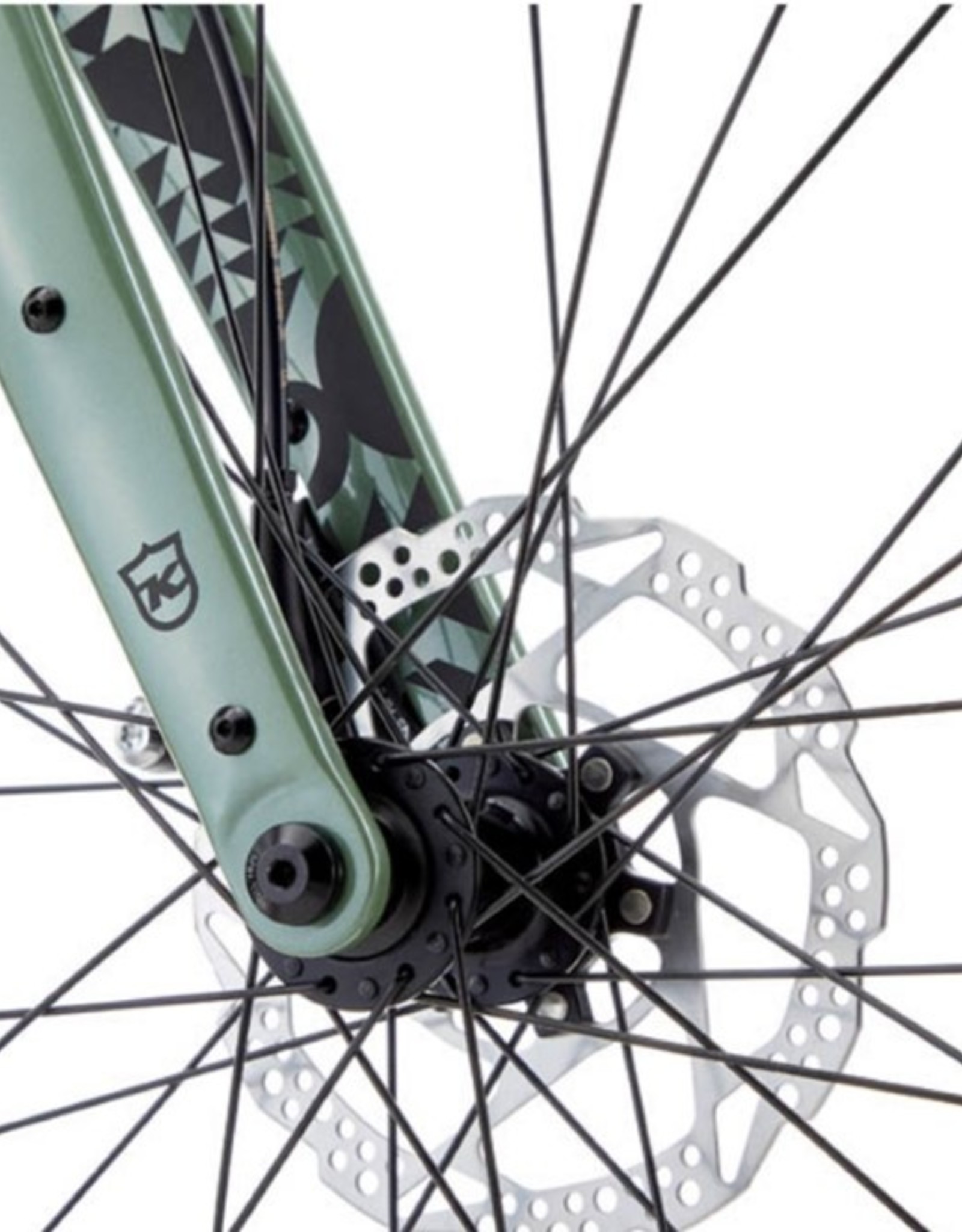

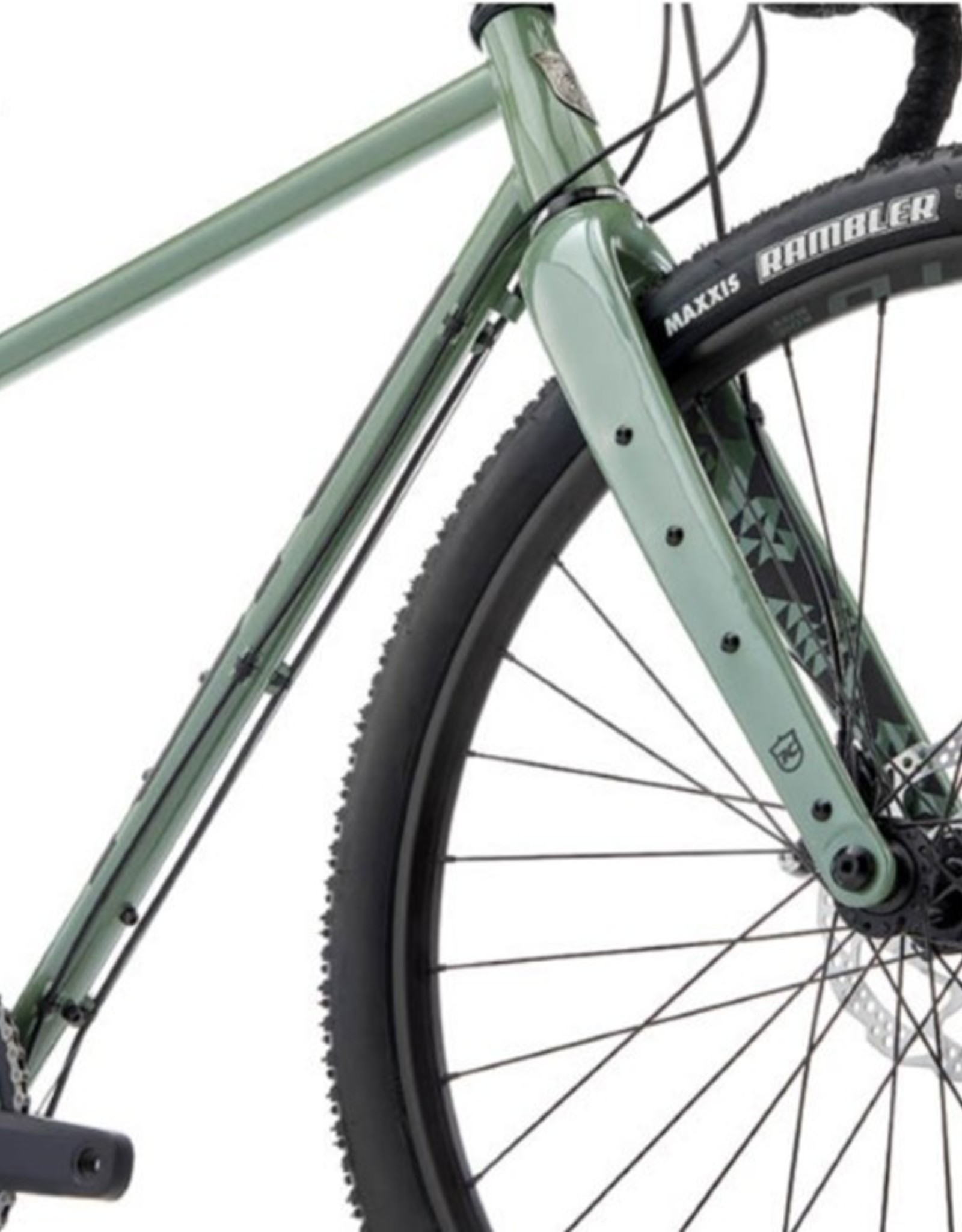

| Fork: | Kona Libre Full Carbon Flat Mount Disc (Blue) Kona Rove Verso Full Carbon Flat Mount Disc (Green) |

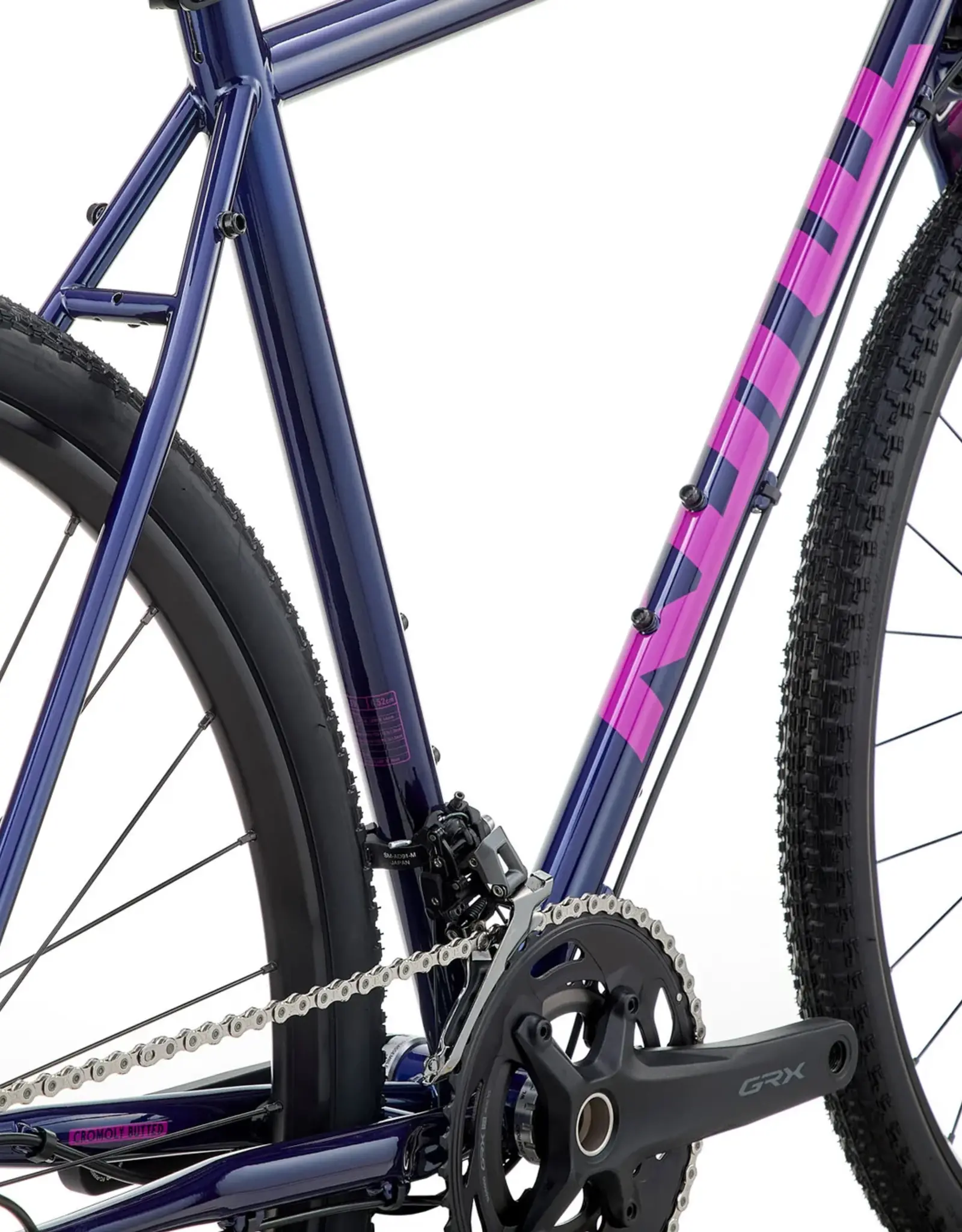

| Crankset: | (Blue 46x30t) Deore or (Green) Shimano GRX 810 w/31/48t |

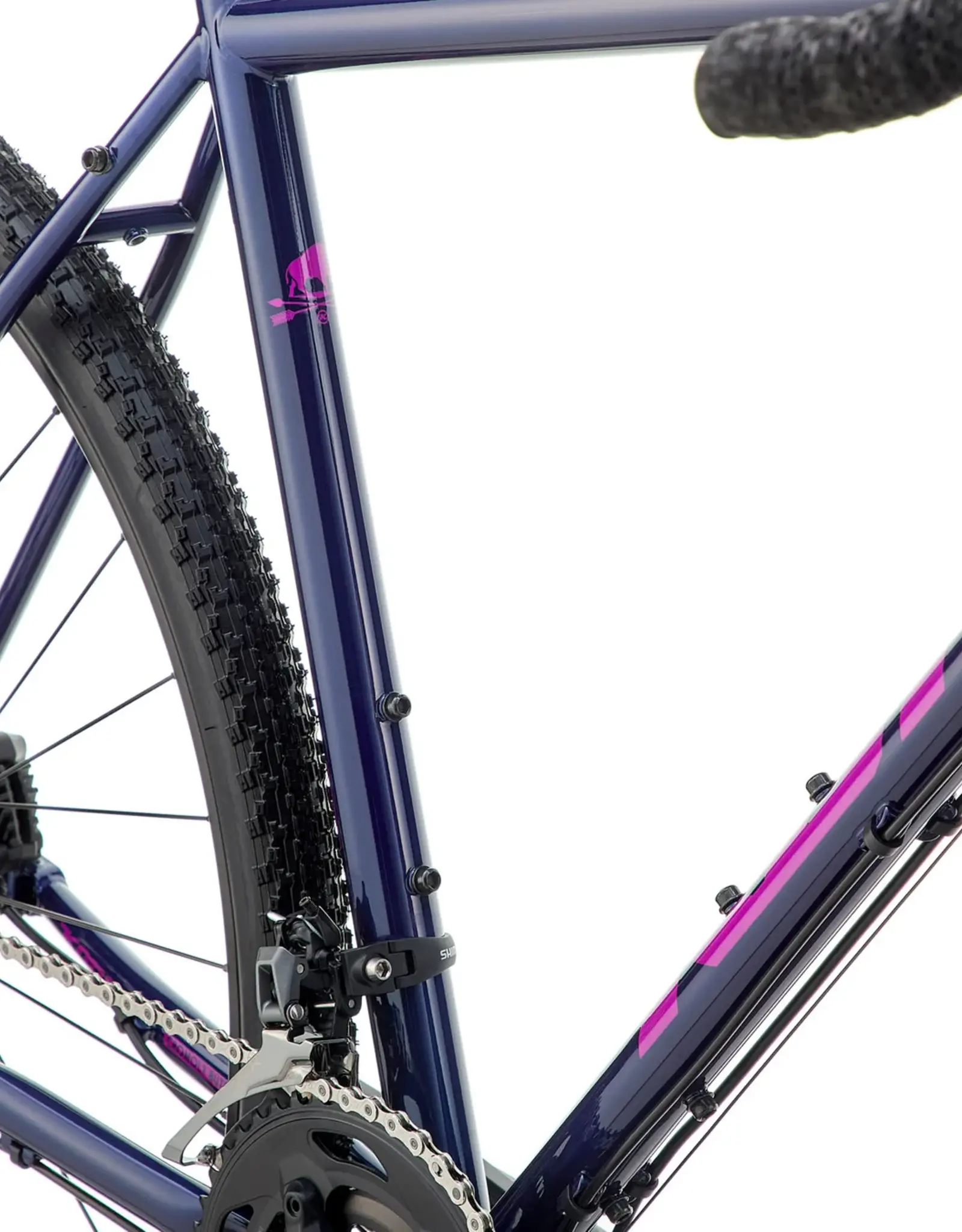

| Derailleur Front: | (Blue) Shimano GRX2x (46/30t) or (Green) Shimano GRX 810 |
| Derailleur Rear: | Shimano GRX |
| Cassette: | (Blue) Shimano 105 11-36t 12spd or (Green) Shimano 105 11-34t |

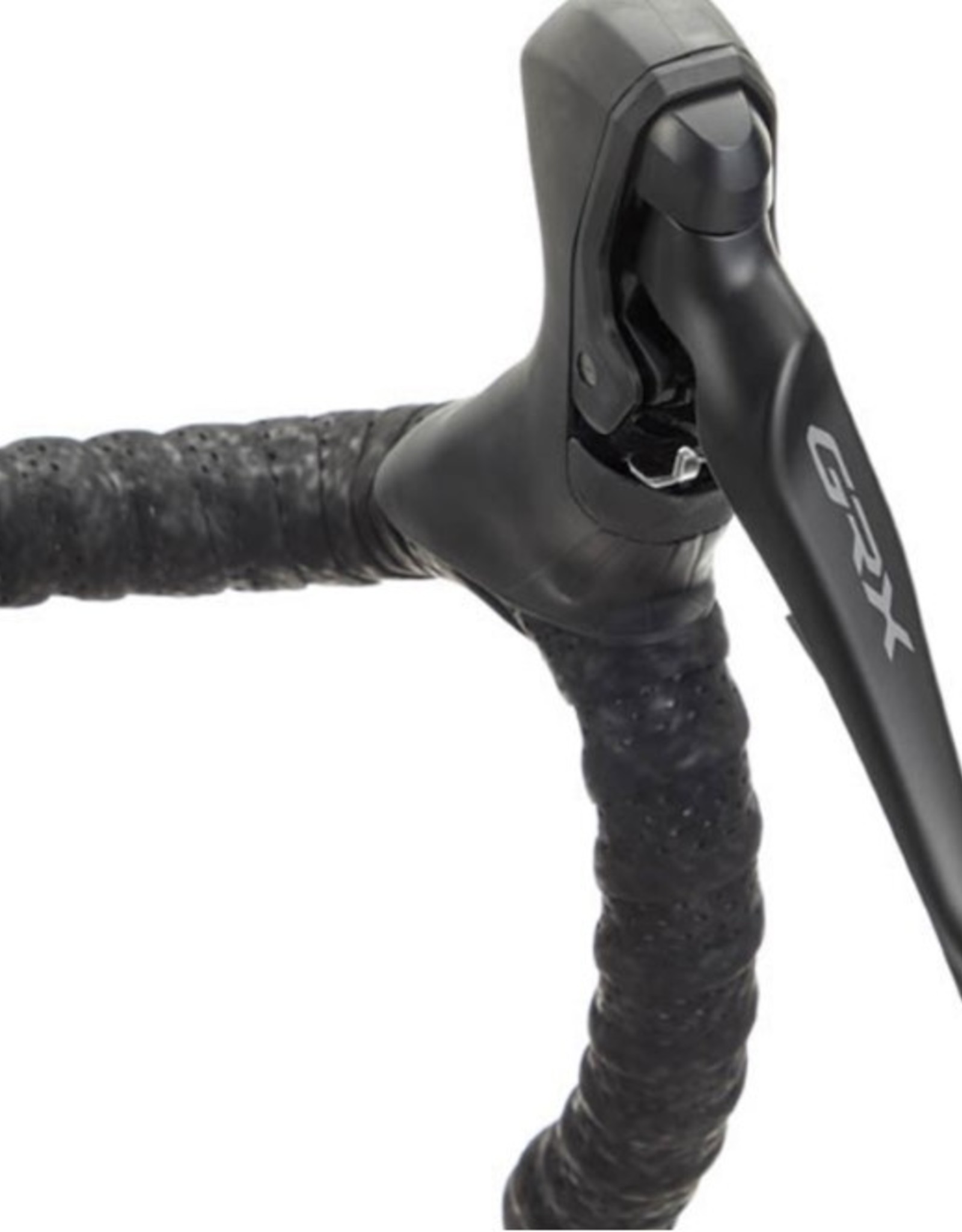

| Shifters: | Shimano GRX |
| Brakes: | Shimano levers w/Shimano GRX calipers w/Shimano CL 160mm (centerlock) |
| Wheels/Rims: | WTB KOM Team i23 TCS w/Shimano centerlock or Formula 105 100x12mm (fr) 105 142x12mm (rr) |
| Tires: | (Blue) Maxxis Rambler EXO TR 700x40c or (Green) TR 650x47c |

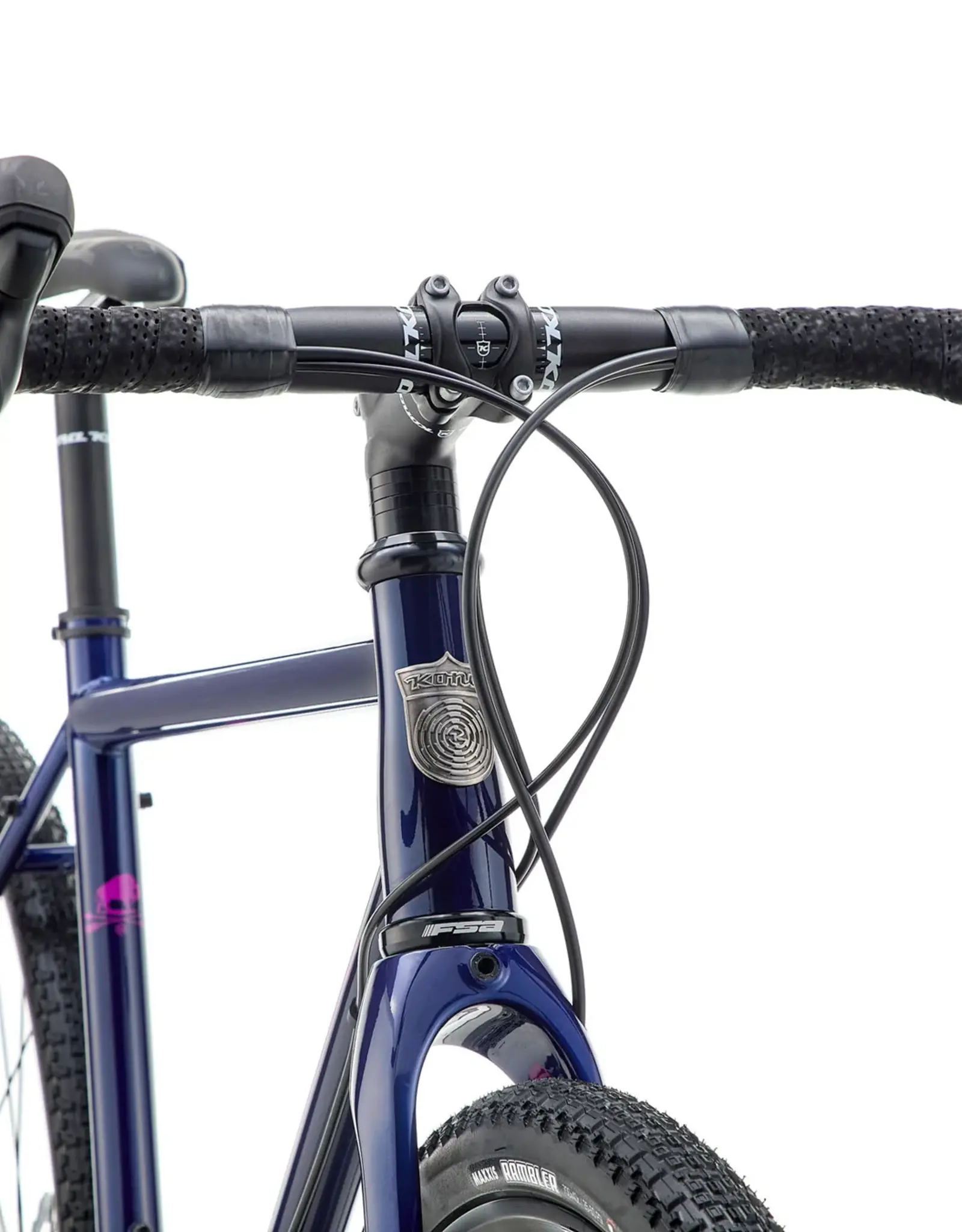

| Handlebar: | Kona Road Drop Bar |
| Stem: | Kona Road Deluxe |
| Saddle: | WTB Volt |
| Seatpost: | Kona Deluxe Thumb w/Offset 27.2mm |

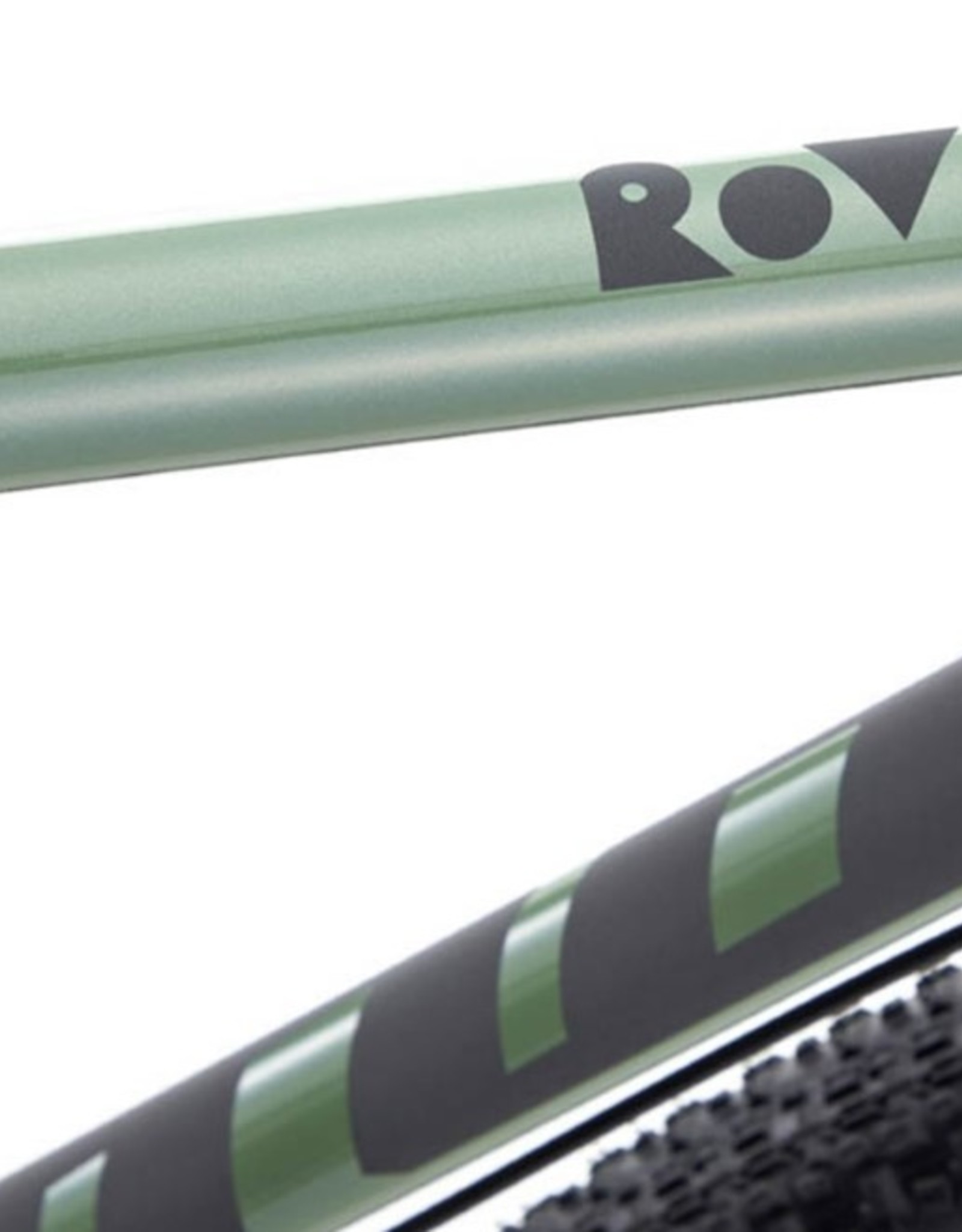

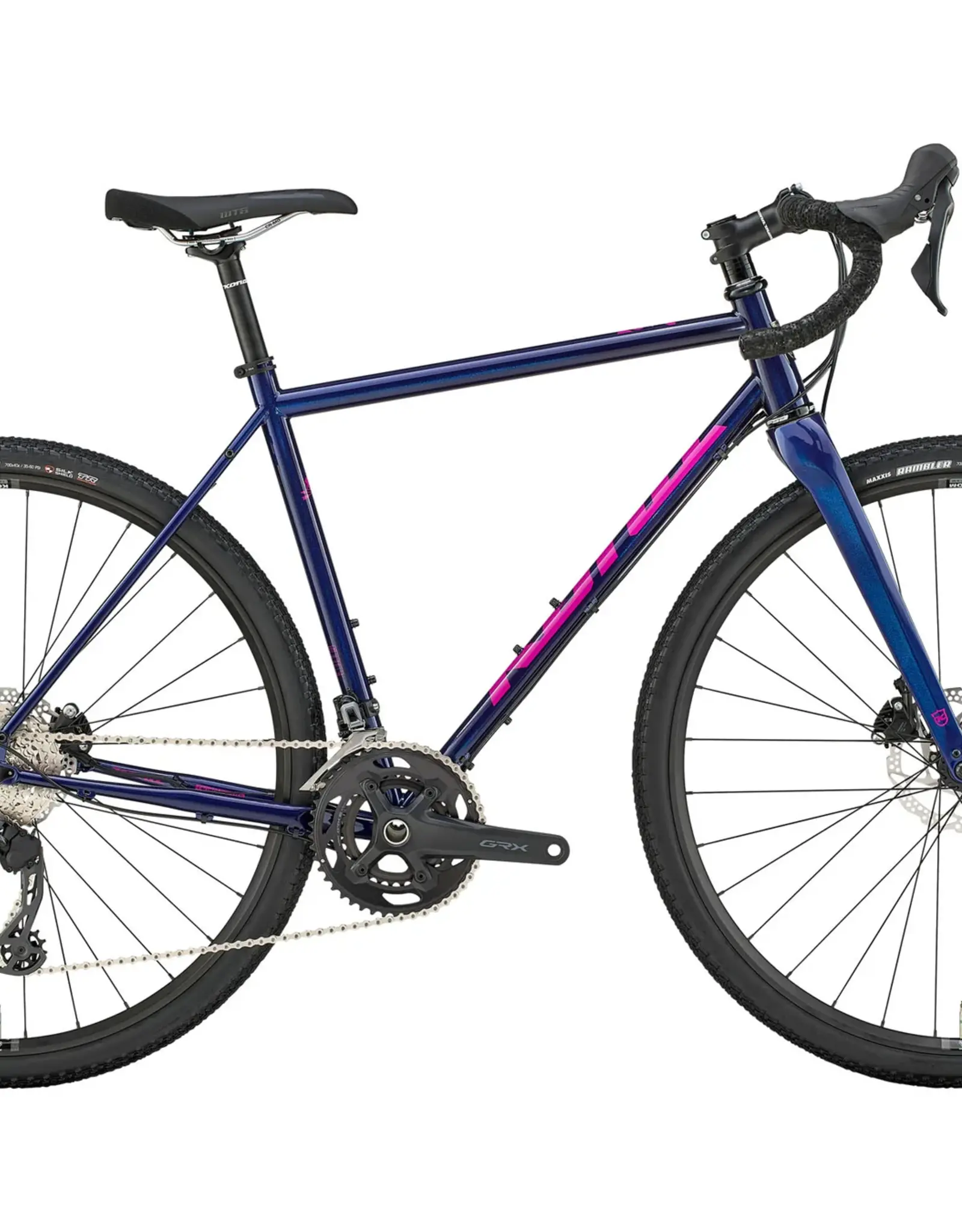

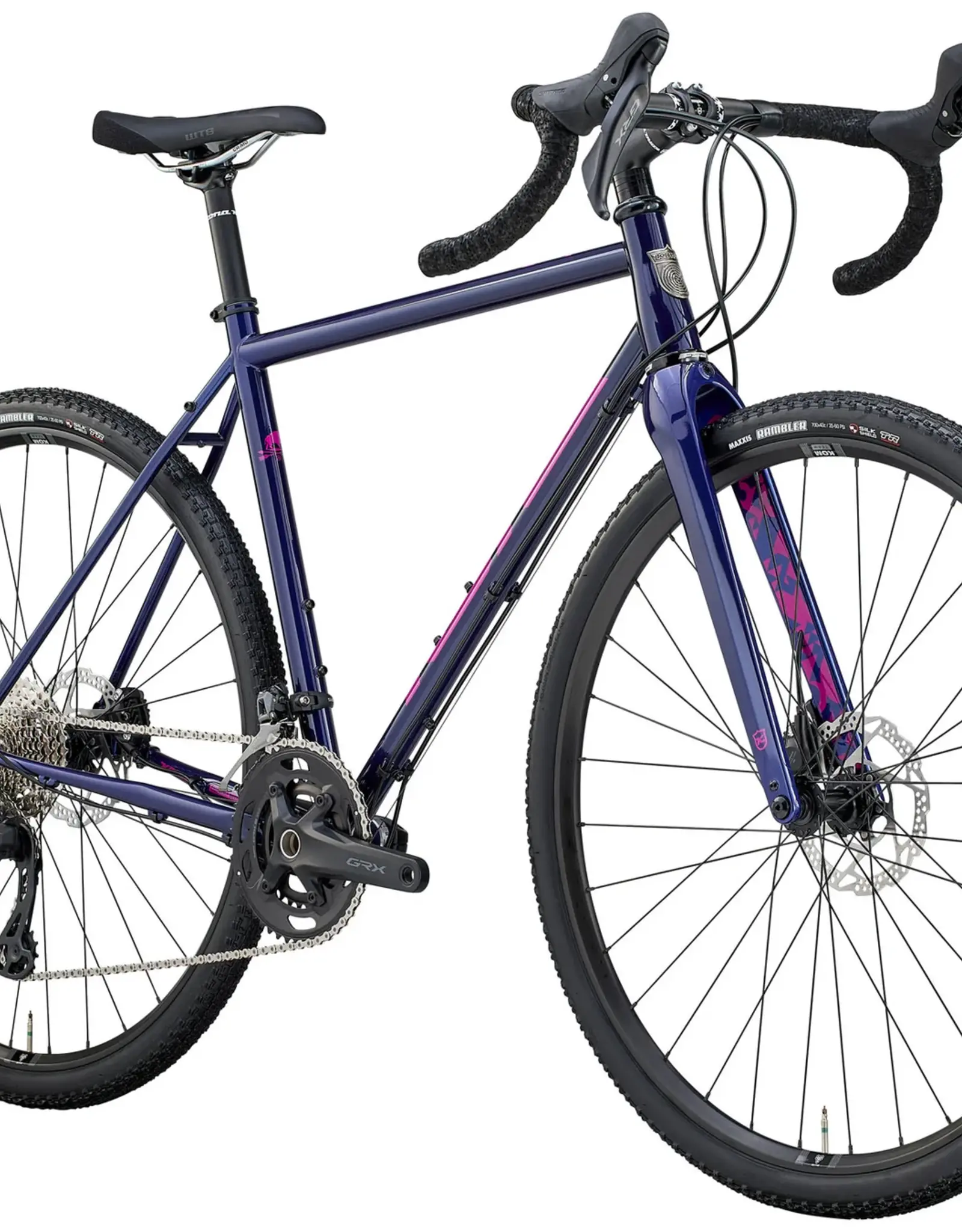

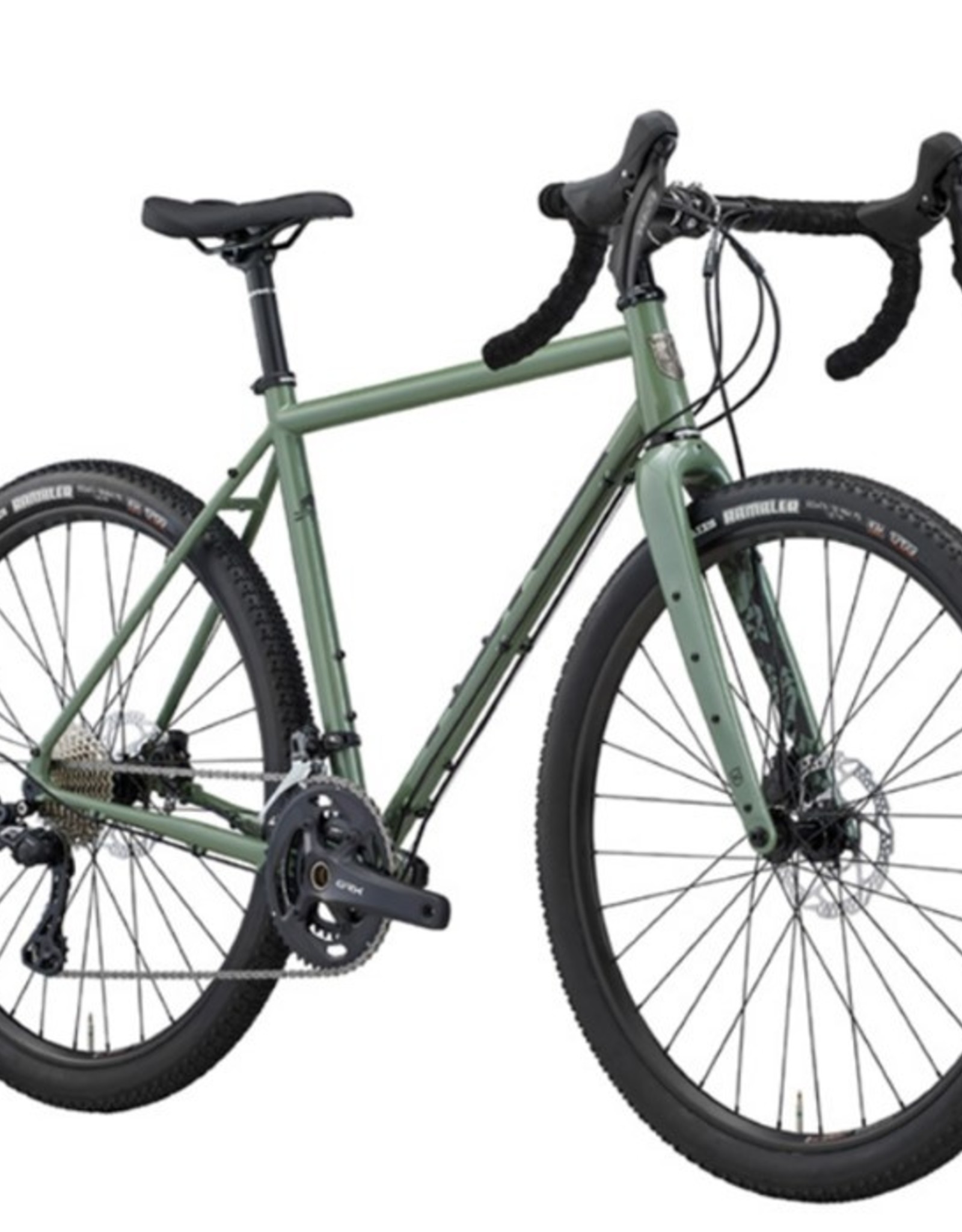

| Color: | Gloss Metallic Gentian Blue w/ Dark Orchid Decals or Gloss Metallic Green w/ Satin Lead Decals |
| Misc: |
